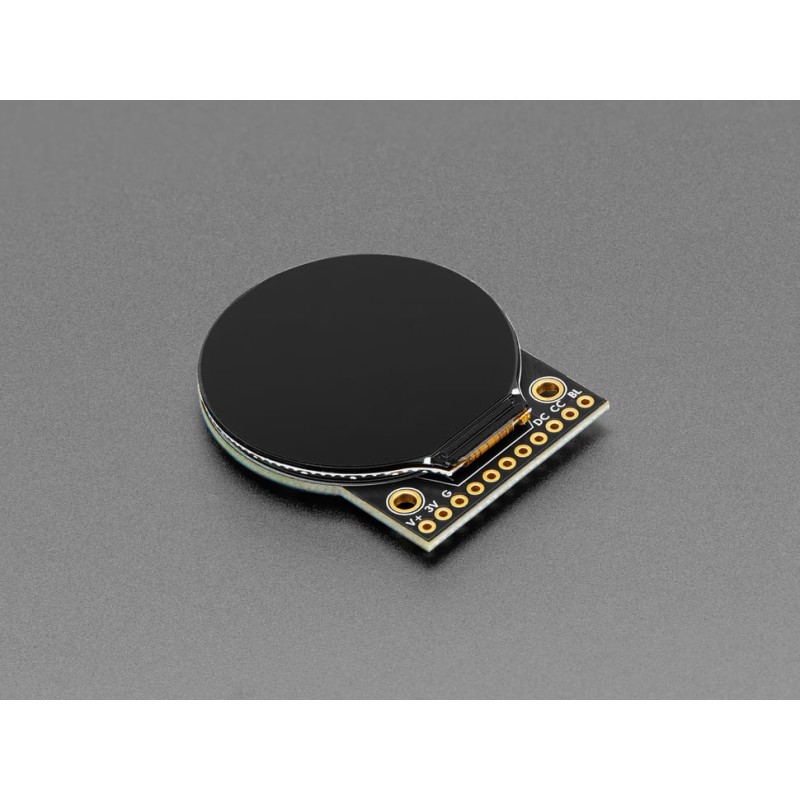

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Side view
ID: 1196820
zł88.24
Tax included

zł71.74 tax excl.

A high-resolution, 240x240 pixel circular display ideal for smartwatch, wearable device, and small interface projects. The module supports an SPI interface, has a built-in 3.3V regulator, level converter, and microSD card reader for loading graphics. The display offers a wide viewing angle of up to 80° and vivid colors. Compatible with Arduino, Raspberry Pi, and other microcontrollers, it's easy to integrate. Adafruit 6178

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The 1.28" 240x240 Round TFT LCD Display is a unique, circular TFT display with a 1.28" diagonal, ideal for projects such as smartwatches, small electronic devices, or portable interfaces. The display offers high 240x240 pixel RGB resolution with a wide viewing angle, ensuring clear and vibrant colors even up to an 80° angle. Thanks to the SPI interface and built-in memory, it can be used with virtually any microcontroller, even those with limited pins and memory.

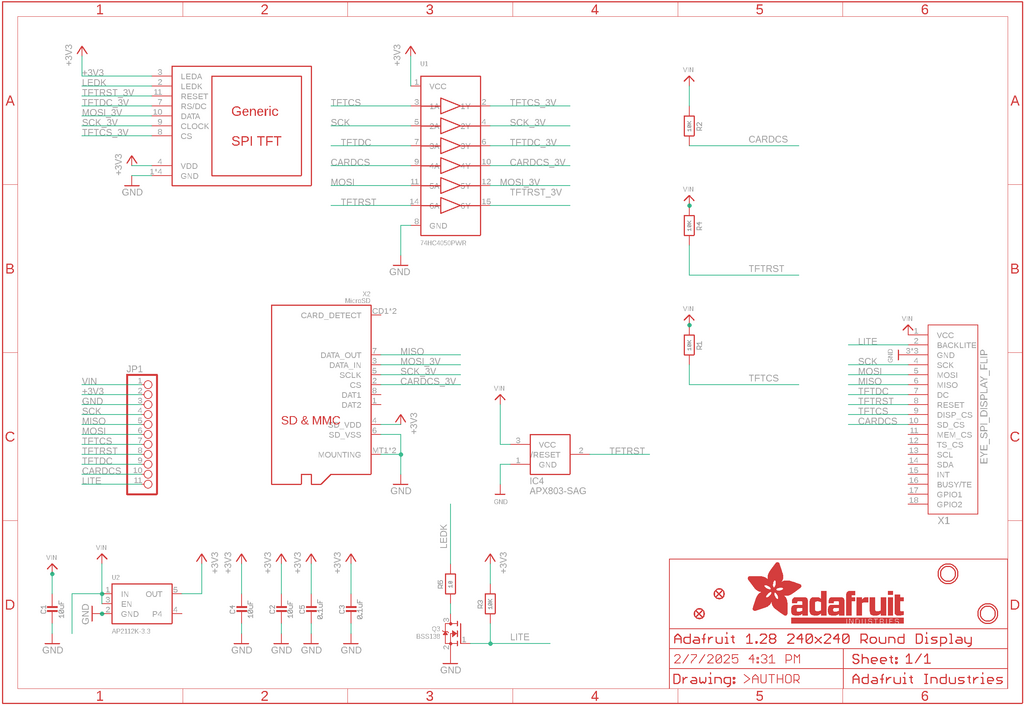

The display uses the GC9A01A driver, compatible with the popular ST7789, and the included Arduino library provides full support for drawing pixels, lines, shapes, text, and bitmaps. The module features a 3.3V LDO voltage regulator, an automatic reset circuit, and a level shifter for 3.3V/5V power and logic. Additionally, it includes a microSD card reader for loading color bitmaps from FAT16/FAT32 cards (microSD card not included).

The module design simplifies mounting with a 1x16 connector and two mounting holes. The display has low power consumption, making it suitable for portable devices. It is lightweight and compact, easing integration into tight project spaces. With high brightness and vivid colors, the image remains readable even in bright environments. It supports both static images and dynamic animations, and allows easy graphics loading from microSD. Fully compatible with Arduino, Raspberry Pi, and other SPI-enabled devices, it is a versatile solution for a variety of electronic projects.

Features

  • TFT LCD Display: 1.28", 240x240 pixels, 16-bit color
  • Pixel density: 220 ppi
  • Wide viewing angle up to 80°
  • Driver: GC9A01A (ST7789 compatible)
  • Interface: 4-wire SPI
  • Built-in 3.3V LDO voltage regulator
  • Supports 3.3V/5V power and logic
  • Built-in microSD card slot (FAT16/FAT32)
  • 1x16 connector
  • Mounting holes: 2 x 2.5mm (distance 22.8mm)
  • Screen dimensions: 38.1 x 35.6 mm
  • Total dimensions: 42.4 x 36.2 x 5.4 mm
  • Weight: 8.3 g

Kit contains

  • Adafruit 1.28" TFT LCD GC9A01A module with microSD reader
  • Goldpin connector
1196820

Data sheet

Screen type
TFT
Diagonal (inch)
1,28
Resolution
240 x 240 px
Interface
SPI
Touch
No
