STEMMA QT INA238 DC Current Voltage Power Monitor - INA238 power monitoring module

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±30 A range with galvanic isolation. It features a high-sensitivity analog VOUT output with a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5445

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±30 A range with galvanic isolation. It features an analog VOUT output with a sensitivity of 66.7 mV/A and a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance (~1.6 mΩ) minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5443

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±10 A range with galvanic isolation. It features an analog VOUT output with a sensitivity of 200 mV/A and a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance (~1.6 mΩ) minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5442

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±30 A range with galvanic isolation. It features an analog VOUT output with a sensitivity of 44 mV/A and a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance (~1.6 mΩ) minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5441

This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. The version comes with soldered screw terminals and a 240 Vrms jumper. Pololu 5412

This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. The version comes with soldered screw terminals. Pololu 5411

This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. Pololu 5410

The ACS72981 current sensor module uses the Hall effect to precisely and safely measure DC current while providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes power loss and offers a fast response time of less than 2 µs. Pololu 5284

The ACS72981 current sensor module uses the Hall effect to precisely and safely measure DC current while providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes power loss and offers a fast response time of less than 2 µs. Pololu 5264

Module with INA237 sensor designed for power monitoring. Allows measurement of voltages up to 85 VDC and current up to 10 A. Uses a 16-bit ADC for precise and accurate readings available via the I2C interface. Adafruit 6340

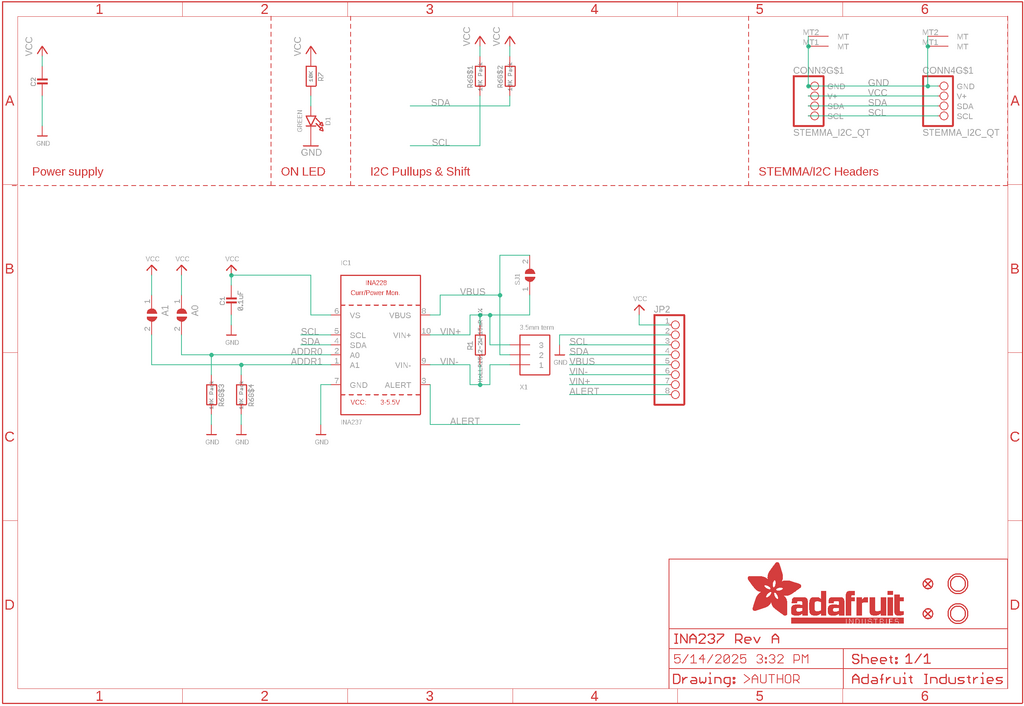

This module provides precise current, voltage, and power measurement in DC systems up to 85V and 10A. It features a 16-bit ADC, fast alarm response, and an I2C interface for easy integration with Arduino, Raspberry Pi, and CircuitPython. The module supports both high- and low-side measurement and automatic power calculation, and the STEMMA QT connector allows for quick, solderless installation. Adafruit 6349

Allegro\'s TMR sensor module enables precise, non-contact current measurement without breaking the circuit. It offers high sensitivity, low power consumption, an analog output proportional to the magnetic field, and a threshold detection (FLAG) function. Its compact design, AC/DC support, and easy installation make it ideal for energy-efficient and safe current monitoring systems. Pololu 5355

A non-contact magnetic field sensor with a range of ±1.5 mT and a sensitivity of 1500 mV/mT at 5 V. It offers an analog ratiometric output and a flag signal activated when field thresholds are exceeded. It features a fast response time (20 µs) and a 30 kHz bandwidth with a built-in RC filter. Its compact design, AC/DC capability, and easy mounting make it ideal for energy-efficient and safe current monitoring systems. Pololu 5352

A modern current sensor with a measurement range of -40 A to +40 A, combining the Hall effect with an inductor, allows for precise measurements of both DC and AC components up to 5 MHz. Its lightning-fast response time and low path resistance make it ideal for motor control systems, power converters, and protection systems. Pololu 5234

A modern current sensor with a measurement range of -40 A to +40 A, combining the Hall effect with an inductor, allows for precise measurements of both DC and AC components up to 5 MHz. Its lightning-fast response time and low path resistance make it ideal for motor control systems, power converters, and protection systems. Pololu 5231

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±30 A range with galvanic isolation. It features a high-sensitivity analog VOUT output with a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5457
