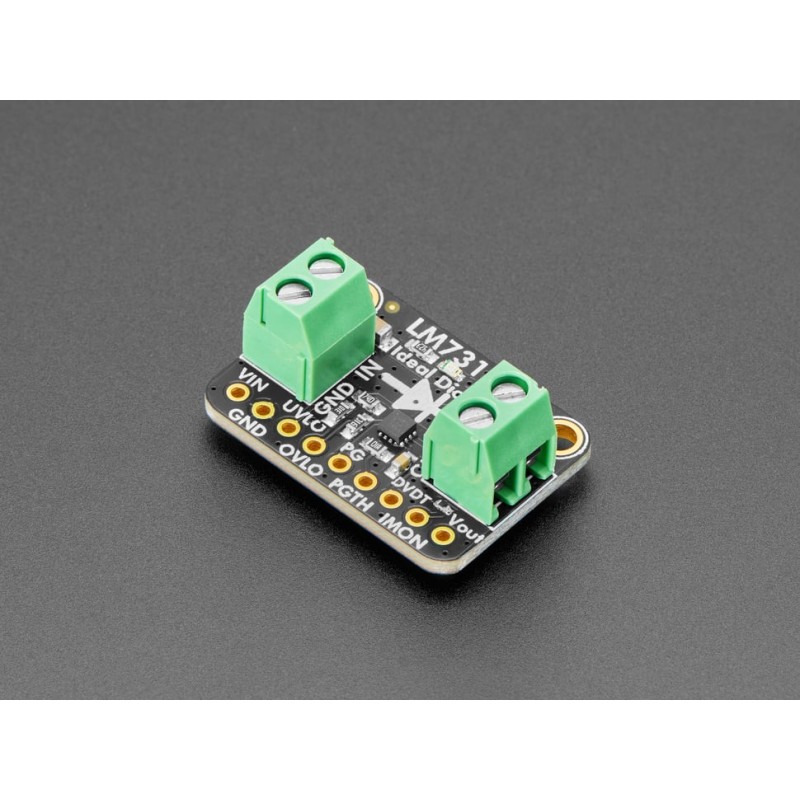

Main view
search
  • Main view
  • Top view
  • Side view
  • Bottom view
ID: 1199908
zł24.97
Tax included

zł20.30 tax excl.

A protection module that acts like a perfect diode, allowing current to flow in only one direction with minimal energy loss. It supports voltages from 2.7V to 23V and currents up to 5A, providing effective protection against overvoltages and reverse current. It features an IMON output for current monitoring and a Power Good indicator to indicate correct operation. Its screw terminals and compact design make it ideal for battery-powered projects. Adafruit 6359

24h
Available
Available quantity: 5
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

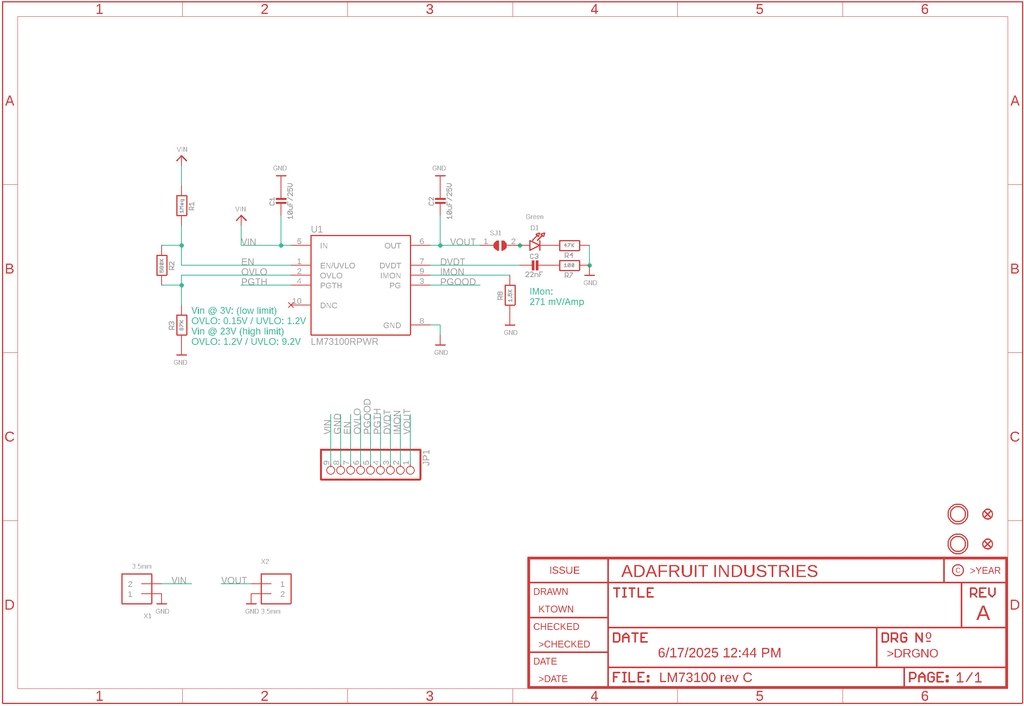

Description

LM73100 Ideal Diode is a high-performance, modern protection module designed for applications where energy efficiency and circuit safety are essential. The device acts as an ideal diode, allowing current to flow in only one direction, but without the energy losses typical of standard silicon diodes. Instead of a typical 1 V voltage drop, the integrated circuit with two FET transistors features an ultra-low RDS(on) resistance of only 30 mΩ, which results in a drop of just about 150 mV at 5A current. This makes the module perfect for projects powered by Li-Poly batteries or solar panels, where every milliamp-hour matters.

The module supports a wide input voltage range from 2.7 V to 23 V DC and can operate with currents up to 5 A, making it a versatile solution for various electronic applications. The built-in FETs are connected back-to-back, providing effective reverse current blocking and high reliability. Additionally, the circuit offers fast surge and inrush current protection with a response time of only 500 ns. Thanks to the built-in IMON output, users can easily monitor current consumption without external meters. A green LED indicator shows the correct current flow direction, simplifying diagnostics and testing.

The manufacturer also ensured user convenience – the module features screw terminals for solder-free installation and gold-plated 2.54 mm solder pads for use with a breadboard. Additional safety features, such as thermal protection and a “Power Good” function, increase operational safety in demanding conditions. Its compact size makes it easy to integrate into any power system, such as IoT devices, measurement systems, or portable electronic projects.

Features

  • Input voltage range: 2.7 V to 23 V DC
  • Maximum allowable voltage: 28 V
  • Negative voltage tolerance: up to -15 V
  • Low on-resistance: RON = 28.4 mΩ (typ.)
  • Maximum operating current: up to 5 A
  • Ideal diode function with reverse current blocking
  • Fast surge response: 1.2 μs (typ.)
  • Fast inrush current response: 500 ns (typ.)
  • “Latch-off” function after fault detection
  • Load current monitoring output (IMON)
  • Current monitoring range: 0.5 A – 5.5 A
  • IMON measurement accuracy: ±15% (for IOUT ≥ 1 A)
  • Built-in thermal protection
  • Power Good (PG) status indicator
  • Screw terminals for solder-free installation
  • Green LED indicator showing correct current direction
  • Compatible with breadboards (2.54 mm pitch)
  • Dimensions: 25.6 × 17.6 × 11.9 mm

Kit contains

  • Adafruit LM73100 Ideal Diode Breakout Module
  • Goldpin header for optional soldering
1199908
