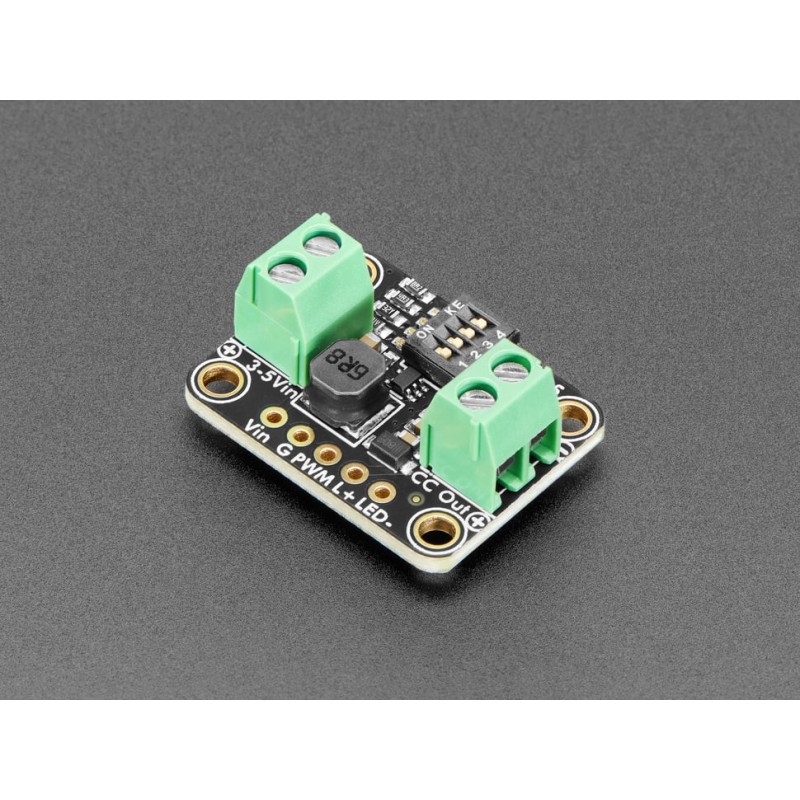

Main view
search
  • Main view
  • Top view
  • Side view
  • Bottom view
ID: 1199913
zł22.69
Tax included

zł18.45 tax excl.

A compact converter designed to drive LEDs in series and parallel circuits. The device generates voltages up to 40V and currents up to 400mA from a 3-5V supply, with the output current adjustable via mini DIP switches. The board features a built-in 1.2A switch, overvoltage protection, and PWM LED dimming. Adafruit 6354

24h
Available
Available quantity: 5
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

TPS61169 Constant Current Boost Converter is an innovative solution for controlling LEDs in both series and parallel configurations. This module can generate voltages up to 40 V and currents up to 400 mA from a 3–5 V power supply. Unlike most standard converters that provide constant voltage, the TPS61169 regulates voltage to achieve a set current, making it ideal for LED applications. It works perfectly with our LED nOOds and filaments, where sometimes 12 V or 24 V is needed at around 200 mA. The module is also suitable for connecting multiple 3 V LEDs in series, where voltage adds up but current remains low (e.g., 25 mA or 50 mA). TPS61169 is commonly used in LED-backlit boards, often driving 5–7 white LEDs in series at about 30 mA.

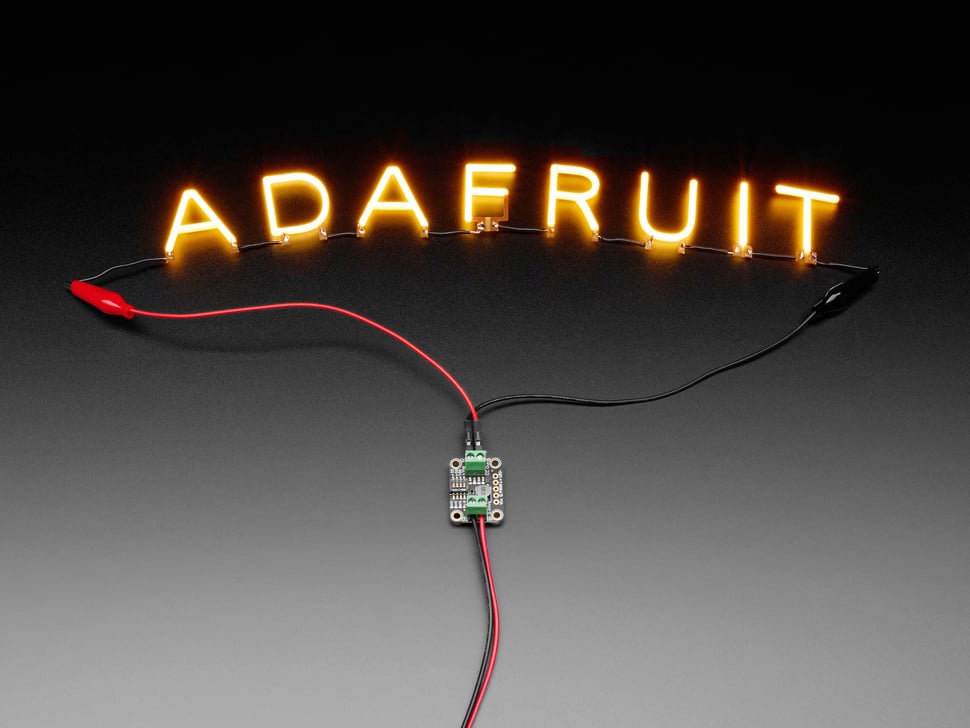

TPS61169 Boost Converter

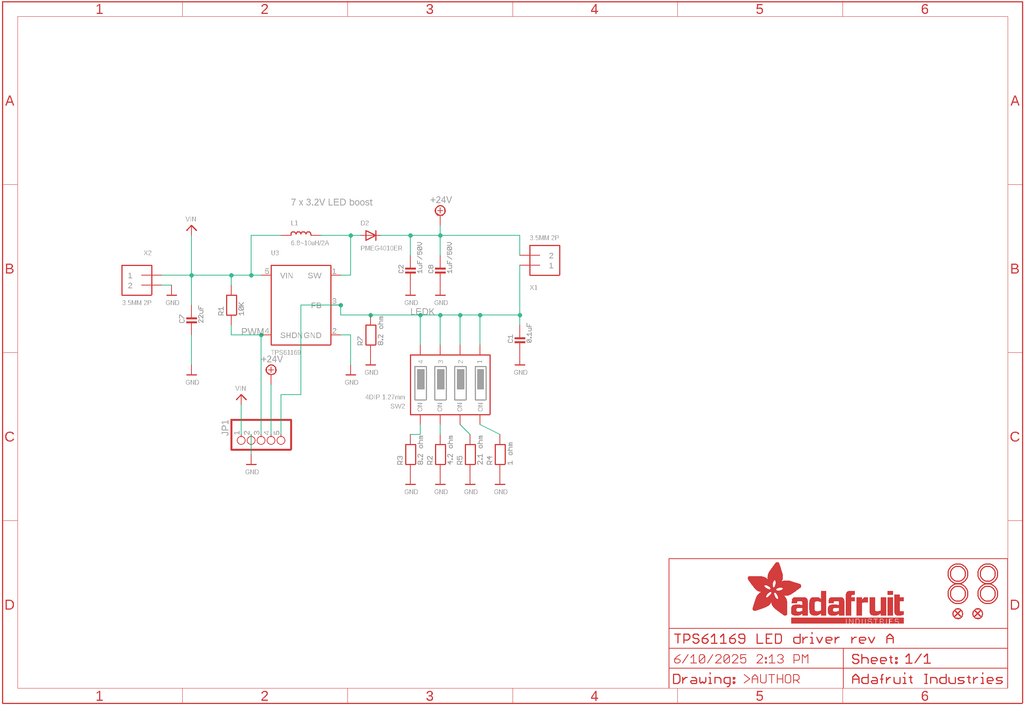

The module features a built-in 1.2 A switch and automatic over-voltage protection when the output is disconnected. Additionally, the LEDs can be dimmed via a PWM input. The converter is quiet and efficient, achieving approximately 90% efficiency. Due to its constant current nature, it is not suitable for applications requiring a stable output voltage, e.g., 5 V. The output current is set using mini DIP switches, with a default of 25 mA, and each switch adds 25 mA / 50 mA / 100 mA / 200 mA, up to a total of 400 mA. The board is fully assembled and includes all necessary passive components and a small connector. Simply supply 3–5 V DC to the IN and GND pins or the screw terminal, connect the LED to the output port, and the device is ready to operate. In the case of a short or open output, power cycling may be required to exit protection mode.

Features

  • Input voltage range: 3–5 V DC
  • Maximum output voltage: 40 V
  • Maximum output current: 400 mA
  • Efficiency: ~90%
  • Output current adjustable via mini DIP switches
  • Built-in 1.2 A switch
  • Automatic over-voltage protection
  • LED dimming control via PWM
  • Dimensions: 25.2 × 19.0 × 10.1 mm
  • Weight: 3.8 g

Kit contains

  • Assembled TPS61169 Constant Current Boost Converter board
  • Goldpin connector
