- New
7″ IPS touch screen, DSI interface, 800×480, 5-point touch, ABS enclosure - Waveshare 32079
ID: 1201086
zł240.61
Tax included
zł195.62 tax excl.

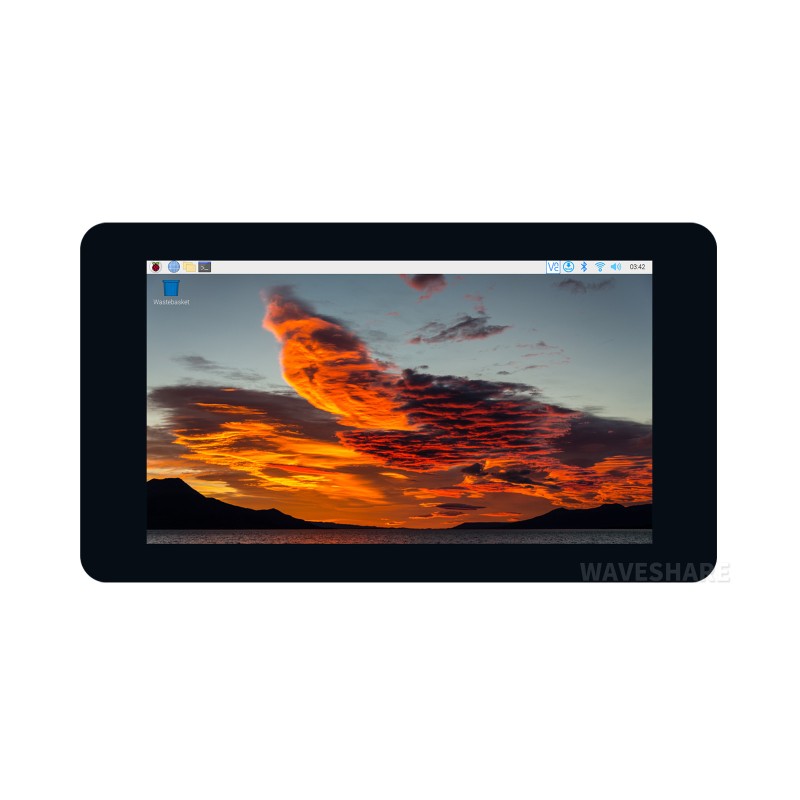

7inch DSI LCD (B) with white case is a high-quality IPS touch screen with a DSI interface, designed to work with Raspberry Pi 4B. It provides 5-point touch, a wide viewing angle and a durable, aesthetic enclosure for installation in HMI projects, control panels and visualization terminals.
Description
7inch DSI LCD (B) with white case is a capacitive touch screen with a 7-inch diagonal, designed for use with Raspberry Pi boards and other platforms compatible with the MIPI-DSI interface. Equipped with an IPS panel with a resolution of 800×480 pixels, it provides a wide 170° viewing angle and faithful color reproduction. The touch panel supports up to 5 touch points (depending on the operating system) and uses the I2C interface for communication.
The model with a white ABS enclosure is intended exclusively for mounting with the Raspberry Pi 4B, taking into account its connector layout. The assembly features a tempered touch glass with hardness up to 6H, which increases durability and scratch resistance. The kit includes a set of FPC ribbons and a power cable for the touch panel.
Properties
- 7″ IPS screen, 800×480 resolution
- Display interface: MIPI-DSI (4-pin FPC connector)
- Capacitive touch panel, 5-point touch support
- Touch interface: I2C
- Tempered glass with hardness up to 6H
- 170° viewing angle, high color accuracy
- ABS enclosure in white (compatible only with Raspberry Pi 4B)
- Brightness adjustment supported via software
- Supported systems: Raspberry Pi OS (5-point touch), Ubuntu/Kali/WIN10 IoT (1-point touch), Retropie, RoPieee
- Supports Raspberry Pi 4B/3B+/3B/2B/A+, Pi 5 and selected Core3566 and VisionFive2 boards
- Touch panel power/control via PH2.0 2-PIN cable
- Overall dimensions: 192.96 × 110.80 mm
- Active display area: 154.88 × 86.72 mm
- Enclosure thickness: approx. 19 mm
Included
- 7″ DSI LCD (B) touch screen x1
- ABS case (white) x1
- FPC cable 15-PIN 1.0 mm pitch, 50 mm x1
- FPC cable 15-PIN 1.0 mm pitch, 160 mm x1
- DSI cable (DSI-Cable-12cm) x1
- 2-PIN PH2.0 power cable 10 cm x1
- Set of mounting screws x1
1201086
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 7
- Resolution
- 800 x 480 px
- Interface
- MIPI-DSI
- Touch
- Yes
