DSI IPS Touch Display 8.8″ 480x1920 - Waveshare 33641
ID: 1203093
zł257.97
Tax included
zł209.73 tax excl.
Capacitive DSI IPS touch display 8.8″ with a resolution of 480 x 1920 px, supporting 10-point touch and software-controlled backlight adjustment, intended for embedded systems and SBC applications. Waveshare 8.8-DSI-TOUCH-A
Description

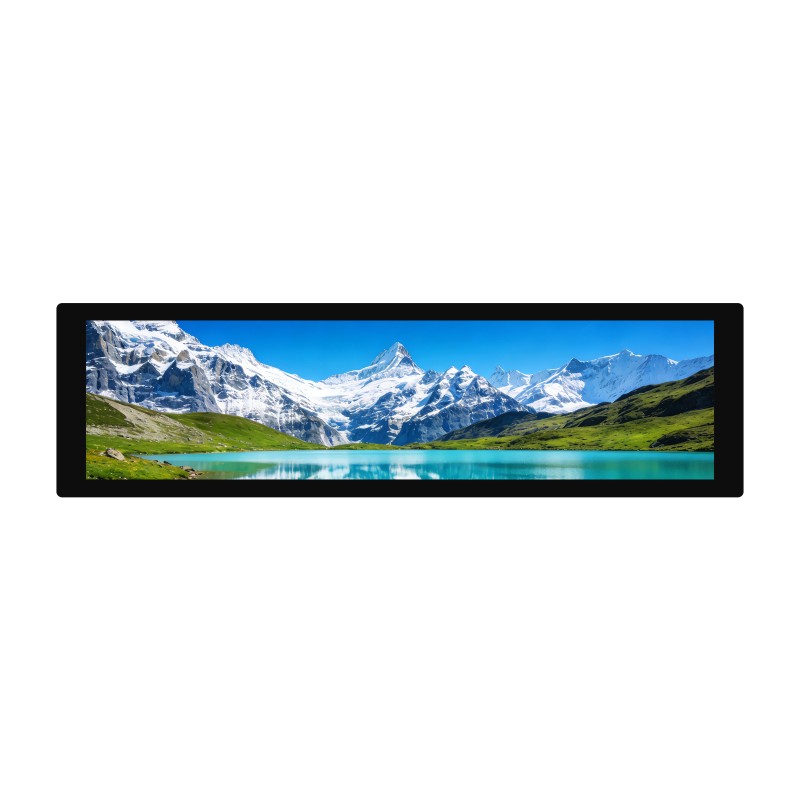

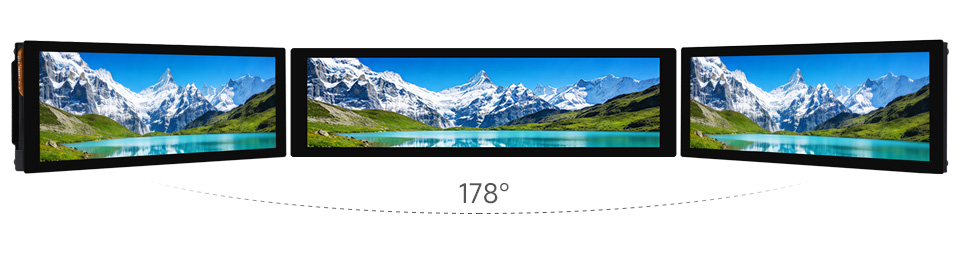

DSI IPS touch display 8.8″ Waveshare 33641 is designed for applications requiring a narrow, panoramic form factor and high image quality. The IPS matrix with a resolution of 480 x 1920 px provides wide 178° viewing angles and stable color reproduction, which is important for HMI interfaces, control panels, and information systems.

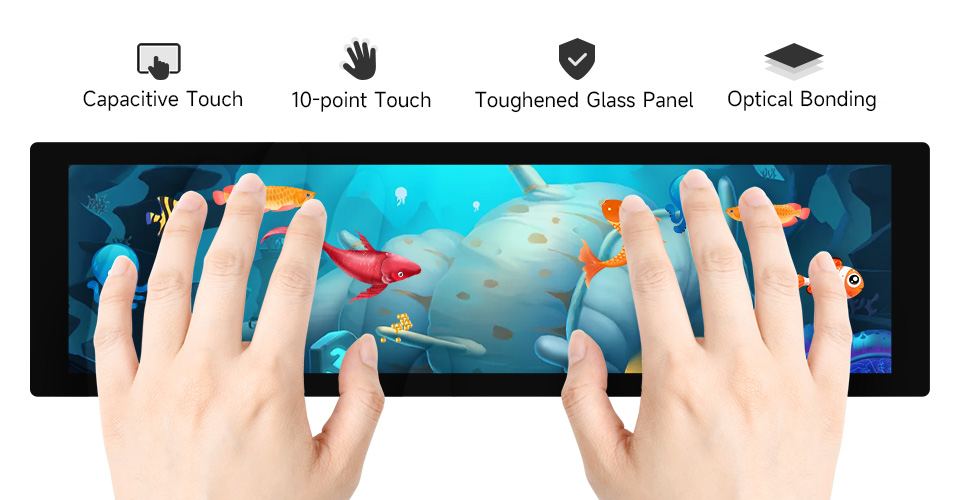

The display is equipped with a 10-point capacitive touch panel featuring toughened glass with hardness up to 6H, manufactured using optical bonding technology. This solution improves contrast, reduces reflections, and increases mechanical durability, which is relevant for industrial and embedded applications.
The default operating orientation is set to portrait mode 480 x 1920 (H x V), with the option to switch to landscape orientation via software configuration. IPS backlight brightness can be adjusted through software, allowing image parameters to be adapted to ambient lighting conditions and reducing power consumption.

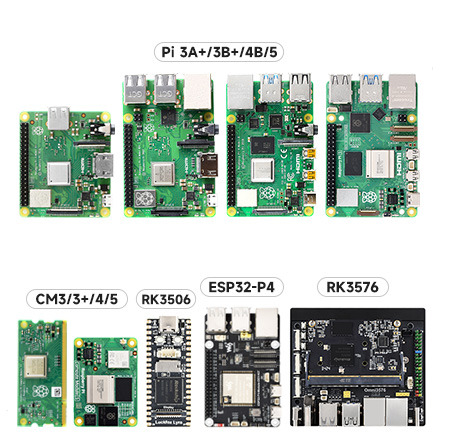

The MIPI DSI interface enables direct cooperation with platforms such as Raspberry Pi, ESP32-P4, RK3506, RK3576, and compatible systems supporting DSI and multi-touch input. The display is suitable for HMI projects, user terminals, automotive systems, status panels, and IoT applications.
Features
- Display size: 8.8 inches
- Resolution: 480 x 1920 px
- Panel type: IPS
- Viewing angles: 178°
- Display interface: MIPI DSI
- Touch panel type: capacitive
- Number of touch points: 10
- Touch interface: I2C
- Protective glass: toughened up to 6H
- Touch panel technology: optical bonding
- Default orientation: portrait 480 x 1920
- Backlight adjustment: software-controlled
- Compatibility: Raspberry Pi, ESP32-P4, RK3506, RK3576
- Weight: 0.279 kg
Kit includes
- 8.8-DSI-TOUCH-A display
- MIPI DSI cable 12 cm
- MX 1.25 2-pin to 2.54 3-pin cable
- FFC 22-pin cable ~200 mm (contacts on opposite sides) x2
- MX1.25 2-pin to MX1.25 4-pin cable ~150 mm
- Screws pack
1203093
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 8,8
- Resolution
- 480 x 1920 px
- Interface
- MIPI-DSI
- Touch
- Yes
