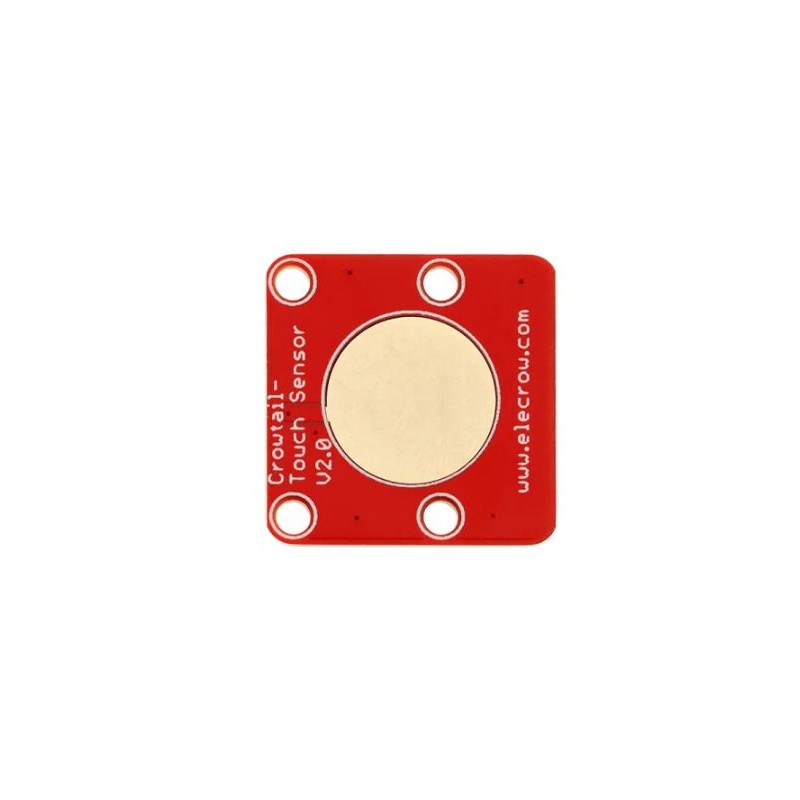

Crowtail Touch Sensor 2.0 - digital touch sensor module
ID: 1203397
zł5.90
Tax included
zł4.80 tax excl.
Digital touch sensor module based on the TTP223-B IC, enabling contactless finger touch detection through non-metallic surfaces up to 3 mm thick, compatible with the Crowtail system. Elecrow CT0012TS
Description
The Crowtail Touch Sensor 2.0 is designed for detecting human touch based on changes in electrical capacitance. The module uses the TTP223-B touch controller, which allows finger detection at a distance from 0 to 3 mm, even through non-metallic materials such as glass, paper, or thin plastic.
The ability to mount the sensor beneath an enclosure surface enables the creation of touch interfaces for applications requiring increased moisture resistance or concealed control buttons. This solution is suitable for touch panels, consumer devices, control systems, and educational projects.
The panel-mount–ready design provides a smooth touch surface, simplifying integration with enclosures and structural elements of electronic devices. The Crowtail connector in Type D connection mode allows fast, solder-free connection to Crowtail base boards.
Features
- Sensor type: Capacitive touch sensor
- Sensor IC: TTP223-B
- Output type: Digital
- Connection mode: Crowtail Type D
- Operating voltage: 2.0 V to 5.5 V
- Touch detection distance: 0 to 3 mm
- Supported surfaces: Non-metallic materials
- Power consumption: Low
- Response time in fast mode: up to 60 ms
- Response time in low-power mode: up to 220 ms at VDD 3 V
- Dimensions: 20 x 20 x 6.8 mm
- Weight: 15 g
Kit includes
- Crowtail Touch Sensor 2.0 module
- Crowtail 4-pin cable
