ID: 1195694
5902186303294
zł1,297.97
Tax included

zł1,055.26 tax excl.

Advanced new generation universal programmer, offering ultra-fast operation thanks to USB 3.0 Type-C, 200 MHz processor and Xilinx SP6 FPGA. It supports over 26,000 devices (including NAND, EMMC, BIOS), allows operation with voltages from 1.2 V and offers ISP function for in-circuit programming. Thanks to its compact design, Polish software and free updates, it is an ideal tool for both service and industrial applications. XGecu T76

24h
Available
Available quantity: 3

Description

XGecu T76 is a modern, universal programmer that builds upon the proven TL866A/CS series, offering significantly expanded technical capabilities. Featuring USB 3.0 Type-C communication and a redesigned architecture based on a 200 MHz 32-bit processor and Xilinx SP6 FPGA, it delivers ultra-fast and reliable programming. The device supports over 26,000 different chips, including modern NAND, EMMC, BIOS, and many other digital components. Thanks to "Pin Detected" technology, it ensures precise pin contact detection, and the ability to operate with voltages as low as 1.2V eliminates the need for additional adapters.

The programmer is equipped with a 76-pin I/O interface, with a maximum operating frequency of 50 MHz. ISP (in-system programming) is supported via an 8-pin header, even over cable lengths exceeding 30 cm. High read/write speeds for EMMC (up to 45 MB/s) significantly reduce operation times for large files. The unit includes multiple protections, including overvoltage, overcurrent, and reverse polarity safeguards. Powered directly from a USB port, it offers excellent portability and convenience.

XGecu T76 works with free software available in Polish and compatible with all popular Windows systems. Free updates make it a future-proof investment. Thanks to its compact size and rich functionality, the XGecu T76 is ideal for both professional electronics labs and industrial applications.

Features

  • Processor: 32-bit, 200 MHz + Xilinx SP6 FPGA
  • Communication interface: USB 3.0 Type-C, transfer speed up to 140 MB/s
  • Socket: ZIF-48, supports devices with up to 76 pins
  • ISP interface: 8-pin header, stable operation up to 25 MHz
  • Supported devices: EEPROM, EPROM, NOR/NAND FLASH, SPI, EMMC, CPLD, GAL, PAL, SRAM, TTL/CMOS
  • VCC voltage range: 1.2V to 6.5V (64 levels)
  • VPP voltage range: 6.5V to 25V (64 levels)
  • I/O signal voltage: adjustable from 1.2V to 3.6V
  • Power supply: via USB port (5V, <500 mA) or external 5V–5.5V
  • EMMC programming speed: write 12–25 MB/s, read 14–45 MB/s
  • Additional functions: self-test, self-diagnosis, power error protection
  • Supported OS: Windows 2000 / XP / Vista / 7 / 10 (32 & 64-bit)
  • Dimensions: 120 × 70 × 28 mm

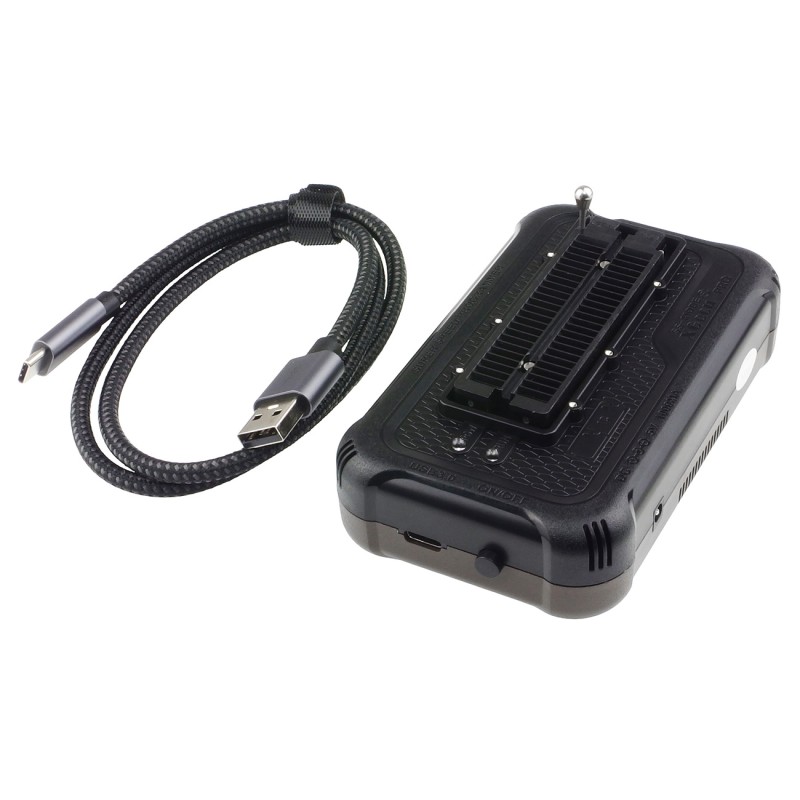

Kit contains

  • XGecu T76 Programmer
  • USB-C Cable
1195694
