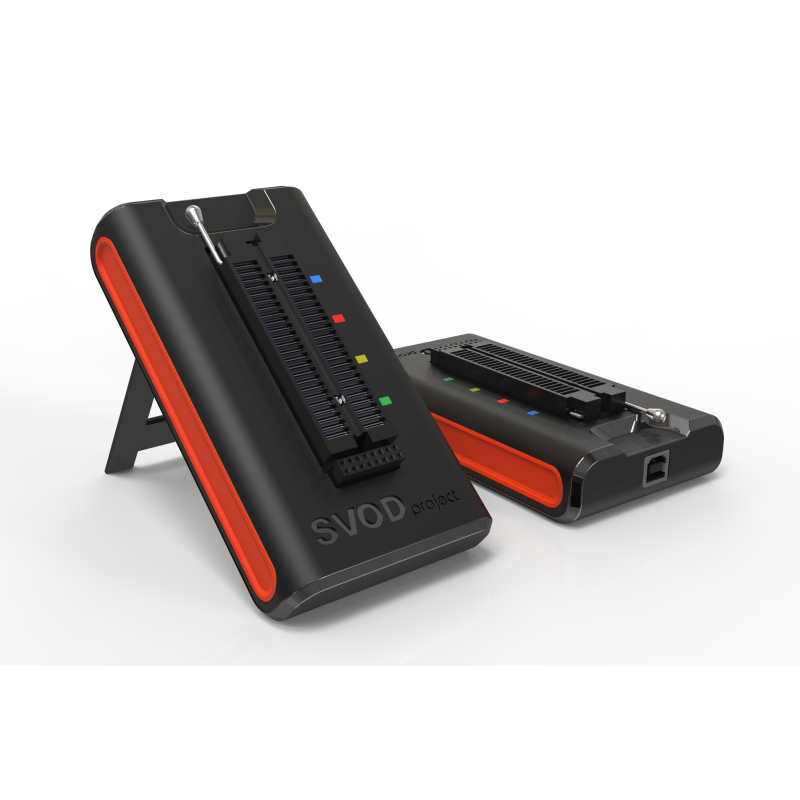

SVOD4 programmer for internal flash memory in KBC chips for ENE, ITE, Nuvoton, MEC
search
  • SVOD4 programmer for internal flash memory in KBC chips for ENE, ITE, Nuvoton, MEC
  • SVOD4 programmer for internal flash memory in KBC chips for ENE, ITE, Nuvoton, MEC
  • SVOD4 programmer for internal flash memory in KBC chips for ENE, ITE, Nuvoton, MEC
ID: 1199274
zł1,239.00
Tax included

zł1,007.32 tax excl.

SVOD 4 programmer enables programming and testing of KBC chips and SPI/NAND/NOR memory without removing them from the board. Used in computer service centers for diagnostics, BIOS repair, and EC controller servicing.

24h
Available
Available quantity: 3

Description

The SVOD 4 programmer is intended for reading, programming, and testing memory and microcontrollers on computer motherboards, especially laptops. It supports a wide range of communication protocols and enables work with EC/KBC (Embedded Controller/Keyboard Controller) chips from manufacturers such as ENE, ITE, Nuvoton, and MEC. It supports programming of SPI, NAND, and NOR memory, as well as testing keyboards and diagnosing BIOS and EC controllers without the need for desoldering. Equipped with a USB 2.0/3.0 interface and manual control of the supply voltage for the programmed chip.

Features

  • USB 2.0 / 3.0 High-Speed interface
  • Processor: ARM7, 480 MHz
  • Supported voltages: from 0.8 V to 12 V
  • Protocols: SPI, I2C, JTAG, UART, ONE WIRE, LPC, NAND, NOR, EMMC
  • Supported chips: BIOS/UEFI, EC/KBC (ENE, ITE, MEC, Nuvoton)
  • Automatic detection of bad contact
  • 48+16 GPIO lines
  • JEDEC ID support: 3–512 bytes
  • Power supply: via USB port
  • Dedicated Windows software, script creation supported
  • Regular chip database and firmware updates

Set includes

  • SVOD 4 main module
  • Converter board with ZIF socket
  • Set of 14 connection ribbons (0.5 mm / 0.8 mm / 1 mm)
  • USB cable
