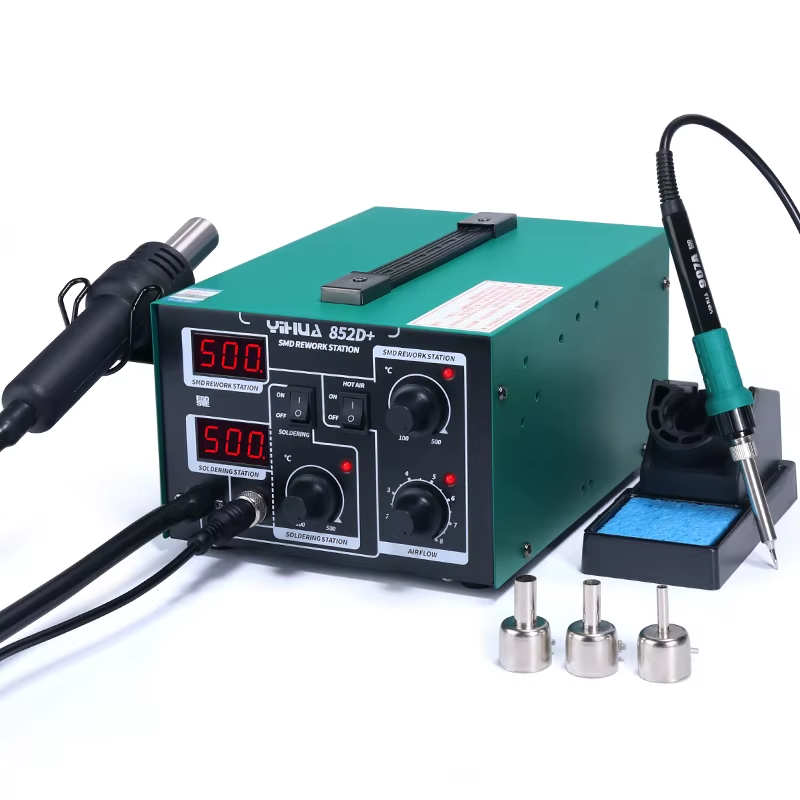

YIHUA 852D+ - 2-in-1 Hot Air and Soldering Iron Station
ID: 579763
5908272000139
zł246.00
Tax included
zł200.00 tax excl.
2-in-1 soldering station combining a Hot Air rework tool and a soldering iron, designed for soldering and desoldering THT and SMD components. The total power is 700 W, while temperature and airflow are adjusted using rotary controls. YIHUA 852D+
Description
Two-in-one soldering station - YIHUA 852D+ combines a 650 W hot air rework tool and a 50 W soldering iron. The Hot Air section operates within a 100 to 480°C temperature range and provides airflow up to 120 l/min, while the soldering iron temperature can be adjusted from 200 to 480°C. Operating parameters are shown on the display, while temperature and airflow intensity are set using rotary controls. After operation, the automatic cooling function reduces the temperature of the Hot Air heating element.
The soldering iron can be used for assembling and servicing through-hole and SMD components, while the Hot Air section facilitates soldering and desoldering SMD devices, including components in QFP, SOIC, PLCC, and BGA packages. The ESD Safe design, together with low tip-to-ground resistance and tip-to-ground potential, allows the station to be used with electronic components sensitive to electrostatic discharge.
Features
- Temperature and airflow adjustment
- Display showing operating parameters
- Power supply: 220 - 240 V AC, 50 Hz
- Total power: 700 W
- Operating ambient temperature: 0 - 40°C
- Dimensions: 255 x 188 x 125 mm
- Weight: 4.5 kg
- Hot Air rework tool
- Temperature adjustment range: 100 - 480°C
- Temperature stability: ±15°C
- Airflow: up to 120 l/min
- Power: 650 W
- Automatic heater cooling after operation
- Display of the current airflow level
- Soldering iron
- Temperature adjustment range: 200 - 480°C
- Temperature stability: ±10°C
- Heating power: 50 W
- Tip-to-ground resistance: below 2 Ω
- Tip-to-ground potential: below 2 mV
- ESD protection: ESD Safe
Kit includes
- YIHUA 852D+ soldering station
- 907A soldering iron with tip
- Soldering iron stand with cleaning sponge
- Hot Air handle holder
- 4.4 mm round nozzle
- 7 mm round nozzle
- 9 mm round nozzle
- IC pickup tool
- Power cable
