WiFi + Bluetooth module - Murata LBEE5KL1YN-814
ID: 1192416
zł40.93
Tax included
zł33.28 tax excl.

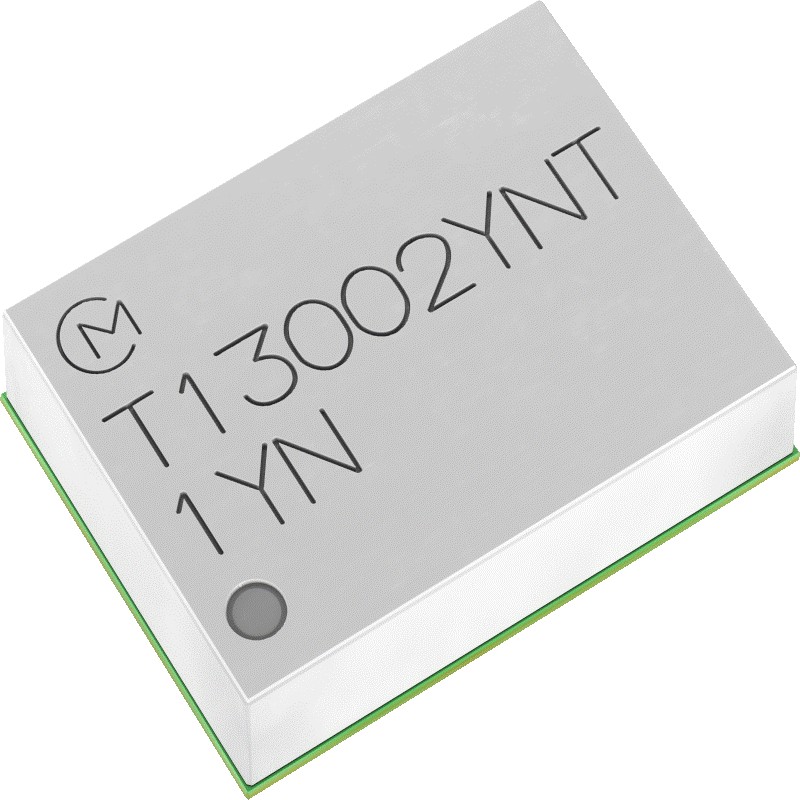

Shielded WiFi 802.11b/g/n and Bluetooth 5.1 communication module by Murata based on the Infineon CYW43439 chipset, featuring SDIO, UART, and PCM interfaces for IoT devices and industrial applications. Murata LBEE5KL1YN-814
Description
Murata LBEE5KL1YN-814 module designed for 2.4 GHz WiFi and Bluetooth 5.1 wireless communication in IoT devices, Smart Home systems, communication gateways, sensor networks, and industrial applications. The module based on the Infineon CYW43439 chipset supports IEEE 802.11b/g/n standards with data rates up to 65 Mb/s and Bluetooth BR / EDR / LE connectivity.

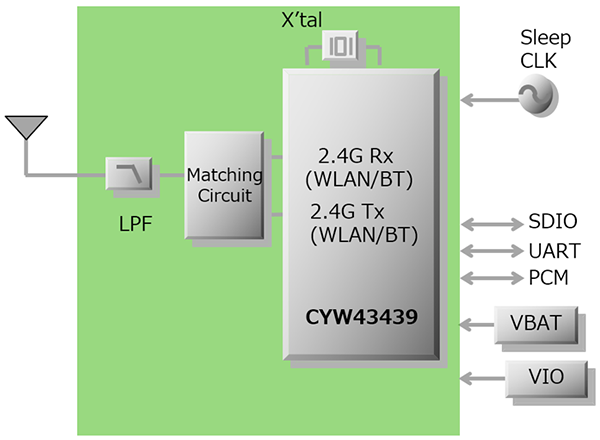

The compact shielded SMT package measuring 6.95 x 5.15 x 1.1 mm simplifies integration into devices with limited installation space. The module uses the SDIO 2.0 interface for WiFi communication and UART and PCM interfaces for Bluetooth.
Features
- Manufacturer: Murata
- Manufacturer code: LBEE5KL1YN-814
- Module type: Type 1YN
- Chipset: Infineon CYW43439
- WiFi standard: IEEE 802.11b/g/n
- Operating band: 2.4 GHz
- Maximum WiFi data rate: 65 Mb/s
- Bluetooth: 5.1 BR / EDR / LE
- Maximum Bluetooth data rate: 3 Mb/s
- WiFi interface: SDIO 2.0
- Bluetooth interface: UART, PCM
- VBAT supply voltage: 3.0 - 4.8 V
- VDDIO interface voltage: 1.8 V or 3.3 V
- Built-in MAC and BD address
- External antenna
- Mounting type: SMT
- Package type: Shielded
- Operating temperature: -40°C ~ 85°C
- Dimensions: 6.95 x 5.15 x 1.1 mm
- Application: IoT, Smart Home, industrial automation, sensor networks, communication gateways
1192416
Data sheet
- Logic voltage
- 1,8 V/3,3 V
- Wi-Fi chip
- CYW43439
- Wi-Fi standard
- 802.11 b/g/n
- Frequency range
- 2,4 GHz
- Baud rate
- 65 Mbps
- Antenna connector
- Brak
- Power supply voltage
- 3,0-4,8 V
