74LVC2G125DC,125

Description

Logic device from the LVC family featuring two independent non-inverting buffers/drivers with 3-state outputs, designed to operate over a wide supply voltage range from 1.65 V to 5.5 V. Each buffer includes a separate output enable (OE) control input, allowing the device to be used for data line multiplexing or signal isolation. CMOS technology ensures low quiescent current and high switching speed, with propagation delay ranging from 2.7 ns to 1.9 ns depending on supply voltage. Available in a compact VSSOP‑8 package for surface-mount applications.

Features

• Logic family: LVC
• Number of channels: 2
• Number of inputs/outputs: 2/2
• Logic type: non-inverting
• 3-state output (with OE input)
• Supply voltage: 1.65 V to 5.5 V
• Supported logic levels: 1.8 V / 2.5 V / 3.3 V / 5 V
• Output current: ±32 mA
• Quiescent current: 100 nA
• Supply current: typ. 40 μA
• Propagation delay: 2.7 ns - 2.7 V / 2.3 ns - 3–3.6 V / 1.9 ns - 4.5–5.5 V
• Mounting style: SMD/SMT

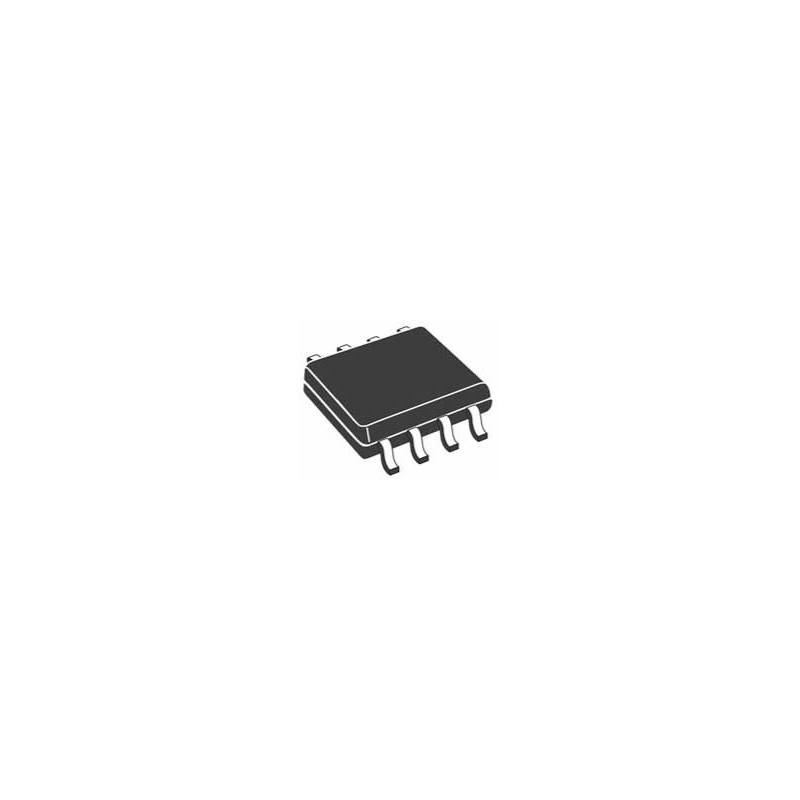

• Package: VSSOP‑8
• Dimensions: 2.1 mm × 2.4 mm × 0.85 mm
• Operating temperature: –40 °C to +125 °C
• RoHS compliant
