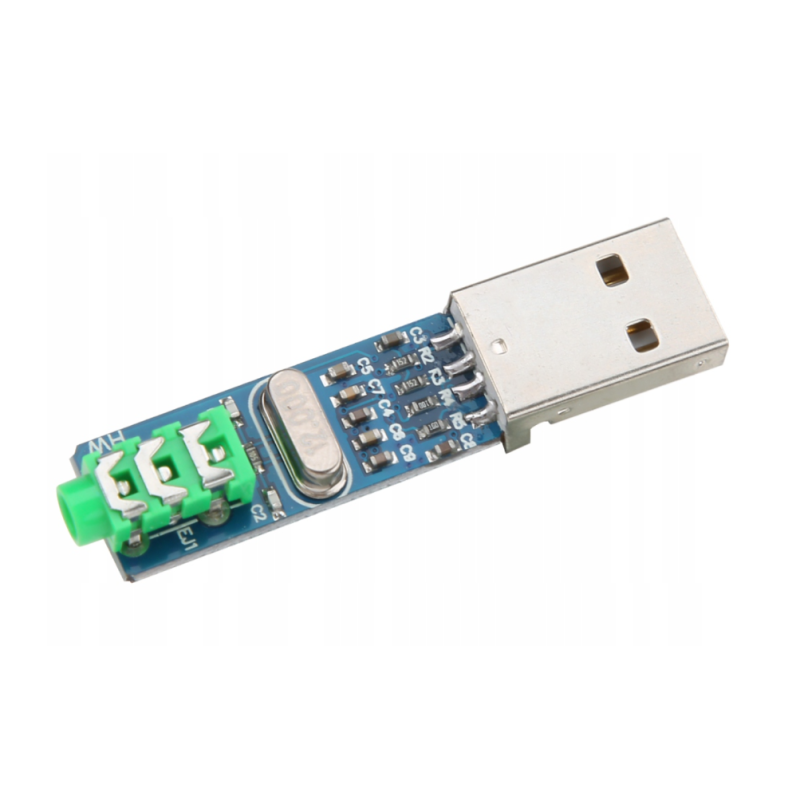

USB DAC Mini PCM2704 sound card – 5 V, analog headphone output
ID: 1200670
5902186331198
zł21.87
Tax included
zł17.78 tax excl.
Miniature USB DAC with the PCM2704 chip enables conversion of a digital audio signal to analog with high quality and low distortion. Powered from the USB port, it works with Windows, MacOS and Android OTG systems, offering analog and SPDIF outputs for HIFI and mobile audio applications.
Description
Miniature USB sound card with a digital-to-analog converter based on the PCM2704 chip, designed to work with computers and mobile devices. The module is powered directly from the USB port (5 V) and offers a high-quality analog output as well as a digital SPDIF output. Thanks to direct USB connection and external construction, it avoids electromagnetic interference typical for integrated audio circuits inside a computer case, resulting in better sound quality and a higher signal-to-noise ratio.
The module supports 16-bit stereo or mono audio data with sampling frequencies from 32 kHz to 48 kHz. The PCM2704 also provides digital volume control and a mute function synchronized with the computer. With an analog headphone output rated at 12 mW (for 32 Ω), the module can work directly with headphones or external audio amplifiers.
Properties
- DAC converter: PCM2704
- Power supply: 5 V from USB port
- Input interface: Mini USB
- Outputs: analog audio (headphone), digital SPDIF
- Supported sampling frequencies: 32 / 44.1 / 48 kHz
- Bit depth: 16 bits
- THD+N distortion: 0.006% (10 kΩ), 0.025% (32 Ω)
- Signal-to-noise ratio: 98 dB
- Dynamic range: 98 dB
- Output power: 12 mW (for 32 Ω)
- Supported operating systems: Windows XP/7/8, MacOS 9/OSX, Android 4.1 and newer (with OTG)
1200670
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
