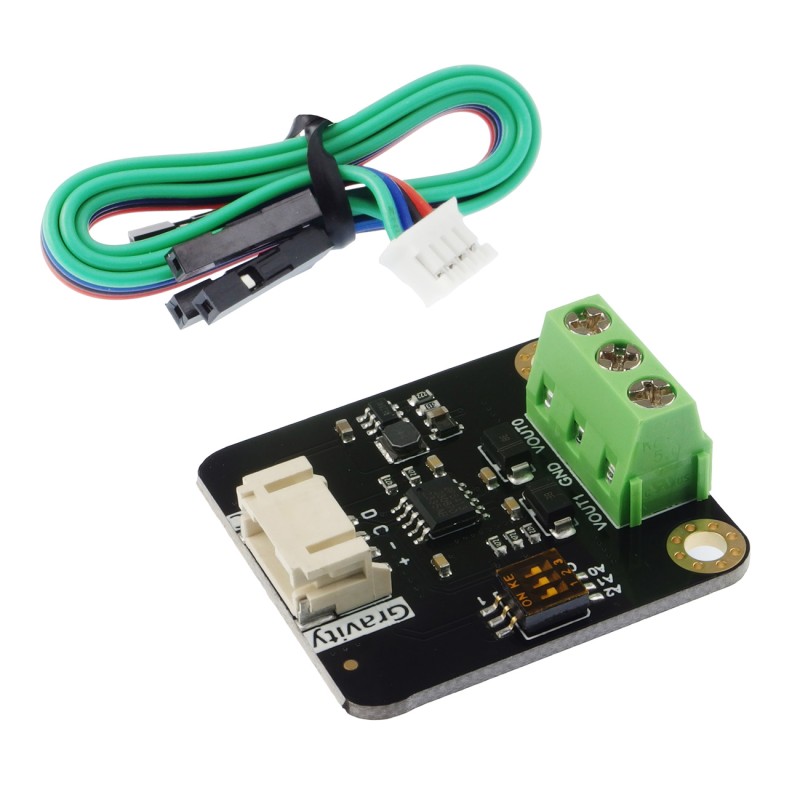

Gravity: GP8413 DAC Module - module with 2-channel DAC converter (I2C to 0-5V/10V)
ID: 1188230
5902186311398
zł59.84
Tax included
zł48.65 tax excl.
Gravity module designed based on the GP8413 system. It is a two-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with a resolution of 15-bit and an accuracy of 0.2%. It allows you to generate analog signals with a voltage range from 0 to 10 V or 0 to 5 V. DFRobot DFR1073
Description
Gravity module designed based on the GP8413 system. It is a two-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with a resolution of 15-bit and an accuracy of 0.2%. It allows you to generate analog signals with a voltage range from 0 to 10 V or 0 to 5 V. This range is a standard control method and can be used in various automation applications, such as lighting regulation, frequency converters, valve regulation or pump control. . The module's high precision and resolution make it a suitable solution for projects that require high signal accuracy, such as precise speed or angle control. With this module, the user can achieve precise control of analog signals, making it a versatile tool for a variety of applications in the field of automation and DIY projects.
Features
- Chip type: GP8413
- Communication interface: I2C
- Resolution: 15-bit
- Output voltage: 0 to 5V or 0 to 10V
- Number of channels: 2 channels
- Value range: 0 to 32767 corresponding to 0-5V or 0-10V
- Accuracy: 0.2%
- Possibility to configure the I2C address (up to 8 different addresses)
- Supply voltage: 3.3V to 5V
- Dimensions: 32 x 35 mm
Kit contains
- GP8413 Module: 2-Channel 15-bit I2C to 0-5V/10V DAC
- Gravity-4P I2C/UART cable
