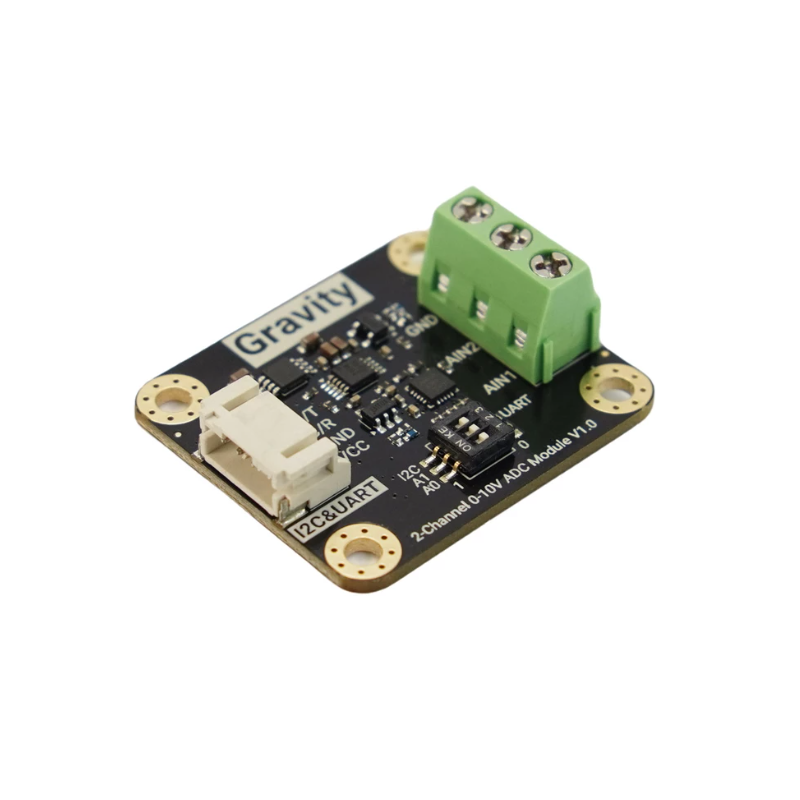

ADC Module DFRobot DFR1184 – Gravity: 0–10 V, 15-bit, dual-channel, for Arduino / Raspberry Pi / ESP32
ID: 1201305
5902186330115
zł55.67
Tax included
zł45.26 tax excl.
DFRobot DFR1184 module with a 15-bit ADS1115 converter enables precise voltage measurements of 0–10 V from industrial sensors. The dual-channel design, support for I2C/UART, and compatibility with popular platforms make it an effective solution for automation systems, environmental monitoring, and energy management.
Description
The dual-channel analog-to-digital module DFRobot DFR1184 from the Gravity series enables precise voltage measurement in the range of 0–10 V with a resolution of 15 bits (step 0.3125 mV) and an accuracy of ±2 mV. The integrated ADS1115 converter from Texas Instruments supports industrial sensors such as pressure transmitters, flow meters, and energy analyzers, providing signal conversion compatible with the requirements of low-voltage microcontrollers (3.3–5 V). The built-in PGA amplifier automatically adjusts signal gain, maintaining high accuracy across the entire voltage range. Communication via I2C or UART interface and the Gravity-4P connector facilitates integration with systems based on Arduino, Raspberry Pi, ESP32, and PLC controllers. The module is ideal for industrial automation, environmental monitoring, and energy management systems.
Properties
- ADC chip: ADS1115
- Input range: 0–10 V
- Number of channels: 2
- Resolution: 15 bits (step 0.3125 mV)
- Accuracy: ±2 mV
- Communication interface: I2C / UART
- Connector: Gravity-4P
- Supply voltage: 3.3–5 V DC
- Applications: industrial automation, environmental monitoring, IoT systems, energy analysis
Included
- Gravity 0–10 V ADC module
- Gravity-4P I2C/UART cable
