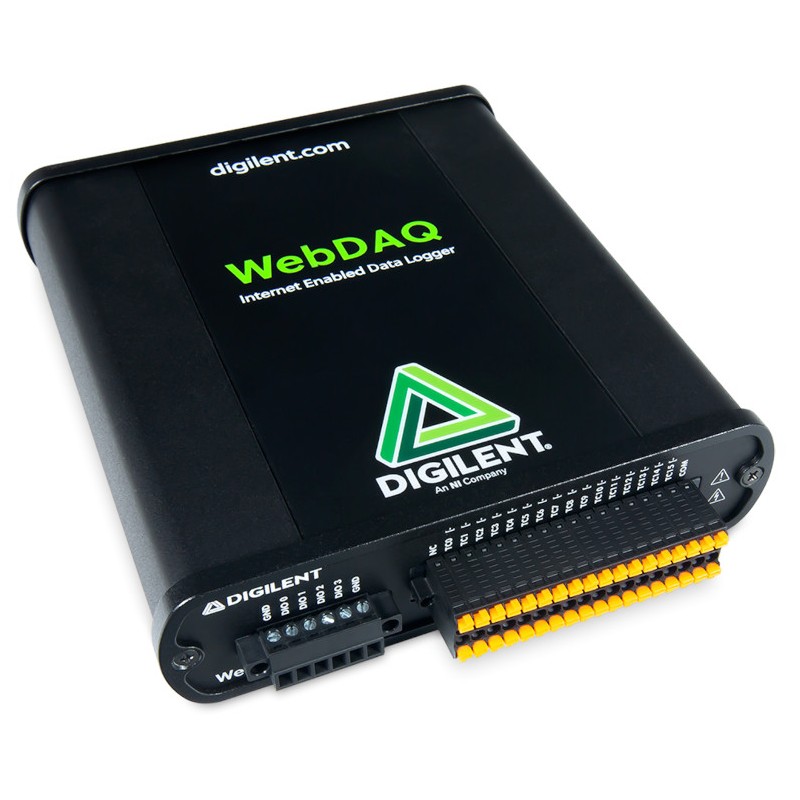

WebDAQ 316 (6069-410-005-1) - Data Logger for Thermocouple Sensors
ID: 1189965
zł6,123.80
Tax included
zł4,978.70 tax excl.
Data logger for thermocouple sensors with a built-in web server, 16 measurement inputs, and 24-bit resolution. Digilent 6069-410-005-1
Description
The WebDAQ 316 is a stand-alone temperature logger designed for remote monitoring and control. The logger performs all data processing operations, eliminating the need for a computer or additional software. With the built-in WebDAQ web server, users can easily configure simple or advanced applications, log temperature data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.
The WebDAQ 316 provides 16 isolated thermocouple inputs and four isolated digital signals that can be used as trigger inputs or alarm outputs. Housed in a rugged enclosure, the WebDAQ 316 is designed to meet the demands of industrial applications.
The built-in operating system and web server of the WebDAQ series provide a comprehensive stand-alone data logging solution. Users can monitor and control their applications from anywhere using a web browser. For those requiring more advanced functionality than the web interface provides, a RESTful API is available.
Features
- 16 thermocouple inputs
- 24-bit A/D converter
- Sample rate up to 75 S/s per channel
- Supports thermocouple types J, K, R, S, T, N, E, and B
- Data logging to internal storage or network storage
- 3GB internal memory – optional SD card and USB slots
- Cold junction compensation
- Built-in web server for access from any device with a web browser
- Alarming and notifications via email and SMS messaging
- Export data to CSV, UFF, or binary formats for other applications
- Easy and flexible task scheduling
- No driver installation required
- Wi-Fi support (Wi-Fi adapter not included)
- Ethernet port for network or PC connection
- Four digital I/O for triggers and alarms
Kit Contains
- WebDAQ 316
- 9V power adapter
- Ethernet cable
- Interchangeable AC input plugs (USA/EU/UK)
