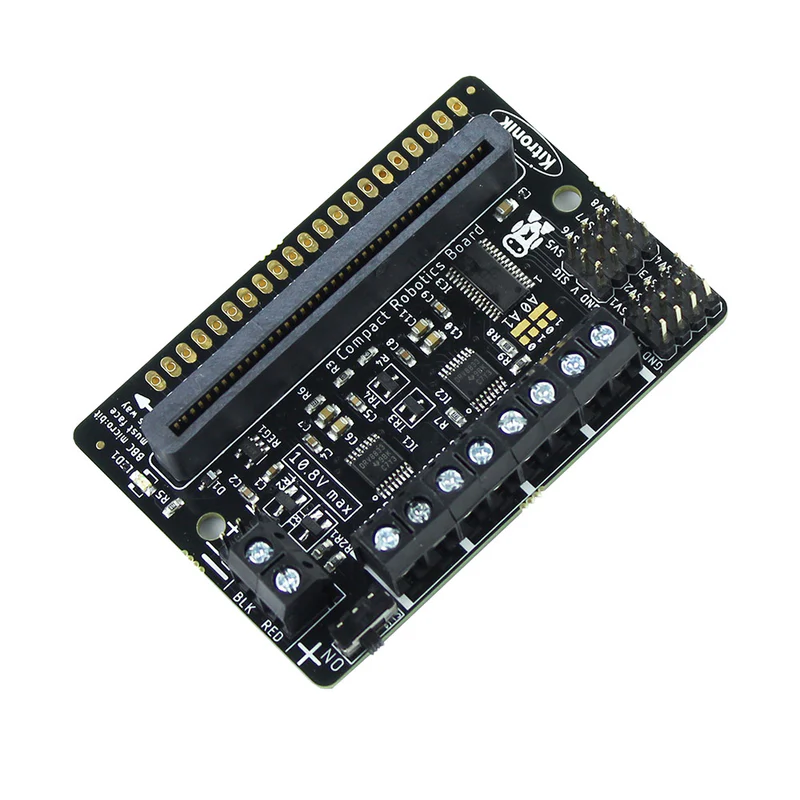

Kitronik 5693 Compact Robotics Board for micro:bit, controls 4 DC motors, 2 stepper motors and 8 servos
search
  • Kitronik 5693 Compact Robotics Board for micro:bit, controls 4 DC motors, 2 stepper motors and 8 servos
ID: 1198631
zł96.00
Tax included

zł78.05 tax excl.

Kitronik 5693 is a compact expansion board for the BBC micro:bit, enabling control of 4 DC motors, 2 stepper motors, and 8 servos. With I²C support and 17 I/O pins, it serves as a central module in robotics and educational projects, providing stable power supply and wide functionality.

3 weeks
Awaiting delivery

Description

The Kitronik Compact Robotics Board allows the BBC micro:bit module to be used as a controller for robotics projects. It includes two H-bridge driver ICs enabling control of 4 DC motors (or 2 stepper motors) and an I²C driver IC with 8 outputs for servos. Additionally, it provides 17 I/O pins for connecting sensors and other peripheral devices, including I²C interface support. Power is supplied via a screw terminal or servo connector and distributed to all system components, as well as to the connected micro:bit, eliminating the need for separate power. The board is equipped with a power switch and an LED indicator. Its compact size makes it ideal for mobile robots and educational systems.

Properties

  • Supply voltage: 3 – 10.8 V DC
  • Motor control: 4 × DC motors or 2 × stepper motors (half-step, no microstep)
  • Servo control: 8 channels (standard and continuous servos)
  • Maximum continuous current (combined for motors and servos): 10 A
  • Maximum current per motor: 1.5 A
  • Communication interface: I²C (16-channel driver IC)
  • Additional outputs: 17 BBC micro:bit I/O pins, I²C lines (pins 19 and 20)
  • Micro:bit power: regulated 3.3 V from the board
  • Connectors: screw terminal block, servo header, edge connector for micro:bit
  • Indicators: power LED, ON/OFF switch
  • Software support: Microsoft MakeCode (dedicated Kitronik blocks), MicroPython
  • Dimensions: 68 × 46.5 × 10.6 mm
  • PCB thickness: 1.6 mm
