Pololu 5345–A5984 – goldpin mounting pins
search
  • Pololu 5345–A5984 – goldpin mounting pins

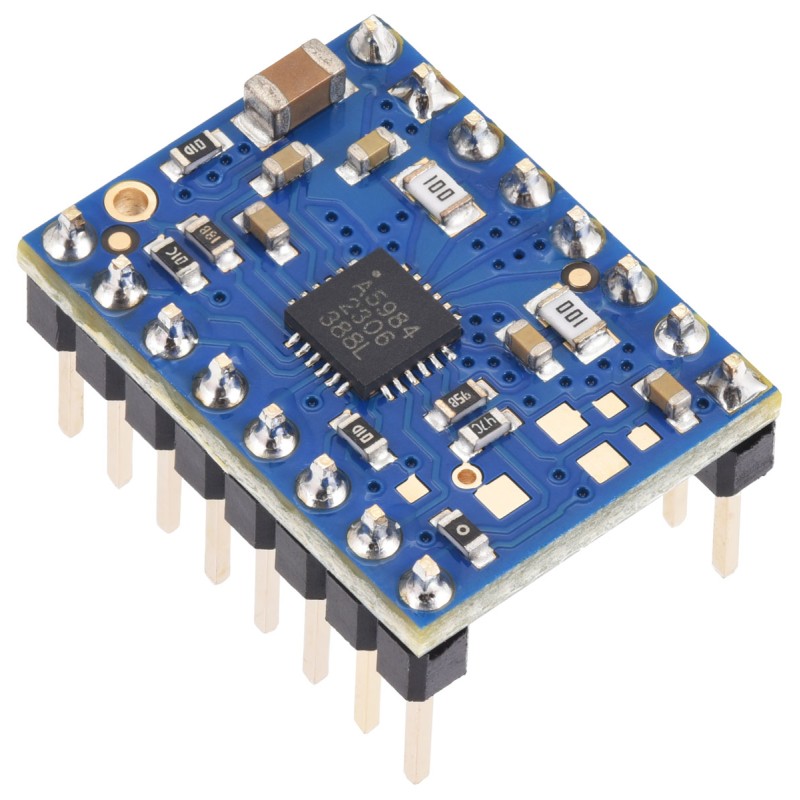

  • Pololu 5345–A5984 – front view (top view)
ID: 1194458
5902186332706
zł28.81
Tax included

zł23.42 tax excl.

Pololu 5345 stepper motor driver based on the A5984 IC, intended for controlling bipolar stepper motors with 5V or 3.3V logic levels, equipped with soldered goldpin headers. Pololu 5345

24h
Available
Available quantity: 3
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Pololu 5345 is used to control bipolar stepper motors in applications requiring current regulation and microstepping support. The module is based on the A5984 IC from Allegro MicroSystems and supports operation with 5V or 3.3V logic via the STEP/DIR interface. The driver supports full-step, half-step, and microstepping modes up to 1/16, with a maximum output current of up to 1.5A at 5V logic or up to 1A at 3.3V logic.



Motor current adjustment is implemented using an onboard trimmer potentiometer, allowing operating parameters to be matched to the motor characteristics. The carrier-format board with soldered goldpin headers enables direct mounting on breadboards and integration into prototyping systems and microcontroller-based controllers. Motor power is supplied from a separate voltage source, independent of the logic supply. When operating at higher output currents, adequate heat dissipation from the IC is recommended.

Features

  • Control IC: A5984
  • Motor type: bipolar stepper motor
  • Maximum output current: 1.5A@5V / 1A@3.3V
  • Supported step modes: full step, half step, microstepping up to 1/16
  • Current regulation: onboard potentiometer
  • Logic voltage: 3.3V / 5V
  • Control interface: STEP/DIR
  • Protections: current limiting, thermal protection
  • Connectors: soldered goldpin headers
  • PCB color: blue
  • Manufacturer: Pololu
  • Manufacturer code: 5345

1194458

Data sheet

Output current
1,5 A
Number of channels
2
Supply voltage min
8 V
Supply voltages max
40 V
