New products
New products
zł68.21 tax excl.
ArduCam CSI to HDMI modules are designed to work with cameras: Raspberry Pi V1 and Raspberry Camera V2. ArduCAM CSI to HDMI allows you to extend the signal from cameras using the HDMI <-> HDMI cable (up to 10 meters). Arducam B0091
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
ArduCam CSI modules are HDMI designed for cooperation with Raspberry Pi V1 and Raspberry Camera V2 cameras. These communication cameras use a 15-pin FPC belt (which may have a limited length and are susceptible to mechanical damage). ArduCAM CSI to HDMI allows you to extend the signal from the cameras using the HDMI <-> HDMI cable (up to 10 meters, depending on the quality of the HDMI cable). The HDMI cable is more durable and less susceptible to damage than thin FPC tape. In addition to the camera signal, the audio signal (JACK socket) or other GPIO signals may also be extended. The module is designed for use with Raspberry Pi 4 model B, Raspberry Pi 3 model B + , Raspberry Pi 3 model B , Raspberry Pi 2 model B and Raspberry Pi 1 model B + .
Attention!
The set does not have an HDMI cable, you should buy it separately, eg. HDMI cable (M) - HDMI (M) 3m , the set also does not include a camera for Raspberry Pi, eg Raspberry Pi HD Camera V2 8MP - RPI Camera Camera Board V2
properties
- Works with Raspberry Pi 4 model B, Raspberry Pi 3 model B +, Raspberry Pi 3 model B, Raspberry Pi 2 model B and Raspberry Pi 1 model B +
- Works with Raspberry Camera V1 (5MP, OV5647) and Raspberry Pi Camera V2 (8MP, IMX219)
- Allows you to use an HDMI cable with a maximum length of 10 meters (depending on the quality of the HDMI cable)
- It also allows you to extend the audio signal (port jack) or other GPIO signals
- Dimensions: 27.63 x 25 mm

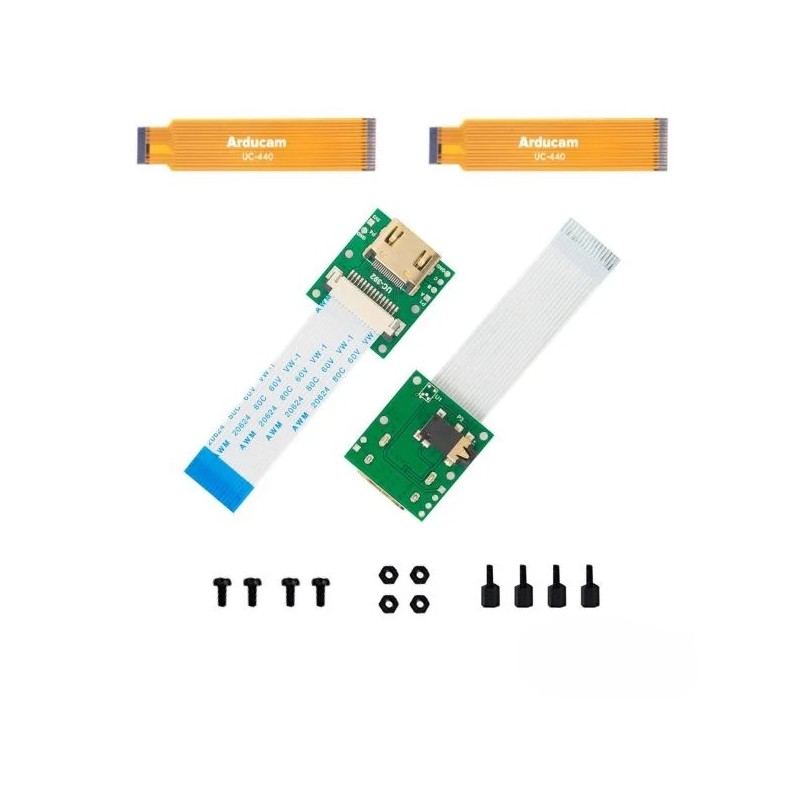

Included
- 2 x The ArduCam CSI module is HDMI
- 1 x FPC tape 15 pins (80 mm)
- 4 x Mounting kits (M2 screws, nuts, spacers)
