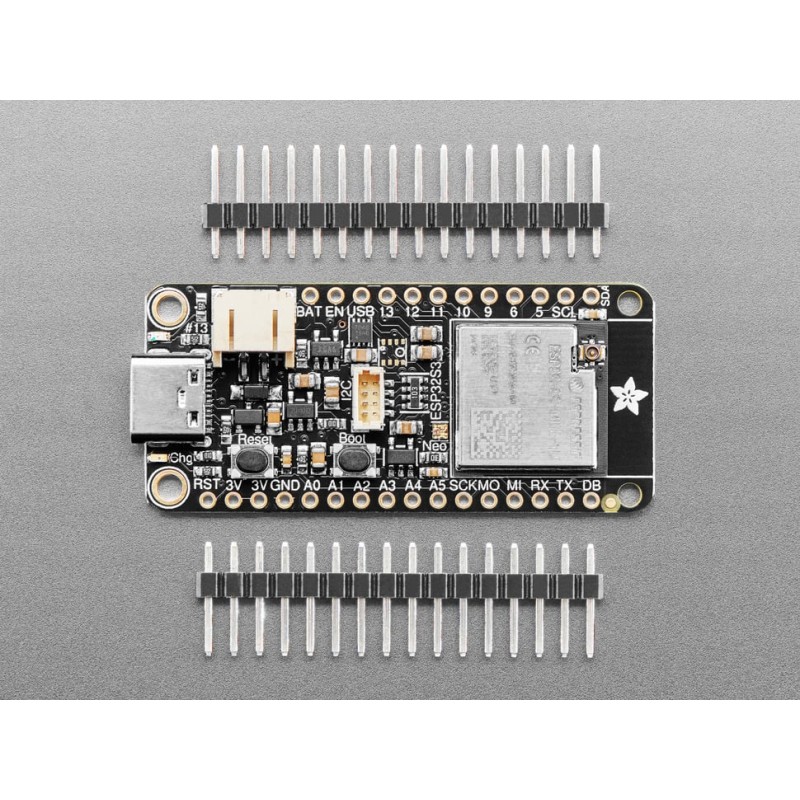

  • Set
  • Set (Rotated development board)
  • Bottom view
  • Top view
ID: 1202022
zł90.79
Tax included

zł73.81 tax excl.

This compact IoT board features a dual-core 240 MHz processor, 2.4 GHz WiFi, and Bluetooth LE. The w.FL antenna connector allows for an external antenna, increasing range and stability. The board offers 8 MB of Flash, 512 KB of SRAM, native USB with HID and MIDI support, and a built-in LiPo charger with a MAX17048 battery monitor. It also includes a STEMMA QT connector, a programmable NeoPixel, and full compatibility with the Feather ecosystem. The Adafruit 5885

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

ESP32-S3 Feather 8MB is a modern and highly versatile development board designed for IoT projects that require high performance and reliable wireless connectivity. Equipped with a dual-core 240 MHz processor, it delivers strong computing power and smooth operation even in more complex applications. This version includes a w.FL antenna connector, allowing the use of an external RF antenna—especially useful in enclosed housings or when extended signal range is required. The board supports both 2.4 GHz WiFi and Bluetooth LE, making it ideal for smart home devices, wireless sensors, and modern wearable applications. Thanks to native USB support, the ESP32-S3 can function as a keyboard, mouse, mass-storage device or MIDI interface without the need for an external USB-UART converter.


The board offers 8 MB of flash memory and 512 KB of SRAM, providing comfortable development with ESP-IDF and Arduino, as well as simpler projects in CircuitPython. A built-in LiPo charging circuit and the MAX17048 battery monitor make it a great choice for portable applications. Users also have access to status LEDs, including a programmable NeoPixel, Reset and BOOT0 buttons, and a STEMMA QT connector for easy expansion with I2C peripherals. The board is optimized for low-power operation — in deep sleep it consumes only about 100 µA, significantly extending battery life. Fully compatible with the Feather ecosystem, it can be expanded with additional FeatherWings to build complex, flexible, and scalable systems. It is an excellent choice for demanding designers who need a compact, powerful, and energy-efficient microcontroller with broad communication capabilities.

Features

  • Processor: ESP32-S3 Dual Core 240 MHz Tensilica
  • Flash memory: 8 MB
  • SRAM: 512 KB
  • Connectivity: WiFi 2.4 GHz, Bluetooth LE
  • Antenna connector: w.FL / MHF3 / IPEX3
  • Native USB with HID, MIDI, and mass-storage support
  • Power supply: USB-C or 3.7 V LiPo battery
  • Built-in LiPo charger with charge indicator
  • Battery monitor: MAX17048 (I2C)
  • STEMMA QT connector with switchable power
  • LEDs: On/Charge/User LEDs and programmable NeoPixel
  • Sleep mode consumption: approx. 100 µA
  • Supported environments: ESP-IDF, Arduino, CircuitPython
  • Buttons: Reset and BOOT0 (DFU)
  • Additional hardware debug pin
  • Dimensions: 50.8 × 22.8 mm

Kit contains

  • Adafruit ESP32-S3 Feather 8MB board
  • Header set for assembly
1202022

Data sheet

Microcontroller
ESP32-S3
Flash memory
8 MB
Number of I/O
20
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
50,8 mm
Width
22,8 mm
USB connector type
USB type C
