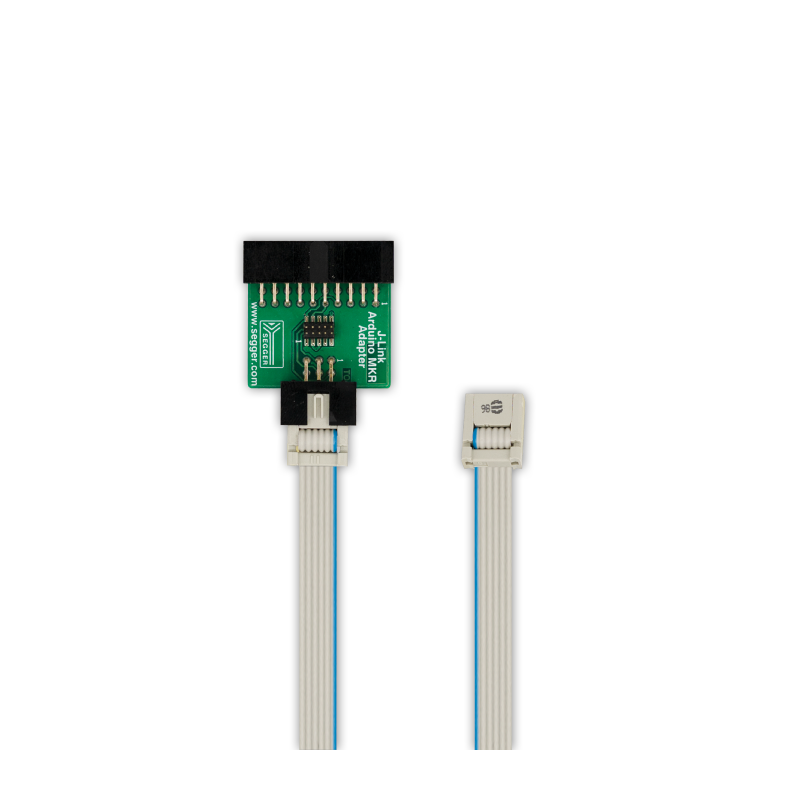

Segger Programmer Adapter for Arduino MKR – 6-pin 0.05" / 20-pin JTAG (8.06.37)

An adapter that allows you to connect a 20-pin 0.1" connector to a 10-pin connector, allowing you to easily connect J-Link or Flasher programmers to your PCB using through-wires. It is ideal for prototyping, testing new designs and working with ST Discovery boards, offering flexibility, speed and time savings when making design changes.Segger Flying Wire Adapter (06.08.27)

The Segger J-Link Supply Adapter (8.06.14) allows you to manually set the debug probe I/O voltage, preventing damage to the target board, adjustable from 1.2V to 5.0V. It can be inserted between J-Link or Flasher and the target device, reducing the number of connections needed, which is especially useful in a production environment.

J-Link Needle Adapter - connect J-Link to a PCB, Segger

Adapter from the standard 20-pin 2.54 mm connector to the 10-pin 1.27 mm connector often used in Cortex-M boards. Segger 50-Mil 10-Pin Patch Adapter (8.06.28)

The Segger J-Link Measurement+Patch Adapter allows you to easily customize connections between J-Link or Flasher devices and boards that do not have a standard debug connector. It is equipped with colored wires for signal identification, test points and jumpers for adjusting the voltages on the pins.

Power adapter providing a stabilized 5V supply voltage for the target board. Segger 5V Target Supply Adapter (8.06.29)

10-pin Needle Adapter to connect Flasher 5, Flasher ST7 or Flasher STM8 to a PCB, Segger

The Segger J-Link Signal Smoothing Adapter (8/06/12) is designed to improve signal integrity between the J-Link debug probe and the target debug device. It allows JTAG signals to be suppressed by adjustable series resistors, preventing excessive gain and jitter.

An adapter that allows the J-Link device to connect to Microchip microprocessors that use an RJ11 debug connector, converting the standard 20-pin .1" connector to a 6-pin RJ11 connector. With this tool, users can take full advantage of 2-wire JTAG debugging capabilities, including process tracing, memory analysis, and real-time device control, and the 21 cm RJ11 cable provides convenience in connecting to the target system. Segger Microchip 2-Wire JTAG TDI Adapter (06/08/23)

Adapter enabling connection of J-Link and Flasher debugging devices with a 20-pin 0.1" connector to a 14-pin 0.05" connector compliant with the ST standard. Segger STDC 14 Adapter (8.06.39)

A power adapter that provides a stabilized supply voltage to the target board (can be adjusted from 3.6V to 0.8V). Segger Target Supply Adapter (8.06.18)

Compact development board with NXP LPC54605J512 microcontroller, ideal for prototyping and testing USB solutions, equipped with two USB-Host ports and support for SEGGER software such as emUSB-Host, emLoad and embOS. Thanks to the simple firmware update process and the built-in J-Link OB debugger, the board allows you to quickly and conveniently start working with USB devices in embedded projects. Segger emPower-USB-Host (6.90.00)

J-Link RX Adapter, RoHS, Segger

The RX FINE adapter converts a standard 20-pin 2.54 mm connector to a 14-pin 2.54 mm connector. It enables the connection of Segger programmers with RX devices from Renesas. Segger RX Fine Adapter (8.06.10)

A device that provides electrical isolation between the J-Trace emulator and the ARM board, which protects against electrical interference, especially in systems where the development tools and the application do not share the same ground. It provides 1 kV DC isolation, supports trace frequencies up to 75 MHz, and is compatible with J-Trace V2 and later versions, with a minimum power consumption of 25 µA. Segger J-Trace Isolator (07/08/10)

The Segger J-Link USB Isolator (8.07.02) provides isolation up to 3 kV DC and supports USB Full-Speed transmission with a maximum output current of 200 mA. The device is equipped with short-circuit protection and LED indicators for power status and overload.
