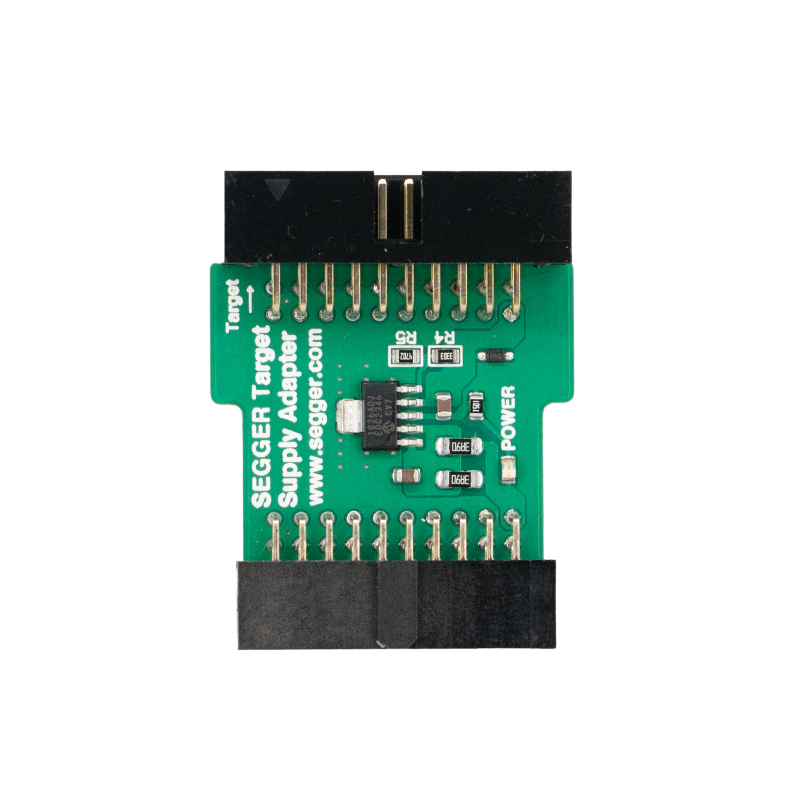

Segger Target Supply Adapter (8.06.18) - Segger power adapter
ID: 586711
5902186307049
zł353.53
Tax included
zł287.42 tax excl.
A power adapter that provides a stabilized supply voltage to the target board (can be adjusted from 3.6V to 0.8V). Segger Target Supply Adapter (8.06.18)
Description
The Target Supply Adapter provides an adjustable supply voltage to the target board. It has a standard 20-pin 2,54 mm socket towards the J-Link debug probe or Flasher in-circuit programmer, and a standard 20-pin 2,54 mm header on the target side and can directly be inserted between the J-Link or Flasher and the debug cable maintaining a 1:1 connection of all debug signals. The supply voltage to the target is provided through pin 19 of the debug cable.
The supply voltage is fixed to 3.3 V and can be adjusted in the range 3.6 V down to 0.8 V by means of changing a single resistor on the adapter (soldering required, resistor package SMD 0805). Since the Target Supply Adapter is fed by the J-Link, its current capability is limited to 400 mA. Furthermore the current capability depends on the chosen target voltage. Example target voltage/output current combinations:
- 3,6 V / 400 mA
- 3,3 V / 400 mA (default)
- 2,5 V / 300 mA
- 1,8 V / 200 mA
- 1,0 V / 150 mA
