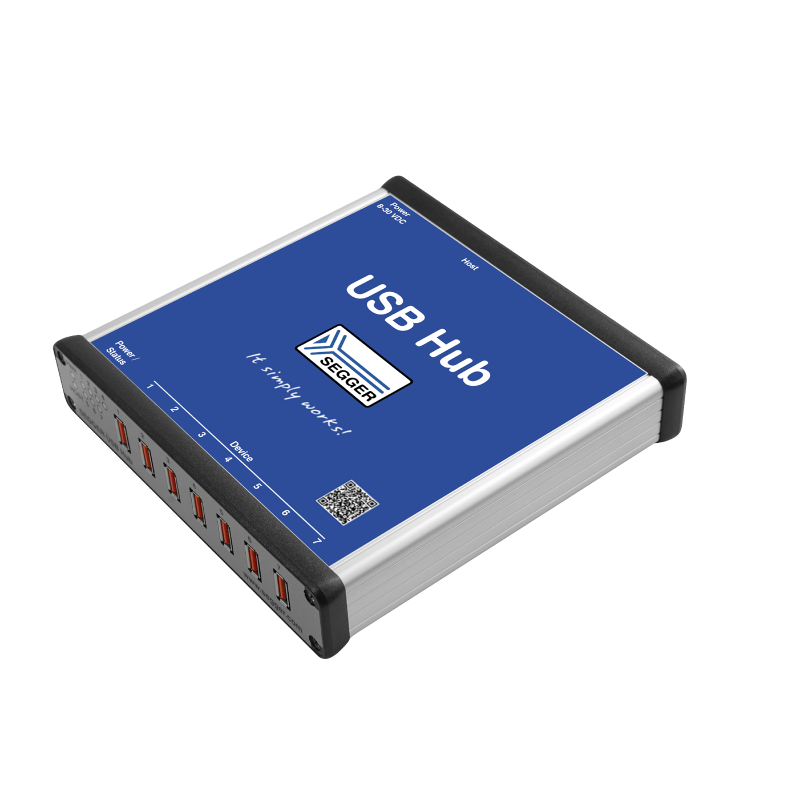

Segger USB Hub (5/01/10)
ID: 1187148
zł3,082.07
Tax included
zł2,505.75 tax excl.
The SEGGER USB Hub is a seven-port, industrial-grade USB hub that provides power to Flasher Compact devices and connects them to the Flasher Hub. Segger USB Hub (5/01/10)
Description
The SEGGER USB Hub is a 7-port industrial-grade USB hub that provides power to Flasher Compact devices and connects them to the Flasher Hub. It is tested in accordance with the EN 61326-1, EN 55011 and EN 55024/55035 standards applicable to electrical equipment for measurement, control and laboratory use. The ports are isolated. The hub is equipped with a USB type B connector as an output and 7 USB type A inputs. It is powered with voltage from 8 to 30 V through a screw connector with reverse polarity protection.
Features
- Upstream port isolation (basic isolation, 3 kV DC for 1 s)
- Single downstream port congestion limit
- USB Type B data transfer and USB Type A ports
- Screw connection for power supply
- Power supply 8-30 VDC
- Protected against reverse polarity
- Operating temperature +5°C to 60°C
- Dimensions: 170 x 166 x 35 mm
Kit contains
- USB Hub segger
- Screw connection
1187148
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
