Compact PoE module for Jetson Orin Nano/NX IEEE 802.3af/at 12 V/2.1 A - Waveshare 27439
ID: 1196643
5902186307186
zł56.81
Tax included
zł46.19 tax excl.

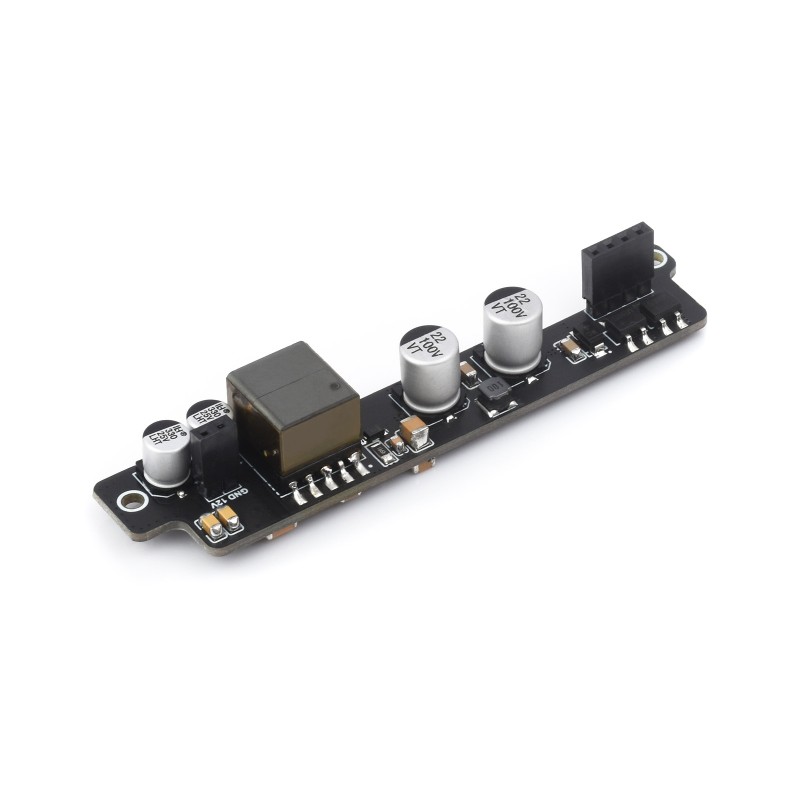

The JETSON-ORIN-POE-MODULE offers a compact IEEE 802.3af/at-compliant solution for simultaneous power supply and data transmission in devices based on Jetson Orin Nano and NX. It is ideal for environments where cable minimization and space-saving are essential, such as in industrial applications, robotics, automation, and edge AI systems.
Description
The JETSON-ORIN-POE-MODULE enables both power supply and data transmission for NVIDIA Jetson Orin Nano or Jetson Orin NX boards using a single Ethernet cable, in compliance with the IEEE 802.3af/at standard. Its compact design with a fully isolated switching power supply ensures safe and efficient 12 V / 2.1 A power delivery. The miniature form factor allows for space-saving integration in industrial projects and embedded applications.
Use requires prior soldering of a PoE connector onto the Jetson Orin base board. For heavy-duty use, additional cooling for the transformer is recommended due to high heat generation.
Features
- Designed for NVIDIA Jetson Orin Nano and Jetson Orin NX boards
- Compliant with IEEE 802.3af/at (Power over Ethernet) standard
- Power input: 37–57 V DC via PoE
- Power output: 12 V DC / 2.1 A
- Fully isolated switching mode power supply (SMPS)
- Compact dimensions: 21 × 92 mm
- Space-saving due to compact design
Included
- JETSON-ORIN-POE-MODULE x1
- 40-pin male header x1
- Mounting screw set x1
- Mini Phillips screwdriver x1
