A compact and rugged baseboard designed for machine vision, robotics, and edge AI applications. It supports multiple Jetson modules, offers a wide input voltage range, and supports a rich set of interfaces, including MIPI CSI-2, USB 3.1, and NVMe, making it ideal for mobile and industrial AI applications. Connect Tech NGX012

24h
Available
Available quantity: 2

Description

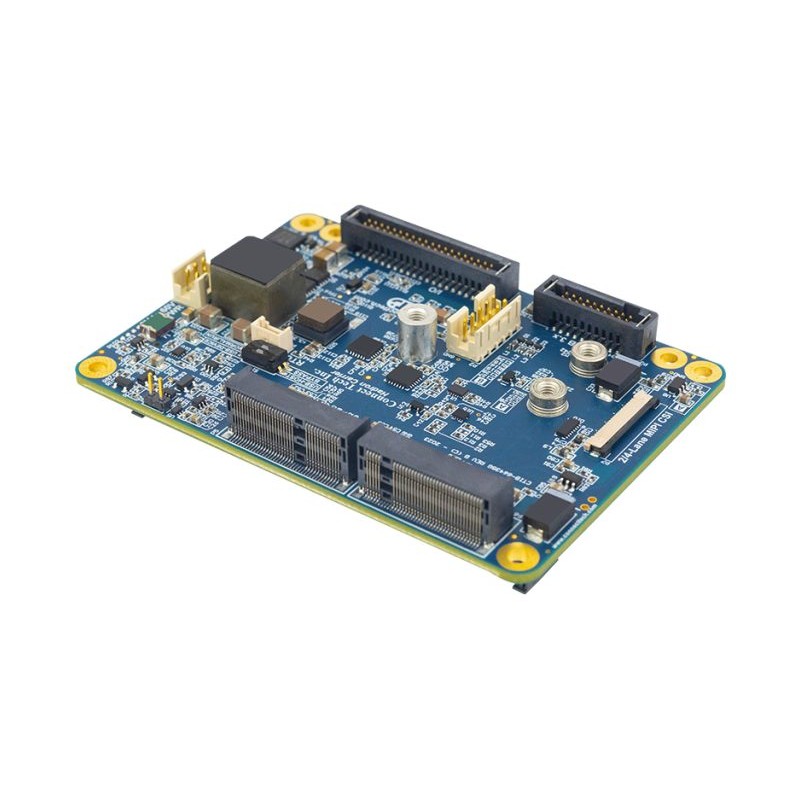

Hadron Carrier for NVIDIA Jetson Orin NX is a compact, rugged, and feature-rich baseboard designed for Edge AI applications. Thanks to its small footprint, it is ideal for use in vision systems and unmanned platforms.

Compatible with Jetson Orin™ NX, Orin™ Nano, Xavier™ NX, and TX2™ NX modules, it enables flexible compute scalability based on project requirements. It supports a wide input voltage range of 9 V to 60 V and features a rich set of I/O interfaces, including locking connectors for operation in harsh environments.


The board supports MIPI CSI-2 cameras, serial interfaces, USB 3.1, NVMe storage, and fan control. With headless mode support (no video output), it is an excellent choice for industrial, robotic, and AIoT solutions. Its low weight makes it perfect for mobile and integrated edge computing systems.

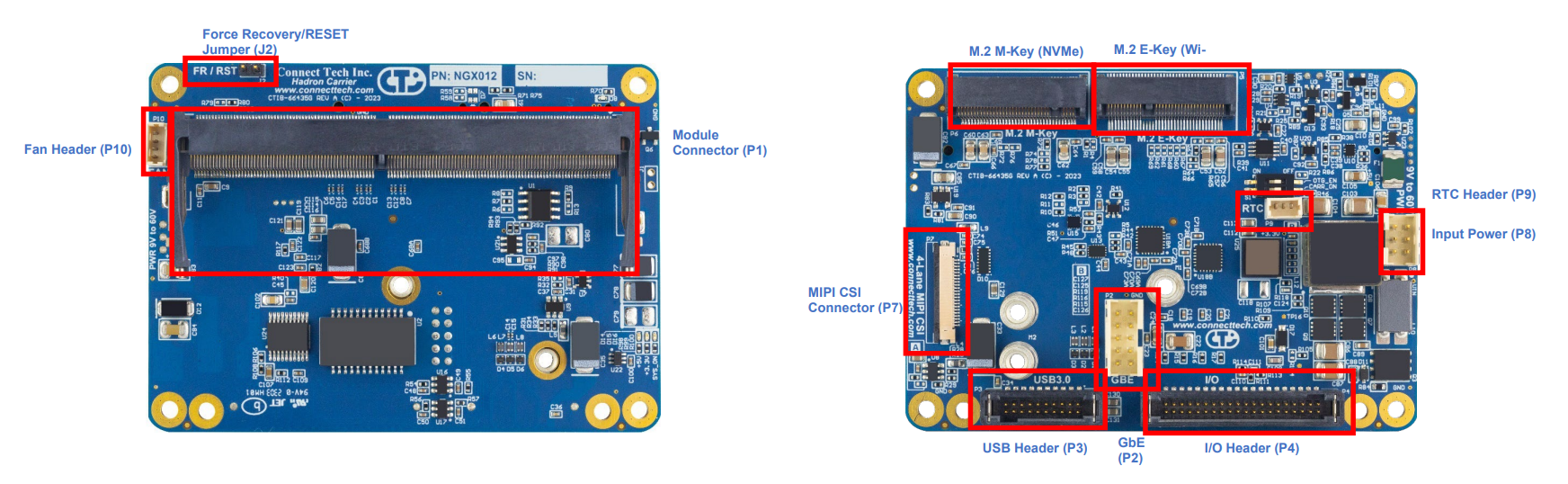

Features

  • Compatibility: Jetson Orin™ NX, Orin™ Nano, Xavier™ NX, TX2™ NX
  • Ethernet: 1x 1000BASE-T (locking connector)
  • USB: 2x USB 3.1 Gen 1, 1x USB 2.0 (programming port)
  • MIPI CSI-2: 1x 4-lane 22-pin FPC connector
  • Serial interfaces: 1x UART 3.3V TTL (console), 2x RS-232
  • GPIO: 4x GPIO (including 2 with PWM)
  • I2C: 1x 3.3V
  • SPI: 1x 3.3V
  • Power outputs: 3.3V and 5V (up to 500mA each)
  • Storage: 1x NVMe M.2 2242/2230 (M-Key)
  • Fan connector: 1x 4-pin (5V, Picoblade 1x4)
  • Power supply: 9 V to 60 V DC (recommended 12 V to 48 V)
  • RTC: 3-pin connector for backup battery
  • Cooling: passive or active
  • Humidity: 40 to 90% RH (non-condensing, frost-free)
  • Protection level: IP20
  • Operating temperature: -25°C to +85°C
  • Dimensions: 82.6 x 58.8 mm
  • Weight: 49g
