TerasIC Atum Nios V Starter Kit - development kit with Agilex 3 FPGA
ID: 1203139
zł958.47
Tax included
zł779.24 tax excl.
An evaluation platform based on the Agilex™ 3 FPGA, designed for the Altera Nios® V RISC-V processor. This kit enables rapid prototyping and learning of embedded systems thanks to pre-built examples and the built-in USB Blaster III programmer. It offers interfaces such as Gigabit Ethernet, HDMI, UART, microSD, and numerous GPIO and PMOD connectors. TerasIC P0831
Description

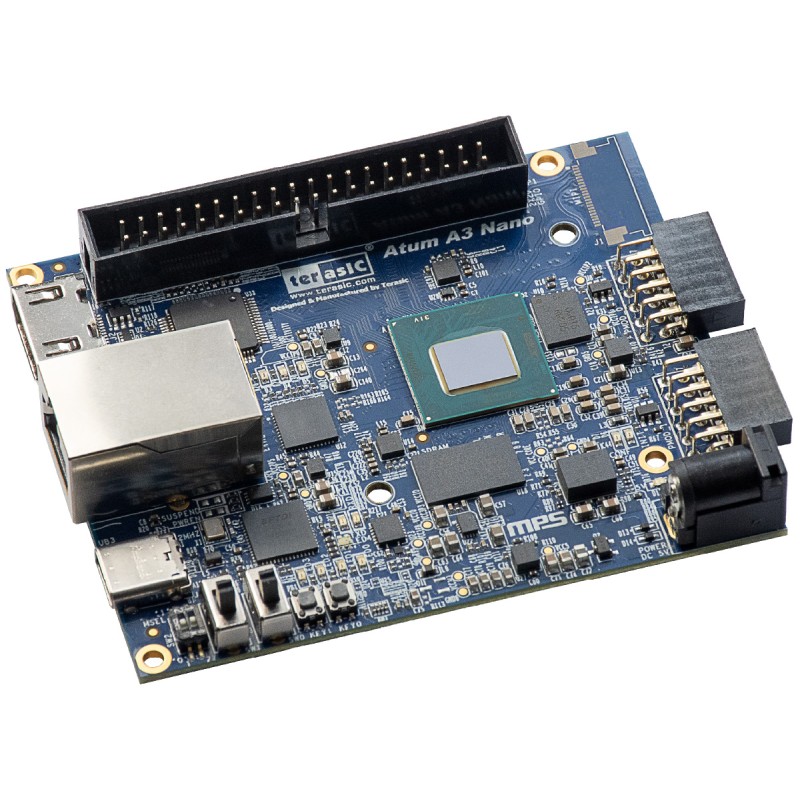

Atum Nios® V Starter Kit is a modern and versatile evaluation platform designed for embedded systems engineers who want to explore and leverage the capabilities of the Altera Nios® V RISC-V processor. The kit is ready to use straight out of the box and provides an interactive, hands-on environment for learning and rapid prototyping. Thanks to a rich set of reference designs, it enables a smooth transition from concept to a working solution. The platform is well suited for applications such as robotics, industrial automation, automotive, smart city infrastructure, consumer electronics, and computer vision and AI.
At the heart of the kit is a powerful Agilex™ 3 FPGA, providing a high degree of design flexibility. Integrated communication and multimedia interfaces enable seamless hardware and software integration. The included Quartus® Prime Pro FPGA Design Suite is available with no additional licensing fees. An additional advantage is a free one-year license for the Triple-Speed Ethernet IP, enabling the development of networking projects. The kit is designed for both beginners and advanced users who want to quickly test new architectures and modern design flows. Minimal initial setup allows users to focus on functionality development rather than environment preparation. The Atum Nios® V Starter Kit is a solid foundation for experimentation, learning, and accelerating innovative ideas.

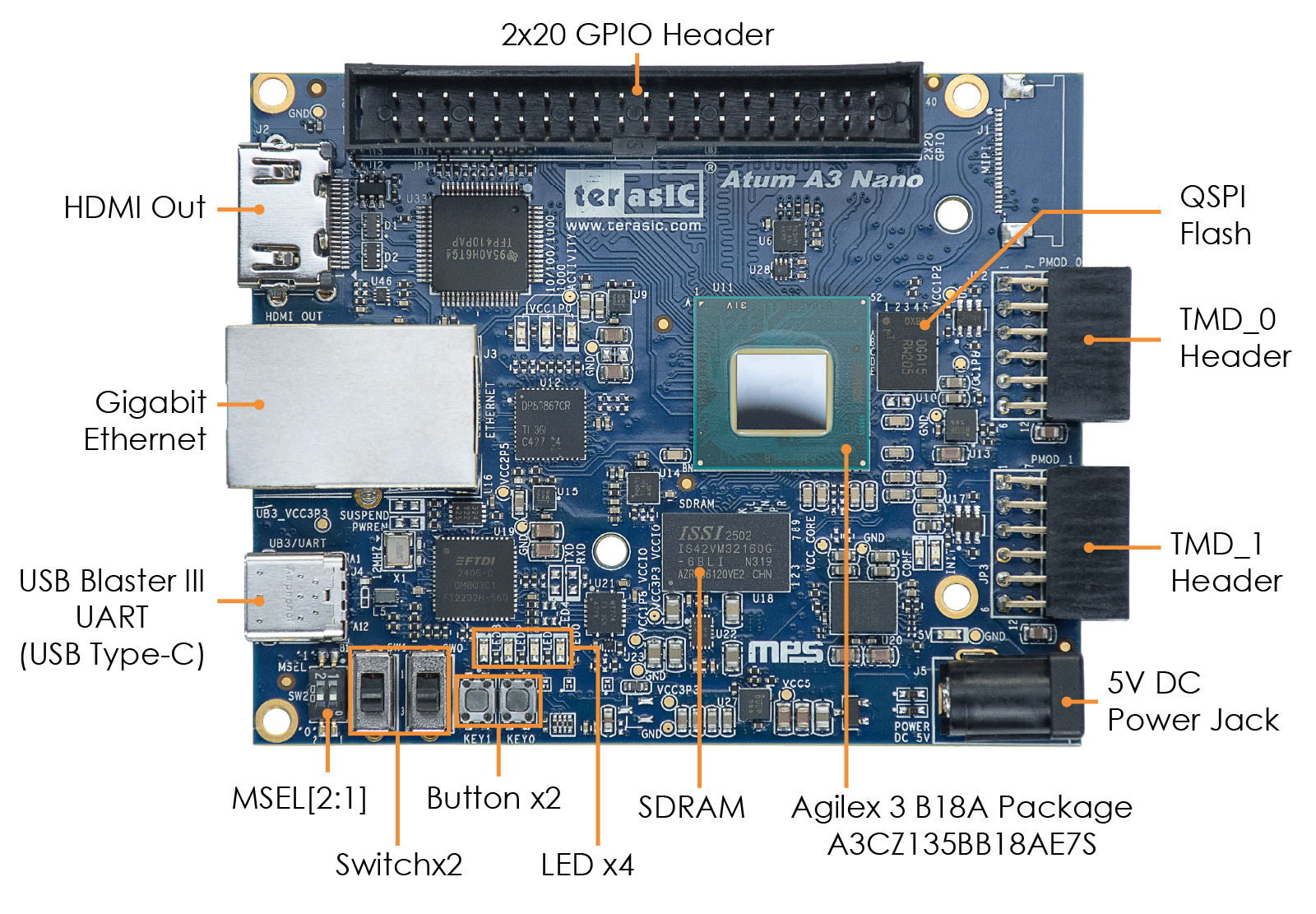

Features
- FPGA device: Agilex™ 3 A3CZ135BB18AE7S
- Number of logic elements: 135,110
- On-chip memory: 6.89 Mbit M20K and 1.4 Mbit MLAB
- DSP blocks: 368 × 18×19 multipliers
- PLLs: 4 I/O PLLs and 8 Fabric I/O PLLs
- External memory: 64 MB SDRAM (x32 data bus)
- microSD card slot
- Programming and debugging: integrated USB Blaster III (USB-C)
- Configuration memory: 128 Mbit QSPI Flash (ASx4 mode)
- Communication interfaces: Gigabit Ethernet, UART
- Video output: HDMI
- Expansion connectors: 1× GPIO 2×20 (3.3 V), 2× TMD GPIO 2×6 (PMOD, 3.3 V)
- User elements: 4 LEDs, 2 slide switches, 2 push buttons
- Power supply: 5 V DC
- Dimensions: 85 × 70 mm
Kit contains
- Atum Nios® V Starter Kit
- Heatsink (installed)
- Acrylic cover (installed)
- USB Type-C cable
- 5 V / 2 A power supply
- One-year Triple-Speed Ethernet IP license
