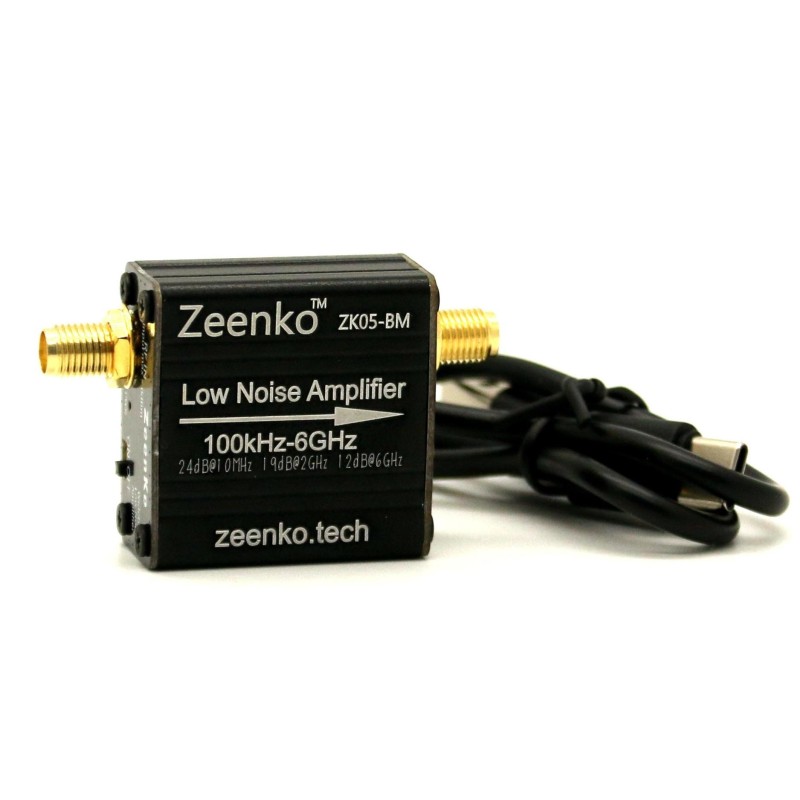

Low-noise RF amplifier 100 kHz – 6 GHz ZK05-BM Zeenko BM Series, battery powered
search
  • Low-noise RF amplifier 100 kHz – 6 GHz ZK05-BM Zeenko BM Series, battery powered
ID: 1201363
zł99.45
Tax included

zł80.85 tax excl.

Zeenko ZK05-BM is a low-noise, wideband RF amplifier with battery power, intended for operation in the 100 kHz – 6 GHz band. It offers stable gain, low distortion and a compact form, ideal for mobile, measurement and radio applications.

24h
Available
Available quantity: 10

Description

ZK05-BM is a portable, low-noise, wideband RF amplifier from the BM series by Zeenko, intended for operation in the band from 100 kHz to 6 GHz. Thanks to the built-in battery power supply and low power consumption, it works perfectly in mobile measurement and radio applications. The operating time on one charge is up to 12 hours, and charging is carried out with a current of 210 mA.

The module offers stable gain, good linearity and a low noise figure across the entire frequency range. It can be used as a replacement for the popular amplifiers TQP3M9035, QPL9058, TQP3M9037 and QPL9547.

Properties

  • Frequency range: 100 kHz – 6 GHz
  • Power supply: built-in battery
  • Charging current: 210 mA
  • Total current consumption: 230 mA
  • Battery operating time: up to 12 hours
  • Gain:
  • 25 dB @ 100 kHz / 5 MHz
  • 24 dB @ 10 MHz
  • 23 dB @ 100 MHz
  • 21.5 dB @ 1 GHz
  • 19.5 dB @ 2 GHz
  • 18.5 dB @ 3 GHz
  • 17 dB @ 4 GHz
  • 15 dB @ 5 GHz
  • 12.5 dB @ 6 GHz
  • Noise figure (NF):
  • 1.9 dB @ 10 MHz
  • 1 dB @ 100 MHz
  • 0.6–1.7 dB in the range 1–6 GHz
  • OP1dB (output power at 1 dB compression):
  • 16 dBm @ 10 MHz
  • 18 dBm @ 100 MHz – 3 GHz
  • 17 dBm @ 4 GHz
  • 15 dBm @ 5 GHz
  • 13 dBm @ 6 GHz
  • OIP3 (third-order intercept point):
  • 23 dBm @ 10 MHz
  • 24 dBm @ 100 MHz
  • 25 dBm @ 1 GHz
  • 22 dBm @ 2 GHz
  • 21 dBm @ 3 GHz
  • 20 dBm @ 4 GHz
  • 15 dBm @ 5 GHz
  • 13 dBm @ 6 GHz
  • Notes: low power consumption, low-noise, wideband battery amplifier
  • Can be used as a replacement for: TQP3M9035, QPL9058, TQP3M9037, QPL9547
