SDR receiver with dipole antenna kit RTL-SDR Blog V3 R860
ID: 1199343
5902186314795
zł405.90
Tax included
zł330.00 tax excl.
RTL-SDR Blog V3 R860 (R820T2) is a high-quality SDR receiver with 1PPM TCXO and bias-tee, operating in the 500 kHz – 1.7 GHz range. The set includes dipole antennas for receiving signals from multiple bands such as ADS-B, AIS, NOAA, aviation, satellite, and radio communication. The device is a versatile tool for radio hobbyists and SDR system users.
Description
RTL-SDR Blog V3 R860 is an SDR (Software Defined Radio) receiver based on the RTL2832U chip with R820T2/R860 tuner and a 1PPM TCXO stabilized crystal. The device allows reception in the frequency range from 500 kHz to 1.7 GHz with a maximum bandwidth of 3.2 MHz (stable at 2.4 MHz). Built-in features include direct sampling mode for HF bands and a software-activated bias-tee for powering LNAs or active antennas. The aluminum enclosure with passive cooling and additional ESD protection ensures high stability and durability.
The set includes a multifunction dipole antenna with telescopic elements and mounting accessories, making it easy to receive various bands – from ADS-B signals (1090 MHz), through aviation and satellite bands (137 MHz), down to lower VHF/UHF frequencies. The receiver works with popular software such as SDR# (SDRSharp), HDSDR, SDR-Radio, GQRX, or SDR Touch (Android), and is compatible with Windows, Linux, macOS, as well as single-board computers like Raspberry Pi.
Properties
- Chipset: RTL2832U + tuner R820T2/R860
- Frequency stability: TCXO 1PPM
- Frequency range: 500 kHz – 1.7 GHz
- Bandwidth: up to 3.2 MHz (2.4 MHz stable)
- Antenna connector: SMA (female)
- Enclosure: aluminum, black, with passive cooling
- Bias-Tee: software-activated, for powering LNAs/active antennas
- Protections: additional ESD protection
- Systems: Windows, Linux, macOS, Android, Raspberry Pi

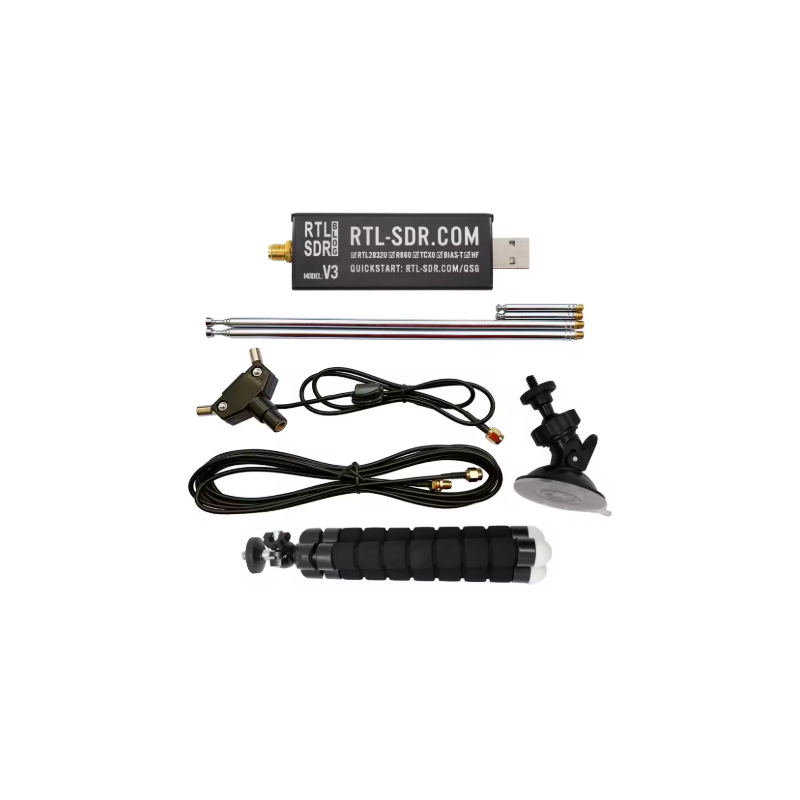

Included
- RTL-SDR Blog V3 receiver (SMA dongle, 1PPM TCXO, aluminum enclosure)
- Dipole base with RG174 cable (60 cm)
- 2 × telescopic antennas 23–100 cm
- 2 × telescopic antennas 5–13 cm
- RG174 extension cable (3 m)
- Flexible tripod mount
- Suction cup mount
1199343
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
