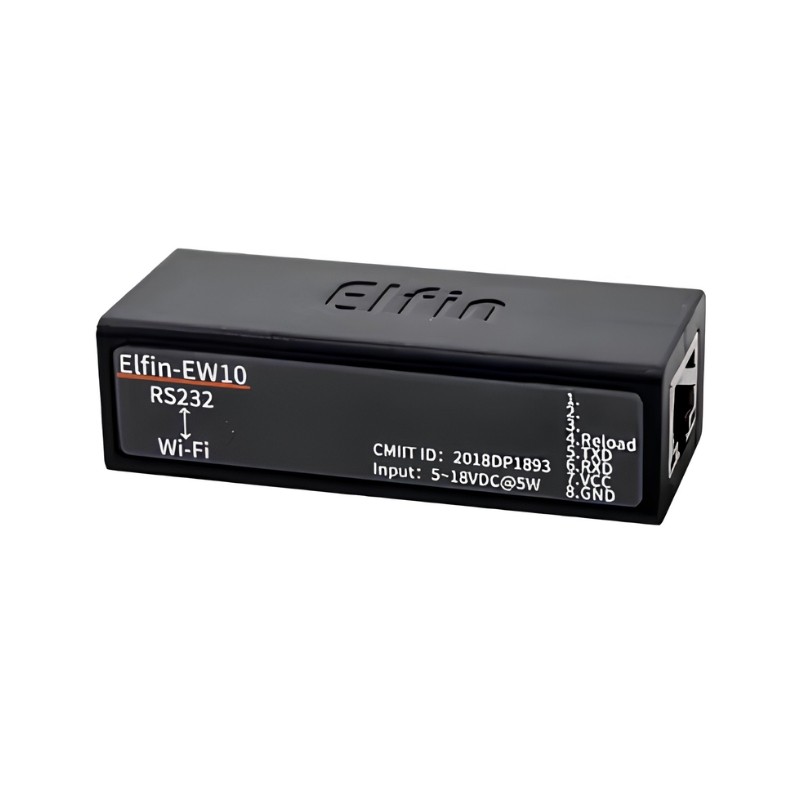

RS232 to WiFi converter designed for industrial automation, IoT and serial communication systems. The ELFIN EW10A version equipped exclusively with an internal antenna supports WiFi 802.11 b/g/n, TCP/IP and Modbus TCP protocols, and operates from a 5 V to 36 V DC power supply range. ELFIN EW10A

4 weeks
Awaiting delivery

Description

The module enables wireless communication for devices equipped with an RS232 interface via a WiFi network. The ELFIN EW10A version uses an internal antenna only, which simplifies installation inside compact enclosures, embedded devices and industrial control cabinets without the need for an external antenna connection. The device transfers data between the serial interface and TCP/IP network, making it suitable for industrial automation, telemetry systems, PLC controllers and IoT applications.


The module supports WiFi 802.11 b/g/n as well as TCP, UDP, HTTP, Telnet and Modbus TCP protocols. STA, AP and AP+STA operating modes allow connection to an existing wireless network or operation as an access point. Configuration is available through a web interface, Telnet or AT commands. The wide 5 V to 36 V DC input range enables integration with various industrial and communication systems.

Features

  • RS232 to WiFi conversion
  • Built-in internal antenna
  • Support for WiFi 802.11 b/g/n
  • Support for TCP, UDP, DHCP, DNS, HTTP, Telnet, WebSocket, NTP and Modbus TCP protocols
  • STA, AP and AP+STA operating modes
  • Configuration via web interface, Telnet and AT commands
  • Support for TLS v1.2, AES128 and 3DES encryption
  • Modbus RTU to Modbus TCP conversion support
  • OTA remote firmware update support
  • Reverse polarity power protection
  • Cortex-M3 processor / 160 MHz
  • 2 MB Flash memory
  • 352 KB RAM
  • Serial baud rate: 300 bps – 230400 bps
  • WiFi operating frequency: 2.412 GHz – 2.484 GHz
  • Transmit power:
  • 802.11b: +18 dBm
  • 802.11g: +16 dBm
  • 802.11n: +15 dBm
  • Receiver sensitivity:
  • 802.11b: -89 dBm
  • 802.11g: -81 dBm
  • 802.11n: -71 dBm
  • Data bits: 7 / 8
  • Stop bits: 1 / 2
  • Parity: None / Even / Odd
  • Flow control: none / XON-XOFF
  • Supply voltage range: 5 V – 36 V DC
  • Maximum current consumption: 200 mA
  • Operating temperature: -40°C to +85°C
  • Dimensions: 61 × 26 × 18 mm
  • Certifications: FCC, CE, RoHS

Kit includes

  • ELFIN EW10A module
