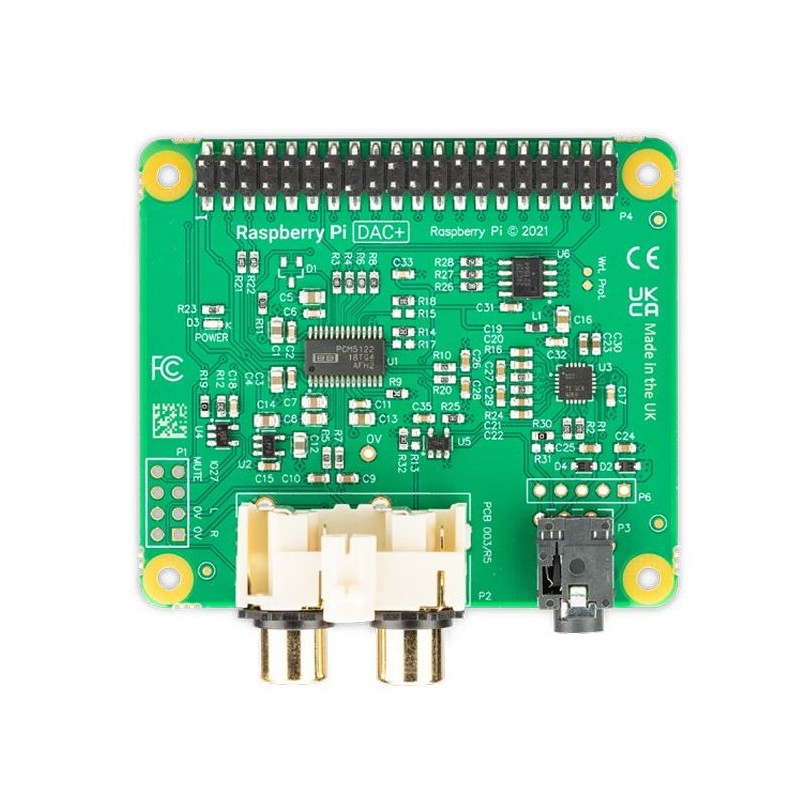

Raspberry Pi DAC+ - Audio HAT for Raspberry Pi
ID: 1188887
5056561802374
zł92.66
Tax included
zł75.33 tax excl.
Audio HAT designed for Raspberry Pi computers equipped with a 40-pin GPIO header. Supports 24-bit / 192 kHz stereo audio playback through RCA outputs and a 3.5 mm headphone jack. Features a Texas Instruments PCM5122 digital-to-analog converter. Raspberry Pi DAC+
Description
The Raspberry Pi DAC+ expands Raspberry Pi computers with a high-quality analogue audio output. The HAT is compatible with all Raspberry Pi models equipped with a 40-pin GPIO header and incorporates a Texas Instruments PCM5122 digital-to-analogue converter, supporting stereo audio playback at up to 24-bit / 192 kHz.
Audio output is available through a pair of RCA connectors and a 3.5 mm headphone jack with a dedicated headphone amplifier. The board connects directly to the GPIO header without soldering or additional cables and is powered directly from the Raspberry Pi. It is suitable for media players, audio systems and other projects requiring high-quality analogue audio output.
Features
- Compatible with Raspberry Pi computers equipped with a 40-pin GPIO header
- Texas Instruments PCM5122 digital-to-analogue converter
- Supports 24-bit / 192 kHz stereo audio playback
- Analogue audio output via dual RCA connectors
- Dedicated headphone amplifier with 3.5 mm headphone output
- Direct GPIO installation without soldering
- Powered directly from Raspberry Pi
- 40-pin GPIO pass-through header
- Dimensions: 58 × 65 mm
1188887
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
