RP2350 MCU board with 1.28″ round touch LCD 240×240 - Waveshare 29025
ID: 1197469
5902186307643
zł86.91
Tax included
zł70.66 tax excl.
RP2350-Touch-LCD-1.28 is a modern development board with a color touch screen, dedicated to embedded project creators who require high performance and compact dimensions. Thanks to support for two architectures and open-source software, the module is perfectly suited for creating intelligent HMI devices, portable applications, and systems requiring versatile communication and user interaction.
Description

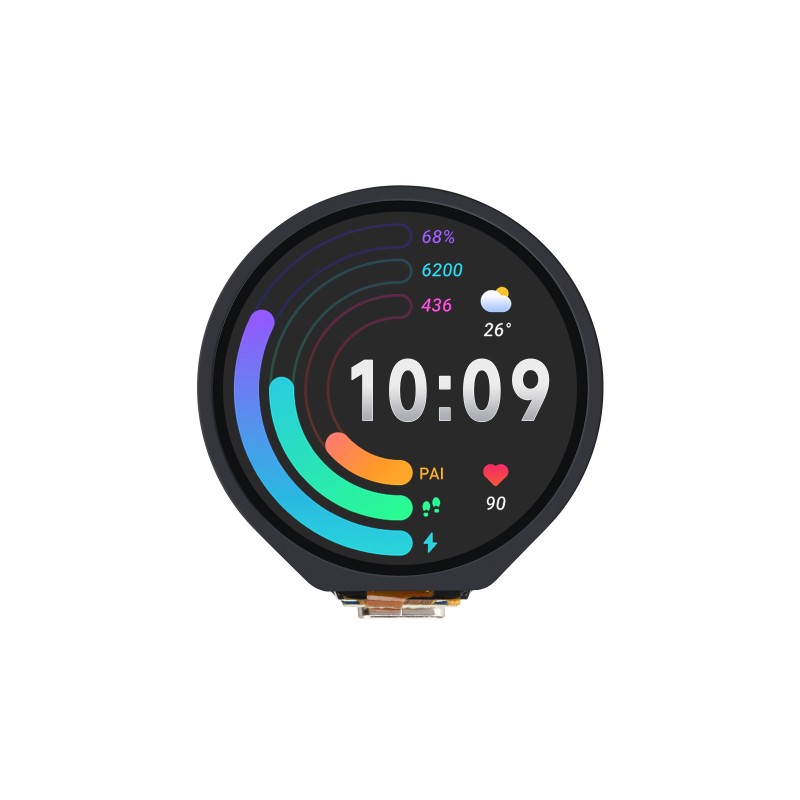

RP2350-Touch-LCD-1.28 is a compact development board based on the RP2350 microcontroller designed by Raspberry Pi. This chip combines a dual-core Arm Cortex-M33 architecture with Hazard3 RISC-V, enabling simultaneous code testing for both platforms within a single hardware structure. Onboard is a 1.28-inch color capacitive touch screen with a resolution of 240×240 pixels.
The module is equipped with an IMU sensor (QMI8658 – accelerometer + gyroscope), a Li-Ion battery charging management chip, a USB Type-C connector, and 16 MB Flash memory. It supports drag-and-drop programming via USB and offers 6 GPIO lines through an SH1.0 connector. The board is intended for integration with mobile devices and interactive HMI systems.
Features
- Microcontroller: RP2350 – 2× ARM Cortex-M33 + 2× Hazard3 RISC-V, up to 150 MHz
- Memory: 520 KB SRAM, 16 MB NOR Flash (W25Q128JVSIQ)
- Display: IPS 1.28”, 240×240, capacitive touch, 65K colors
- Sensors: QMI8658 (6DOF IMU), temperature sensor
- USB 1.1 (host and device), USB Type-C connector
- Li-Ion charging IC: ETA6098, MX1.25 2P connector
- 6 GPIO via SH1.0 connector
- Sleep and low-power operation modes
- Programming support: C/C++, MicroPython, Arduino
- No enclosure – ready for user product integration
Included in the set
- RP2350-Touch-LCD-1.28 x1
- SH1.0 12PIN cable x1
1197469
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 6
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 40,3 mm
- Width
- 38,5 mm
- USB connector type
- USB type C
