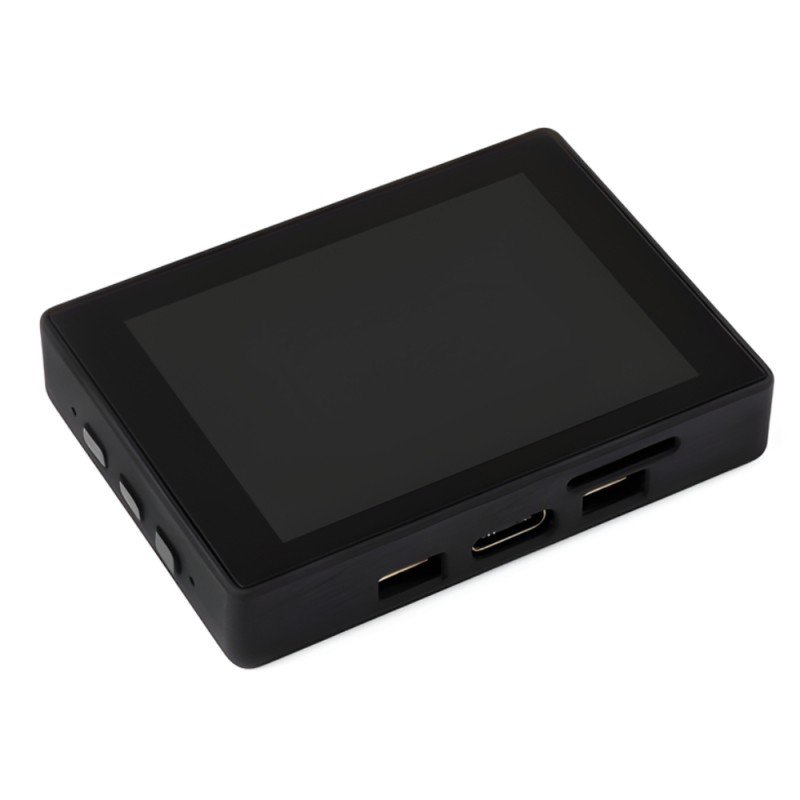

Development board with RP2350B microcontroller, 2.41" AMOLED touch display, 450 x 600 px resolution, QSPI interface, 6-axis sensor, RTC, TF card slot and Li-ion battery connector, version with protective case. Waveshare RP2350-Touch-AMOLED-2.41-B

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Development board with RP2350B microcontroller and a 2.41" AMOLED capacitive touch display enables building compact user interfaces, portable devices and embedded systems. The version with protective case protects the board and display while allowing convenient use in final applications and mobile projects.


The module is based on the RP2350B featuring a dual-core, dual-architecture design supporting ARM Cortex-M33 and Hazard3 RISC-V cores. The board integrates 16 MB Flash memory, 2 MB PSRAM, RTC, and a 6-axis sensor combining an accelerometer and gyroscope. A TF card slot and lithium battery connector support mobile applications. The AMOLED display with 450 x 600 px resolution uses a QSPI interface, while capacitive touch is handled by the FT6336 controller via I2C.

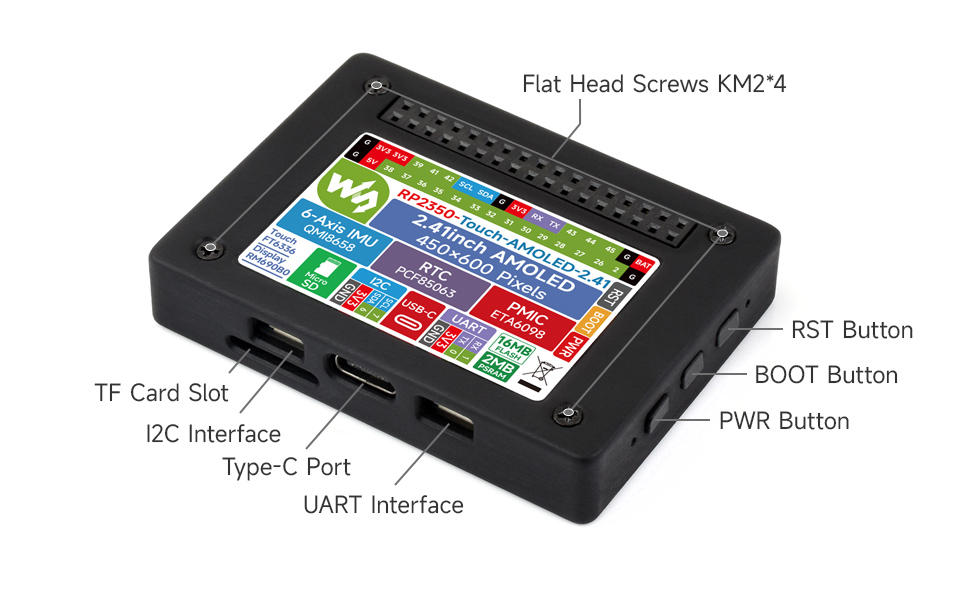

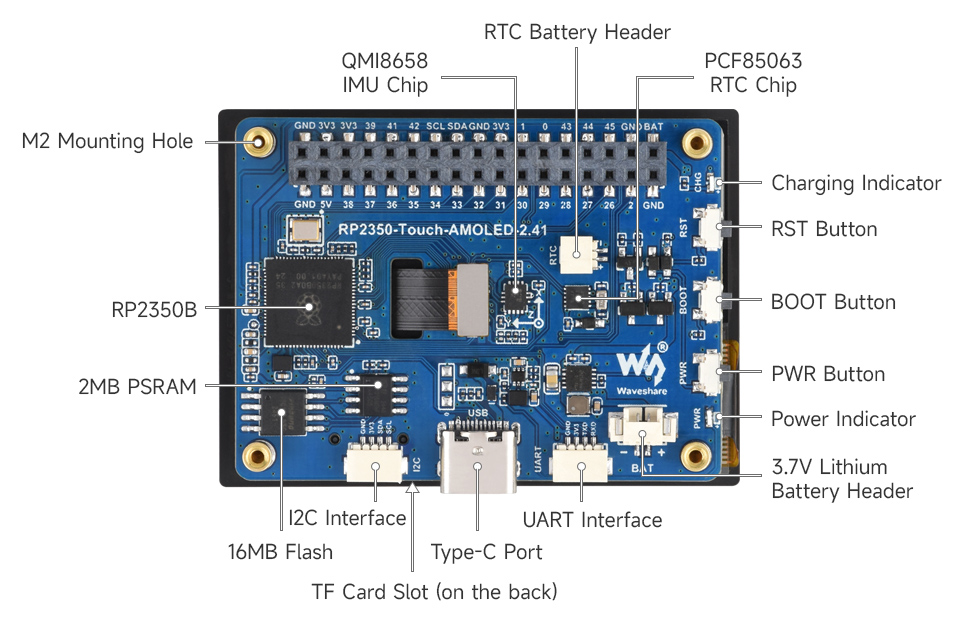

  p1203959-RP2350-Touch-AMOLED-2.41-details-15.jpgp1203959-RP2350-Touch-AMOLED-2.41-details-13.jpg

The USB Type-C connector enables power supply, programming and data transfer. The board supports C/C++, MicroPython and Arduino IDE, making it suitable for control panels, measurement devices, HMI interfaces and portable IoT systems.

                                                                                Pinout definition

p1203960-RP2350-Touch-AMOLED-2.41-details-inter.jpgp1203960-RP2350-Touch-AMOLED-2.41-details-17.jpg

Features

  • Microcontroller: RP2350B
  • Core architecture: dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V
  • Clock frequency: up to 150 MHz
  • SRAM: 520 kB
  • Flash memory: 16 MB
  • PSRAM: 2 MB
  • Display: AMOLED 2.41"
  • Resolution: 450 x 600 px
  • Colors: 16.7M
  • Brightness: 800 cd/m2
  • Contrast ratio: 100000:1
  • Viewing angle: 178°
  • Display driver: RM690B0
  • Touch: capacitive
  • Touch controller: FT6336
  • Display interface: QSPI
  • Touch interface: I2C
  • Motion sensor: 6-axis accelerometer and gyroscope
  • RTC: yes
  • USB connector: USB Type-C
  • USB: 1.1 device and host
  • TF card slot: yes
  • Li-ion battery connector: yes
  • GPIO: 21 multifunction pins
  • I2C: 2
  • UART: 2
  • ADC: 6 channels 12-bit
  • PWM: 15 channels
  • PIO: 12 state machines
  • Low power modes: sleep, dormant
  • Temperature sensor: yes
  • Programming: C/C++, MicroPython, Arduino IDE
  • Weight: 19 g
  • Version: with protective case

Kit includes

  • RP2350-Touch-AMOLED-2.41-B board
  • SH1.0 4PIN cable x2
1203959

Data sheet

Microcontroller
RP2350B
Flash memory
16 MB
Number of I/O
21
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes

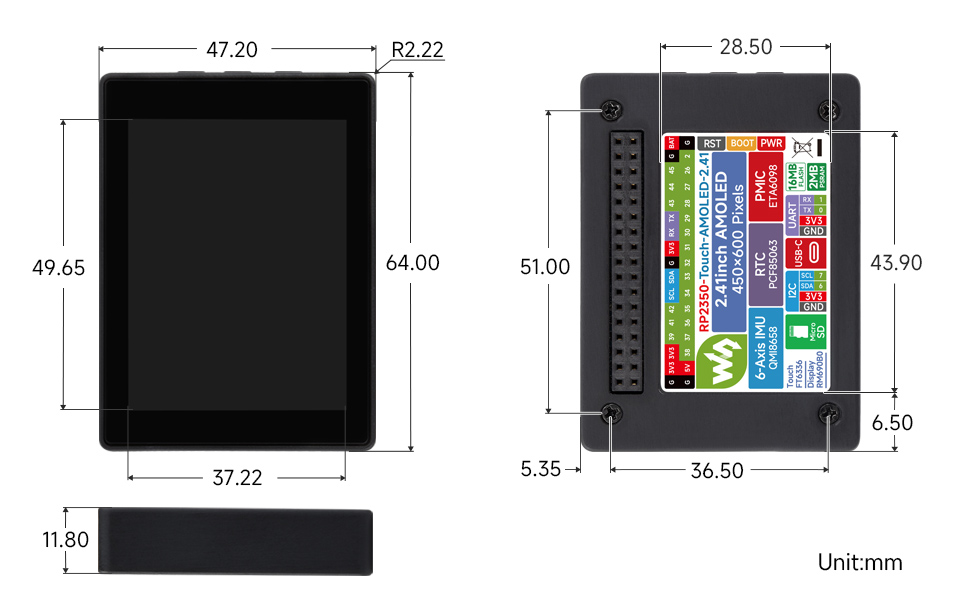

Length
64 mm
Width
47.20 mm
USB connector type
USB type C
