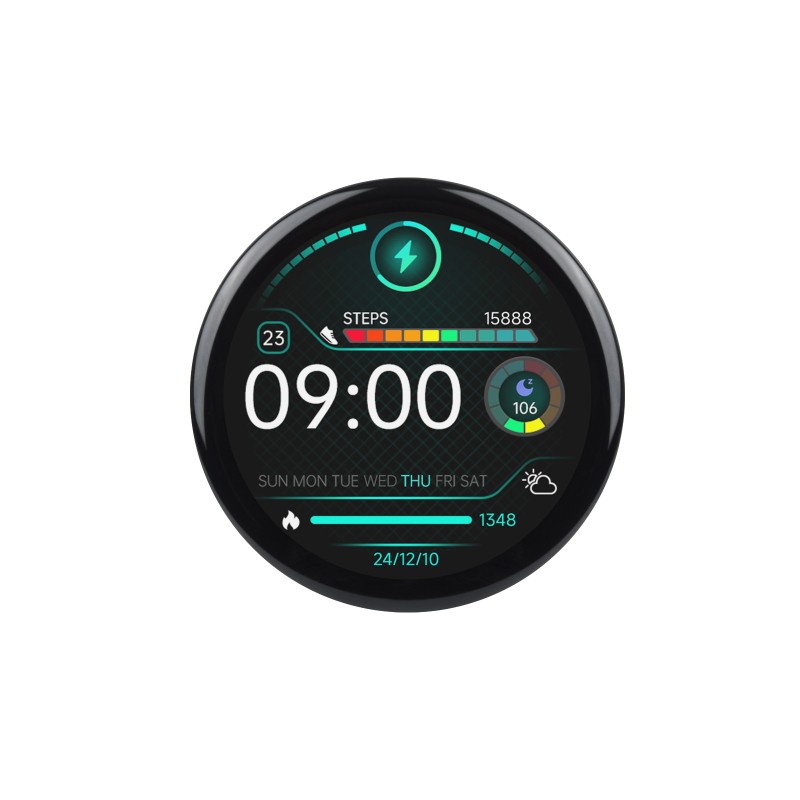

  • Main view
  • Display off
  • Internal top view
  • Internal angled view 1
  • Internal angled view 2
ID: 1202663
zł106.32
Tax included

zł86.44 tax excl.

RP2350 development board featuring a 1.46″ round capacitive IPS touch display with 480×480 resolution, multi-touch support, integrated IMU and RTC sensors, rich peripheral interfaces, and protective cover glass. RP2350-Touch-LCD-1.46 Waveshare 32867

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The RP2350-Touch-LCD-1.46 is designed for compact projects that require a graphical user interface, touch input, and integration of multiple peripheral functions on a single board. The device is based on the RP2350B microcontroller designed by Raspberry Pi, offering a unique dual-core, dual-architecture design with a choice of ARM Cortex-M33 cores or Hazard3 RISC-V cores, running at up to 150 MHz.

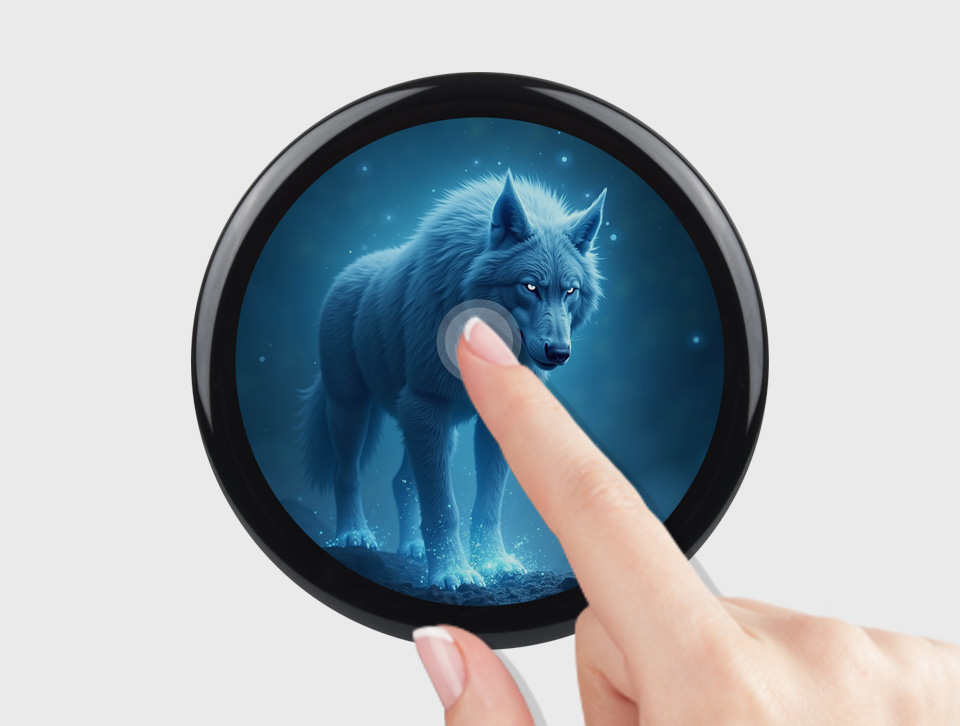

The integrated 1.46″ round IPS display with a resolution of 480×480 provides good readability and wide viewing angles. The capacitive touch panel supports up to 5 touch points and communicates via the I2C interface with interrupt support, enabling smooth and responsive user interaction.


The board is equipped with a 6-axis IMU sensor, RTC clock, audio codec, microphone, speaker, and a TF card slot. The USB Type-C connector enables drag-and-drop programming and supports USB 1.1 device and host modes. This version is fitted with protective cover glass, which increases resistance to mechanical damage while maintaining full touch functionality.

                                                                                                                                    Onboard resources


  1. RP2350B - Dual-core and dual-architecture design, up to 150MHz operating frequency
  2. QMI8658 - 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  3. 1.27mm pin header - adapting GPIO and other functional pins
  4. RTC chip - PCF85063 RTC chip
  5. Batt. recharge manager
  6. Microphone
  7. RTC batt. header - for connecting rechargeable RTC batt.
  8. Power indicator
  9. USB Type-C port - for programming, USB 1.1 with device and host support
  10. Charge indicator - Lithium batt. charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the batt. is not connected)
  11. BOOT button - Press it when resetting to enter download mode
  12. ES8311 - low-power audio codec chip
  13. 16MB Flash
  14. Speaker
  15. PWR button - for power supply ON/OFF, supports custom functions
  16. MX1.25 batt. header - MX1.25 2PIN connector, for 3.7V Lithium batt., supports charging and discharging
  17. TF card slot
  18. Amplifier chip

                                                                                                                                       Pin definition


Features

  • Microcontroller: RP2350B
  • Architecture: Dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V
  • Maximum clock frequency: up to 150 MHz
  • RAM: 520 kB SRAM
  • Flash memory: 16 MB
  • Display: 1.46″ round IPS, capacitive touch
  • Display resolution: 480 × 480
  • Color depth: 65K colors
  • Touch support: Up to 5 touch points, I2C interface with interrupt support
  • IMU sensor: 6-axis accelerometer and gyroscope
  • RTC: PCF85063
  • USB interface: USB Type-C, USB 1.1 host and device
  • Interfaces: 2× I2C, 2× UART, GPIO, ADC, PWM, PIO
  • GPIO count: 14 multifunction pins
  • Card slot: TF
  • Audio: ES8311 codec, microphone, speaker
  • Power supply: 5 V via USB Type-C or 3.7 V Li-Ion/Li-Po battery
  • Battery connector: MX1.25 2-pin
  • Power saving modes: Sleep, dormant
  • Supported environments: C/C++, MicroPython, Arduino IDE
  • Weight: 18 g
1202663

Data sheet

Microcontroller
RP2350B
Flash memory
16 MB
Number of I/O
14
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes
Length
44,7 mm
Width
44,77 mm
USB connector type
USB type C
