zł66.97 tax excl.
NeoPixel 8-channel RGB LED driver. It features an RP2040 microcontroller with two ARM Cortex-M0+ cores, 264 kB of RAM and 8 MB of external Flash memory. Adafruit 5650
Description
The Adafruit Feather RP2040 SCORPIO is a board featuring the RP2040 microcontroller designed by the Raspberry Pi Foundation. The chip has two ARM Cortex M0+ cores running at up to 133 MHz and 264 kB of RAM. The microcontroller is not equipped with flash memory, but there is an external memory of 8 MB on the board connected via the QSPI interface.
On the board, in addition to the RP2040 chip and flash memory, the user will find a 3.3V voltage stabilizer, Boot and Reset buttons, NeoPixel LEDs and RGB LEDs, a USB type C connector for powering and programming the module, and 21 GPIO outputs, where peripherals such as four 12-bit ADC inputs, 16 PWM outputs, two I2C, SPI and UART interfaces are brought out.
The module is designed to control NeoPixel (WS2812) RGB LED strips. It has 8 PWM outputs connected to DMA so that the process of controlling NeoPixel LEDs puts very little load on the microcontroller core. The board has a rich set of other interfaces, which makes it successfully applicable to other projects as well.
The platform supports the popular MicroPython and C/C++ programming languages. Programs can be loaded into the memory via USB using the built-in bootloader or an external programmer via the SWD interface. Full documentation and usage examples are available on the product page.
Features
- RP2040 microcontroller designed by Raspberry Pi
- Two ARM Cortex-M0+ cores clocked at up to 133 MHz
- 264 kB of on-board SRAM
- Real-time clock (RTC)
- 3.3 V 500 mA voltage regulator
- 200 mA battery charging circuit
- Built-in USB Type C connector for programming with USB 1.1 operating in Host and Device modes
- 21 x multi-function GPIO pins
- 4 x 12-bit ADC inputs with internal temperature sensor, 0.5 MSa/sec.
- 16 PWM channels
- 2 x UART
- 2 x I2C
- 2 x SPI
- 8 outputs to control NeoPixel LEDs (WS2812)
- Reset and Boot buttons
- LED and NeoPixel LEDs
- LiPo battery connector
- STEMMA QT connector compatible with Qwiic and Grove systems
- SWD interface connector
- 8 MB of external flash memory
- Supported programming languages: CircuitPython and C/C++
- Dimensions: 52 x 22.8 x 7.2 mm
Kit contains
- Feather RP2040 SCORPIO development board
- Connector kit
Data sheet
- Microcontroller
- RP2040
- Flash memory
- 8 MB
- Number of I/O
- 21
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 52 mm
- Width
- 22,8 mm
- USB connector type
- microUSB type B
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Flora NeoPixel 60 RGB LED Strip in Reel - White Backing. Adafruit 1138
No product available!
Flora NeoPixel 30 RGB LED Strip in Reel - White Backing. Adafruit 1376
No product available!
Waterproof NeoPixel tape with RGB LED diodes with a length of 2 m, 60 LEDs per meter, diodes are mounted on an elastic PCB in black. Adafruit 1376
Cable with USB type A and USB type C plugs, length 1m, white
No product available!
Cable with USB type A and USB type C plugs, length 2m, white
No product available!
4-wire cable with a length of 100 mm. Both ends with STEMMA QT (Qwiic) plug. Adafruit 4210
No product available!
4-core cable with a length of 200 mm. Both ends with STEMMA QT (Qwiic) plug. Adafruit 4401
4-core cable with a length of 300 mm. Both ends with STEMMA QT (Qwiic) plug. Adafruit 5384
No product available!
Other products in the same category (16)
Module with a 2.9" ePaper display and a Raspberry Pi Pico W board equipped with WiFi communication. It has a built-in Qwiic/Stemma QT connector with an I2C interface, buttons and a battery connector. Perfect as a display for a weather station. Pimoroni PIM669
Expansion module with a Raspberry Pi Pico W board equipped with WiFi communication. The module has a built-in relay, buffer inputs, sink outputs and analog inputs. Perfect for controlling fans, pumps, solenoid valves, large motors, electronic locks or LED lighting. Pimoroni PIM652
No product available!
Module with a 1.14" IPS LCD display with a resolution of 240x135 px and a monochrome HM01B0 camera. Equipped with an RP2040 microcontroller. Waveshare PICO-Cam-A
No product available!
Module with a round 1.28" IPS LCD touch display with a resolution of 240x240 px and an RP2040 microcontroller. Equipped with an accelerometer and gyroscope. Enclosed in a nice metal housing. Waveshare RP2040-Touch-LCD-1.28-B
Module with a round 1.28" IPS LCD display with a resolution of 240x240 px and an RP2040 microcontroller. Equipped with an accelerometer and gyroscope. Enclosed in a nice metal housing. Waveshare RP2040-LCD-1.28-B
The RP2040 MCU board combines the high performance of two ARM Cortex M0+ cores clocked at up to 133 MHz, with 264 KB of SRAM, 2 MB of Flash, and integrated Bluetooth 5.1 for easy wireless communication. With simple programming, multiple GPIO interfaces, and support for C/C++, MicroPython, and Arduino, the board is ideal for IoT projects and other advanced applications. It comes with a USB Type-C adapter. Waveshare RP2040-BLE-Kit
The RP2040 MCU board combines the high performance of two ARM Cortex M0+ cores clocked at up to 133 MHz, with 264 KB of SRAM, 2 MB of Flash, and integrated Bluetooth 5.1 for easy wireless communication. With simple programming, multiple GPIO interfaces, and support for C/C++, MicroPython, and Arduino, the board is ideal for IoT projects and other advanced applications. Waveshare RP2040-BLE
Module with a round 0.99" IPS LCD display with a resolution of 128x115 px and an RP2040 microcontroller. Equipped with an accelerometer and gyroscope. Enclosed in a nice metal housing. Waveshare RP2040-LCD-0.99-B
Camera adapter based on Raspberry RP2040, dedicated to TinyML development. is equipped with a 2.4-inch LCD screen, microphone, camera connectors and an IMU module. It allows you to take photos, use WiFi, SD card and USB mass storage. ArduCam B0432
Raspberry Pi Pico 2, based on the RP2350 microcontroller, using the application and functional applications of the Cortex M33 and RISC-V cores, doubled SRAM memory and advanced security function, including Arm TrustZone. It is hardware and software with a connected model, which provides an attractive operation for enthusiasts and specialists in systems used
Raspberry Pi Pico 2W, based on the RP2350 microcontroller and has a built-in WiFi and Bluetooth communication module. Pi Pico 2W offers significantly increased performance and functionality thanks to the use of Cortex M33 and RISC-V cores, doubled SRAM memory and advanced security features, including Arm TrustZone. It is hardware and software compatible with previous models, making it an attractive choice for enthusiasts and professionals in the field of embedded systems
An enhanced version of the Raspberry Pi Pico 2 with access to all 48 GPIO pins and an RP2350B microcontroller (Cortex-M33 or RISC-V) clocked at up to 150 MHz. It offers 16 MB of Flash, 8 MB of RAM, and a microSD card reader, making it ideal for complex embedded and IoT projects. With USB-C, Qwiic/Stemma Qt, UEXT connectors, and BOOT/RESET buttons, it offers high flexibility and easy integration with peripherals. Olimex RP2350-PICO2-XXL
Raspberry Pi Pico 2 H, based on the RP2350 microcontroller, using the application and functional applications of the Cortex M33 and RISC-V cores, doubled SRAM memory and advanced security function, including Arm TrustZone. It is hardware and software with a connected model, which provides an attractive operation for enthusiasts and specialists in systems used. Version with joints.
Raspberry Pi Pico 2WH, based on the RP2350 microcontroller and has a built-in WiFi and Bluetooth communication module. Pi Pico 2WH offers significantly increased performance and functionality thanks to the use of Cortex M33 and RISC-V cores, doubled SRAM memory and advanced security features, including Arm TrustZone. It is hardware and software compatible with previous models, making it an attractive choice for enthusiasts and professionals in the field of embedded systems. Version with soldered joints.

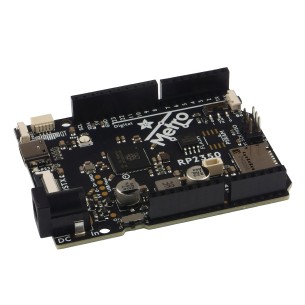

A powerful development board based on the Raspberry Pi RP2350 chip with a dual-core Cortex M33 150 MHz processor and 528 KB RAM, offering 37 GPIO pins and 16 MB of QSPI Flash memory. It supports power supply via USB-C or DC, has a DVI connector, microSD slot, Pico Probe debug port and programmable UF2 bootloader. Thanks to the wide support of programming languages (C/C++, MicroPython, CircuitPython, Arduino), it will be suitable for both educational projects and advanced embedded solutions. Adafruit 6003
