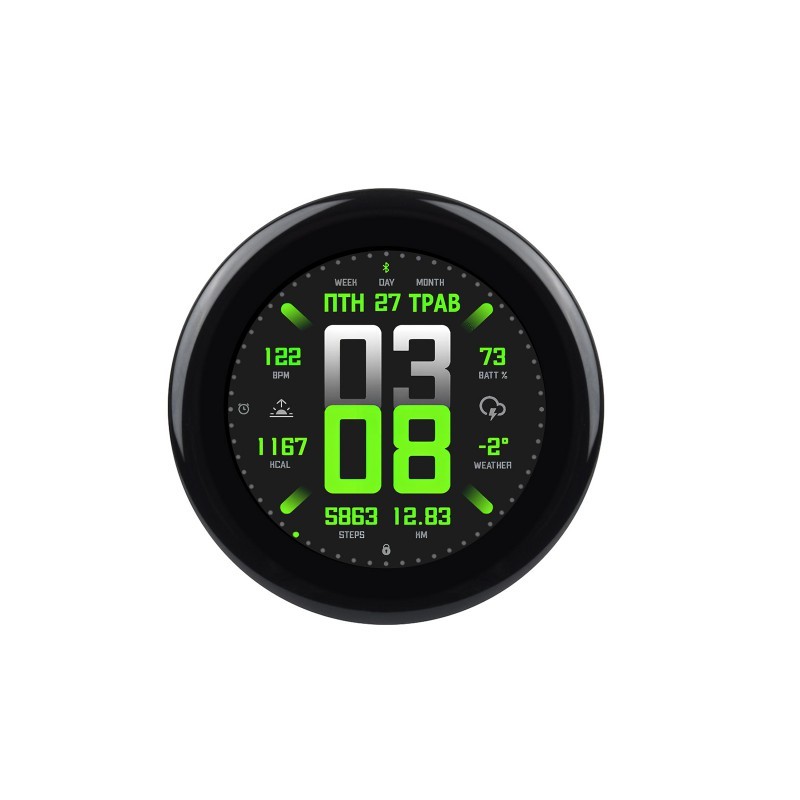

Main view
search
  • Main view
  • Top view – display off
  • Top view – controller board
  • Angled view – display off
  • Angled view – controller board
ID: 1202677
zł142.46
Tax included

zł115.82 tax excl.

Development board based on the RP2350 microcontroller, featuring a 2.1" round IPS display with a resolution of 480 x 480 px, a capacitive touch panel, and an extensive set of peripheral interfaces. Waveshare RP2350-Touch-LCD-2.1B

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare RP2350-Touch-LCD-2.1B is designed for the development and prototyping of devices with graphical user interfaces. The board is based on the RP2350B microcontroller designed by Raspberry Pi and features a dual-core architecture with a choice between ARM Cortex-M33 cores or Hazard3 RISC-V cores. The microcontroller operates at a clock frequency of up to 150 MHz and includes 520 kB of SRAM and 16 MB of onboard Flash memory, with the option to expand using external PSRAM.

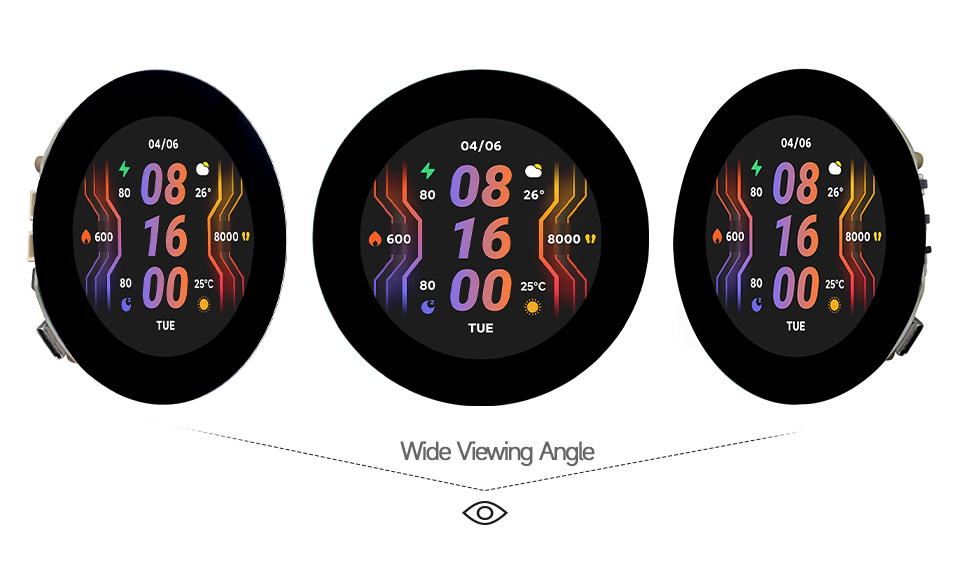

The integrated 2.1" round IPS display with a resolution of 480 x 480 px supports 65K colors and provides wide viewing angles. The capacitive touch panel with an I2C interface supports single-point touch input, enabling intuitive user interaction.


The board integrates multiple peripheral components, including a 6-axis IMU, an RTC chip, a TF card slot, a buzzer, and a 3.7 V lithium battery connector with charging support. Available communication interfaces include SPI, I2C, UART, ADC, PWM, and programmable PIO blocks. Programming is supported using C/C++, MicroPython, and the Arduino IDE, with USB mass storage mode available.

The 2.1B version is equipped with a 2.5D curved capacitive touch panel.

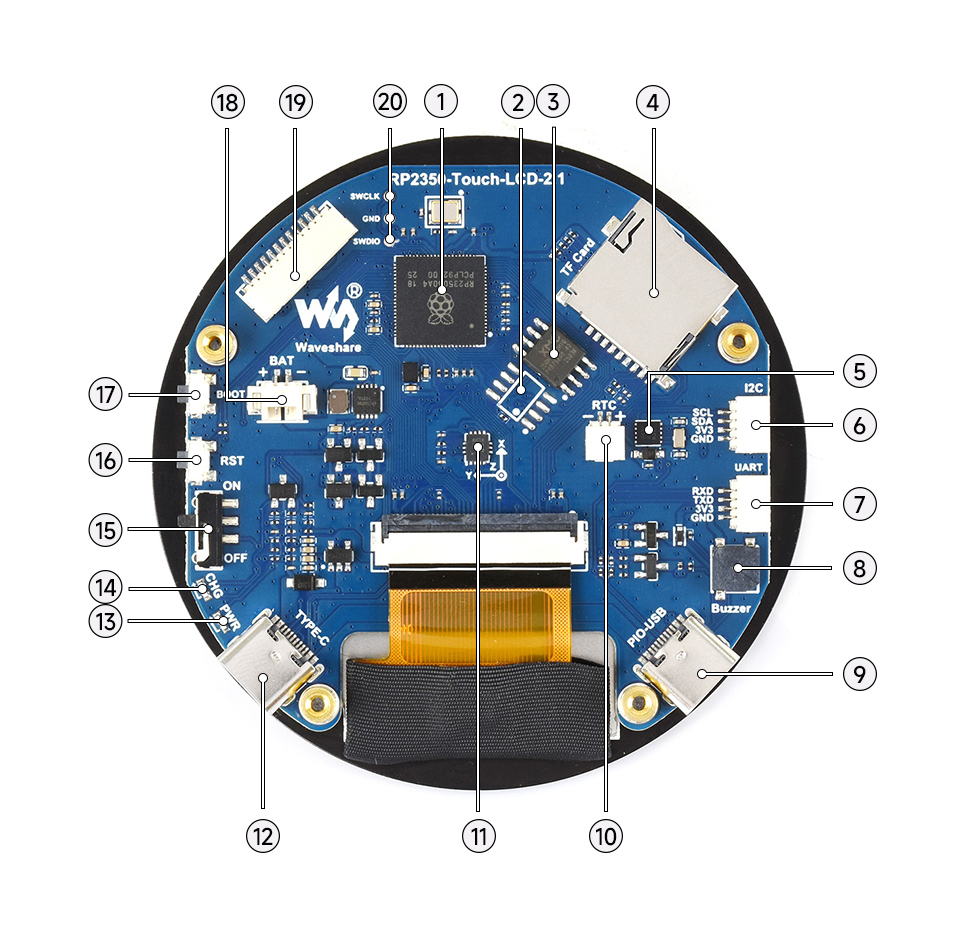

                                                                                                                    Controller board layout


  1. RP2350B - Dual-core and dual-architecture design, up to 150MHz operating frequency
  2. PSRAM chip solder pads - Compatible with mainstream PSRAM chips for user expansion (soldering required)
  3. 16MB Nor Flash
  4. TF card slot
  5. RTC chip - PCF85063 RTC chip
  6. 12C header - Connecting with internal chip, only supports the 12C peripherals and cannot be mapped to other functions
  7. UART header
  8. Buzzer
  9. PIO-USB port - USB host or device through PIO
  10. RTC Batt. header - for connecting rechargeable RTC Batt. (only supports rechargeable RTC Batt.)
  11. QMI8658 - 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  12. USB Type-C port - for programming, USB 1.1 with device and host support
  13. Power supply indicator
  14. Charging Indicator - When connecting the system Batt, lights up when charging, off when fully charged
  15. Batt. power supply control switch
  16. RESET button
  17. BOOT button - Press it when resetting to enter download mode
  18. System Batt. header - MX1.25 2PIN connector, for 3.7V Lithium Batt., supports charging and discharging
  19. 12PIN multi-functional pin header
  20. DEBUG interface

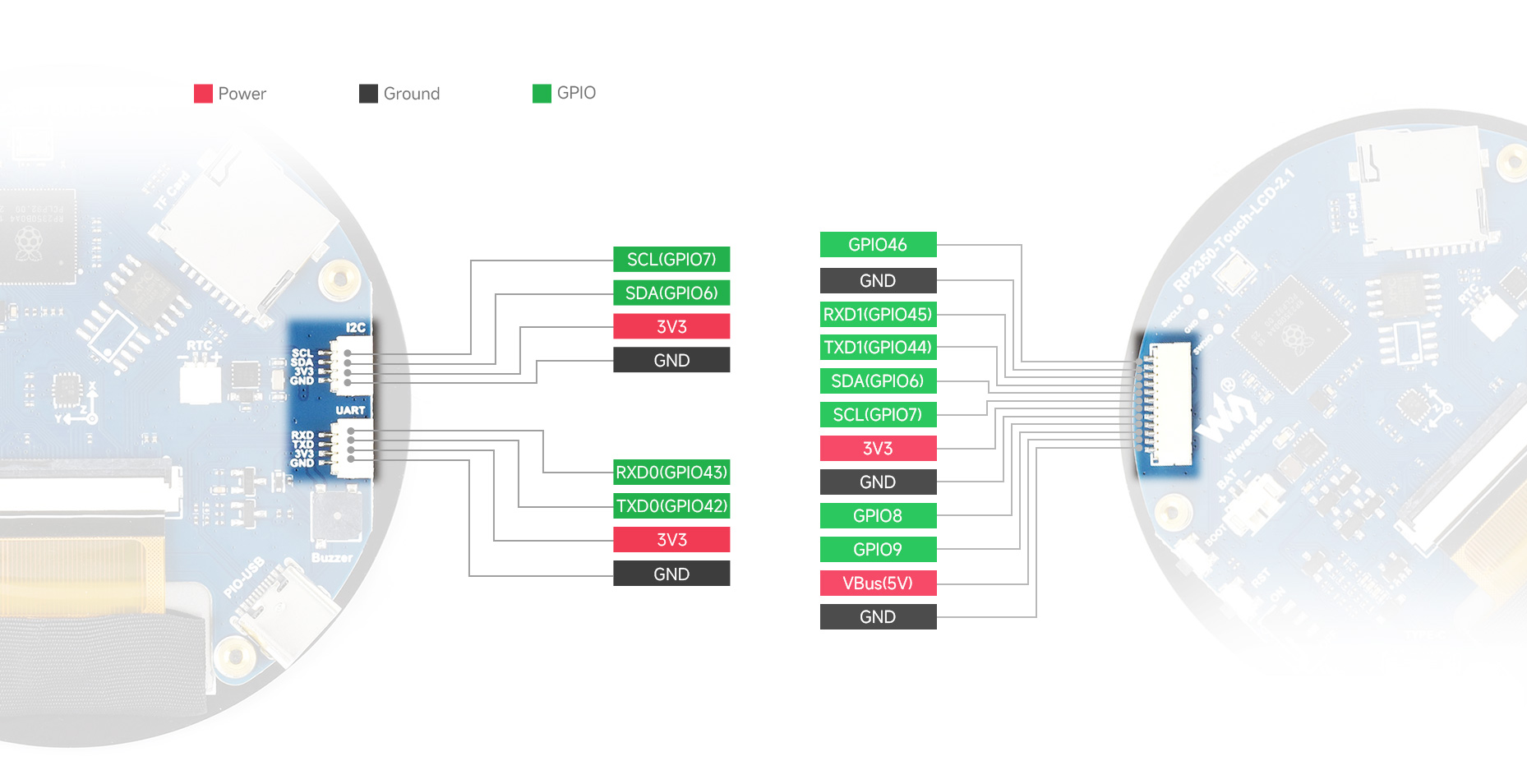

                                                                                                                              Pin definition


Features

  • Microcontroller: RP2350B
  • Architecture: dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V
  • Clock frequency: up to 150 MHz
  • SRAM: 520 kB
  • Flash memory: 16 MB
  • Display type: IPS
  • Display size: 2.1"
  • Resolution: 480 x 480 px
  • Number of colors: 65K
  • Display interface: SPI + RGB
  • Display controller: ST7701
  • Touch panel: capacitive
  • Touch interface: I2C
  • Touch controller: CST820
  • Touch panel type: 2.5D curved
  • Touch support: single-point
  • IMU: 6-axis (accelerometer + gyroscope)
  • RTC: PCF85063
  • Card slot: TF
  • Interfaces: 2 x SPI, 2 x I2C, 2 x UART
  • ADC: 5 x 12-bit
  • PWM: 9 channels
  • PIO: 12 state machines
  • USB: USB 1.1 device/host (Type-C)
  • GPIO: 9 multi-function pins
  • Power supply: USB Type-C or 3.7 V Li-Ion battery
  • Supported environments: C/C++, MicroPython, Arduino IDE

Kit includes

  • Waveshare RP2350-Touch-LCD-2.1B development board
  • SH1.0 12-pin cable ~100 mm
  • 2 x SH1.0 4-pin cable ~100 mm
1202677

Data sheet

Microcontroller
RP2350B
Flash memory
16 MB
Number of I/O
09
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes
Length
71,8 mm
Width
71,8 mm
USB connector type
USB type C
