ID: 1203781
zł485.94
Tax included

zł395.07 tax excl.

Educational kit with a 2.8" color TFT IPS display with a resolution of 320 × 240 px and adjustable backlight, ideal for game development, data visualization, and IoT projects. The device is based on the RP2350B microcontroller (2 × Arm Cortex-M33 250 MHz) with 520 KB SRAM, 16 MB QSPI Flash, and 8 MB PSRAM, and connectivity is provided by a Wi-Fi and Bluetooth module (CYW43439). A built-in 1000 mAh LiPo battery charged via USB-C guarantees mobile operation without a constant power supply. Five buttons, an I2C Qwiic/STEMMA QT connector, and MicroPython support make the kit a versatile platform for learning programming and STEM experiments. Pimoroni WARE005

4 weeks
On request
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

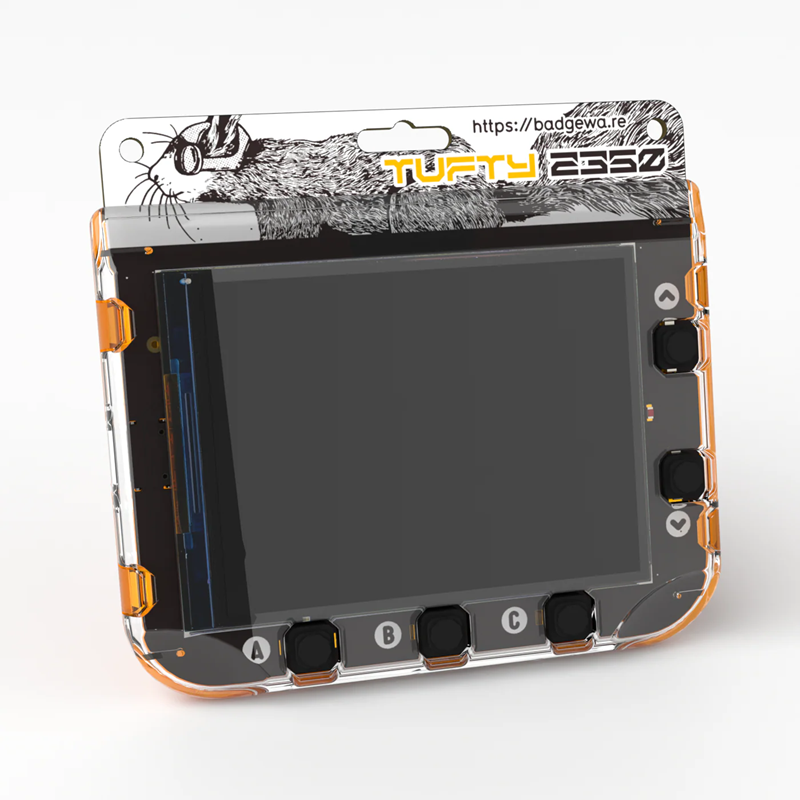

Badgeware Tufty STEM Kit is a smart, interactive educational device featuring a 2.8" full-color TFT IPS display, powered by the high-performance Raspberry Pi RP2350B microcontroller. The device combines the functionality of a wearable badge, an educational development platform, and a portable information panel. With a resolution of 320 × 240 pixels and adjustable backlight, the display is ideal for graphics, simple games, data visualizations, and sensor dashboards. The built-in 1000 mAh LiPo battery ensures mobility and convenient standalone operation without the need for constant external power. A durable, semi-transparent polycarbonate enclosure protects the electronics while giving the device a modern look.

At its core is the RP2350B – a dual-core Arm Cortex-M33 microcontroller running at 250 MHz with 520 KB SRAM, supported by 16 MB of QSPI Flash (XiP) and 8 MB of PSRAM. Wireless connectivity is handled by the Raspberry Pi RM2 (CYW43439) module with support for Wi-Fi 802.11 b/g/n and Bluetooth. Tufty 2350 is ready to use straight out of the box – no soldering or additional assembly required. It can be worn around the neck using the included lanyard or placed on a desk as a compact information display.

Five front user buttons allow intuitive control of applications and interfaces. Additional 4-zone mono LED backlighting enhances the enclosure with visual effects. The built-in I2C connector in the Qwiic/STEMMA QT standard enables quick and easy connection of expansion modules and sensors. The STEM Kit expands functionality with a controller and multi-sensor module, making it ideal for education and experimentation. Programming in MicroPython allows users to easily create custom applications and develop projects at various skill levels. It is an excellent solution for both beginners and experienced electronics makers.

Features

  • Display: 2.8" TFT IPS LCD, 320 × 240 px, full color, adjustable backlight
  • Light sensor: phototransistor
  • Microcontroller: RP2350B, dual Arm Cortex-M33 @ 250 MHz, 520 KB SRAM
  • Memory: 16 MB QSPI Flash (XiP), 8 MB PSRAM
  • Connectivity: Raspberry Pi RM2 (CYW43439), Wi-Fi 802.11 b/g/n, Bluetooth
  • Power supply: 1000 mAh LiPo battery
  • Charging IC: MCP73831 (455 mA)
  • Battery protection: XB6096I2S
  • RTC: PCF85063A
  • Enclosure backlight: 4-zone mono LED
  • Buttons: 5× user buttons, Reset/Sleep, Home/Boot
  • Connectors: USB-C (power & programming), I2C Qwiic/STEMMA QT, SWD debug
  • Programming: MicroPython
  • Enclosure: polycarbonate (orange back)
  • Dimensions: 84 × 76 × 20 mm

Kit includes

  • Tufty 2350 (with enclosure and lanyard)
  • Qw/ST Pad – I2C controller
  • Multi-Sensor Stick – environmental, light and motion sensor module
  • 2 × Qw/ST cable for module connection
1203781

Data sheet

Screen type
TFT
Diagonal (inch)
2,8
Resolution
320 x 240 px
Interface
WiFi/BT
Touch
No
