An interactive educational kit with a 39 x 26 LED matrix (872 diodes) capable of displaying animations, text, and pixel graphics. At the heart of the device is a dual-core RP2350A microcontroller (2 x Arm Cortex-M33 250 MHz) with 520 KB SRAM, 16 MB QSPI Flash, and 8 MB PSRAM. Connectivity is provided by a Wi-Fi and Bluetooth module (CYW43439). A built-in 1000 mAh LiPo battery charged via USB-C allows for mobile operation, while additional buttons and a RTC (Real Time Clock) enhance the device's functionality. Pimoroni WARE006

4 weeks
On request
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

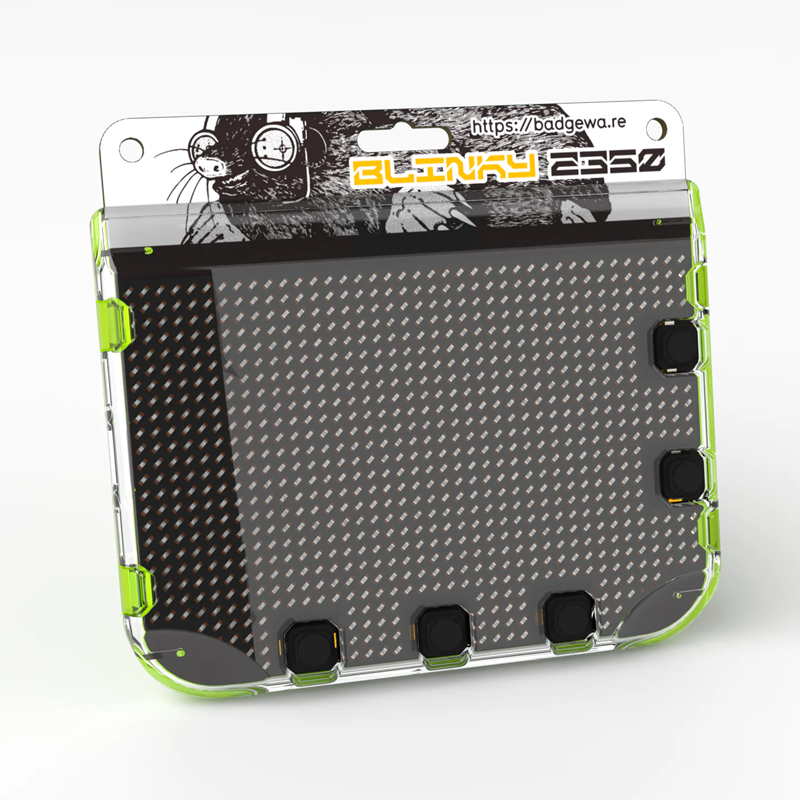

Badgeware Blinky STEM Kit is a smart, interactive educational kit featuring a bright white LED matrix display, powered by the Raspberry Pi RP2350 microcontroller. The Blinky 2350 model is equipped with a large matrix of 872 individually addressable white LEDs, enabling the display of animations, games, scrolling text, and pixel graphics. The device includes a built-in 1000 mAh LiPo battery and a durable, semi-transparent polycarbonate enclosure. It can be worn around the neck using the included lanyard or placed on a desk as an eye-catching display.

At its core is the RP2350A – a dual-core Arm Cortex-M33 microcontroller running at 250 MHz with 520 KB SRAM, supported by 16 MB of QSPI Flash (XiP) and 8 MB of PSRAM. Wireless connectivity is provided by the Raspberry Pi RM2 (CYW43439) module, supporting Wi-Fi 802.11 b/g/n and Bluetooth. The 39 × 26 LED matrix is driven by high-performance FM6047 constant-current drivers, ensuring precise brightness control. The badge features five user buttons, along with dedicated Reset/Sleep and Home/Boot buttons. An onboard PCF85063A real-time clock enables scheduled wake-up from sleep mode.

Charging is handled via a USB-C port, with the integrated MCP73831 charger IC ensuring safe battery charging. The STEM Kit extends functionality with the Qw/ST Pad (I2C controller) and a Multi-Sensor Stick for measuring environmental parameters, light, and motion. With support for MicroPython and the BadgeOS system, Blinky 2350 is an excellent platform for both beginners and advanced STEM makers. It is a versatile educational tool combining programming, electronics, and creative play in one compact device.

Features

  • Display: white LED matrix 39 × 26 (872 LEDs)
  • LED drivers: FM6047 constant-current drivers
  • Microcontroller: RP2350A (2× Arm Cortex-M33 @ 250 MHz)
  • Memory: 520 KB SRAM, 16 MB QSPI Flash (XiP), 8 MB PSRAM
  • Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth (RM2 / CYW43439)
  • Battery: 1000 mAh LiPo
  • Charging: USB-C, MCP73831 (455 mA)
  • Battery protection: XB6096I2S
  • RTC: PCF85063A
  • Enclosure backlight: 4-zone mono LED
  • Buttons: 5× user buttons, Reset/Sleep, Home/Boot
  • Connectors: USB-C, I2C (Qwiic/STEMMA QT – JST-SH), SWD debug
  • Programming: MicroPython
  • Enclosure: polycarbonate (green back)
  • Dimensions: 84 × 76 × 20 mm

Kit includes

  • Blinky 2350 (with enclosure and lanyard)
  • Qw/ST Pad – I2C controller
  • Multi-Sensor Stick
  • 2 × Qw/ST cables (JST-SH to JST-SH)
1203784

Data sheet

Microcontroller
RP2350
Flash memory
16 MB
Number of I/O
None
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
84 mm
Width
76 mm
USB connector type
USB type C
