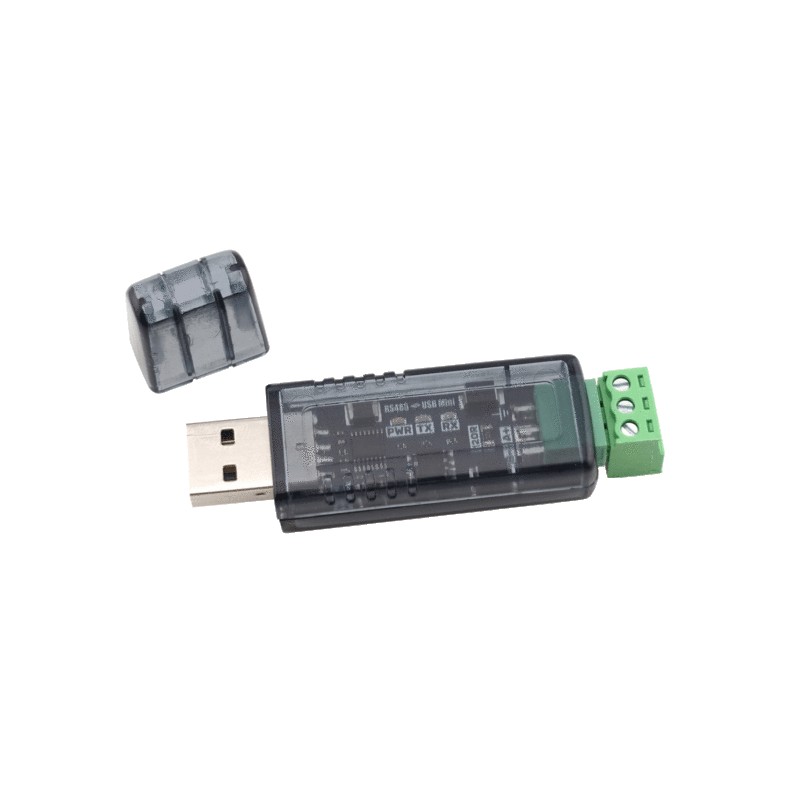

Main view
search
  • Main view
  • With Housing Cover Installed
  • Full set
ID: 1197097
5902186335844
zł18.55
Tax included

zł15.08 tax excl.

Miniature RS485 to USB converter designed for industrial applications, building automation systems, and control systems. The device is based on the CH9101R controller compliant with the USB 2.0 standard, offers data transmission speeds of up to 3 Mbps, and supports operation as a virtual COM port. Built-in surge protection, a 120 Ω termination resistor, and compact dimensions make the converter suitable for configuration, diagnostics, and communication with devices equipped with an RS485 interface. MODIG MD11002

Delivery date unknown
Out-of-Stock

Description

Industrial converter designed for bidirectional communication between an RS485 bus and a computer equipped with a USB port. The design is based on the CH9101R controller compliant with the USB 2.0 standard, providing stable half-duplex data transmission at speeds ranging from 300 bps to 3 Mbps. The device is suitable for building automation systems, Modbus networks, communication with inverters, energy meters, PLC controllers, and for commissioning and servicing industrial equipment.

The converter features advanced surge protection circuits that protect the communication interface against disturbances occurring in industrial environments. The integrated 120 Ω termination resistor enables proper RS485 bus matching, while three LED indicators provide information about power status and data transmission activity (PWR, TX, RX).

The device utilizes a USB-A connector and a Phoenix Contact MC 3.5 mm screw terminal with A, B, and GND connections. Support for CDC class drivers enables Plug and Play operation on systems equipped with built-in communication drivers, while VCP drivers allow the converter to function as a virtual COM port in applications using serial communication. The miniature enclosure measuring 48 × 20 × 13 mm allows convenient use in both permanent installations and service applications.

Features

  • Industrial RS485 to USB converter
  • USB-UART controller: WCH CH9101R
  • USB 2.0 interface
  • USB-A connector
  • RS485 half-duplex communication
  • Data rate from 300 bps to 3 Mbps
  • Virtual COM Port (VCP)
  • CDC class driver support
  • Plug and Play operation
  • Surge protection
  • Integrated 120 Ω bus termination resistor
  • LED indicators: PWR, TX, RX
  • Phoenix Contact MC 3.5 mm RS485 connector
  • RS485 connections: A, B, GND
  • Supports up to 64 devices on the RS485 bus
  • Operating temperature: -15°C to +70°C
  • Dimensions: 48 × 20 × 13 mm
