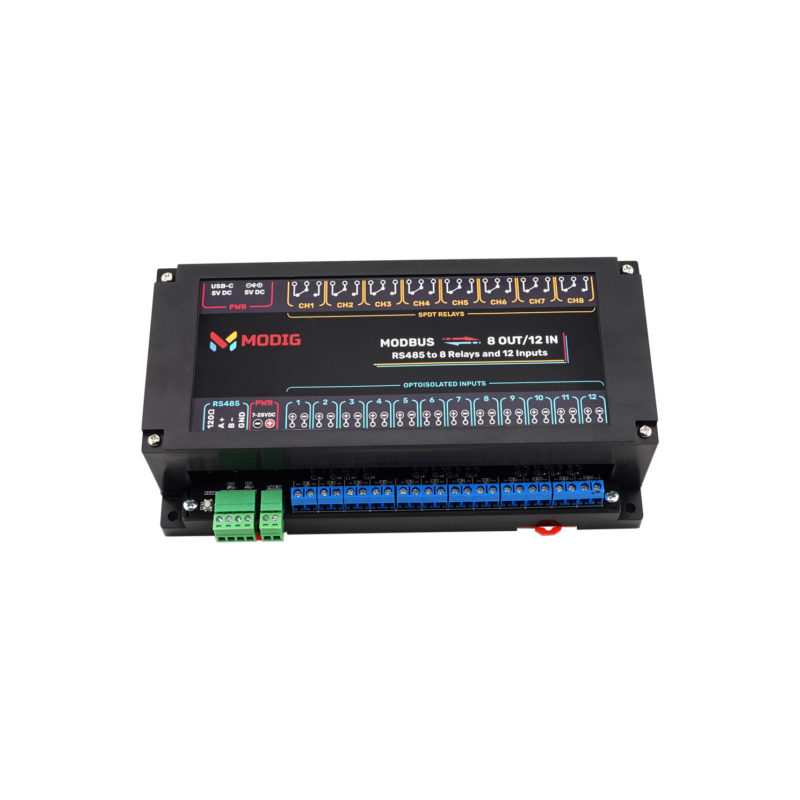

Main view
search
  • Main view
  • Main view (rotated)
  • Full set
ID: 1202167
5902186335813
zł154.46
Tax included

zł125.58 tax excl.

Module equipped with 8 SPDT electromagnetic relays and 12 opto-isolated digital inputs controlled via the RS485 bus using the Modbus RTU protocol. The device enables remote control of loads up to 10 A at 250 V AC or 30 V DC, offering a galvanically isolated RS485 interface, surge protection and DIN 35 mm rail mounting. Configurable communication parameters and flexible power supply options facilitate integration with industrial and building automation systems. MODIG MD20004

24h
Available
Available quantity: 80

Description

The module is designed for remote control of electrical devices and monitoring of digital signals using the Modbus RTU protocol transmitted via the RS485 bus. The design features 8 independent SPDT electromagnetic relays with NO/NC changeover contacts and 12 opto-isolated digital inputs, enabling control, automation, telemetry and monitoring functions in industrial installations, building automation systems and supervisory applications. Control of all outputs, input monitoring and device configuration are performed using standard Modbus commands.


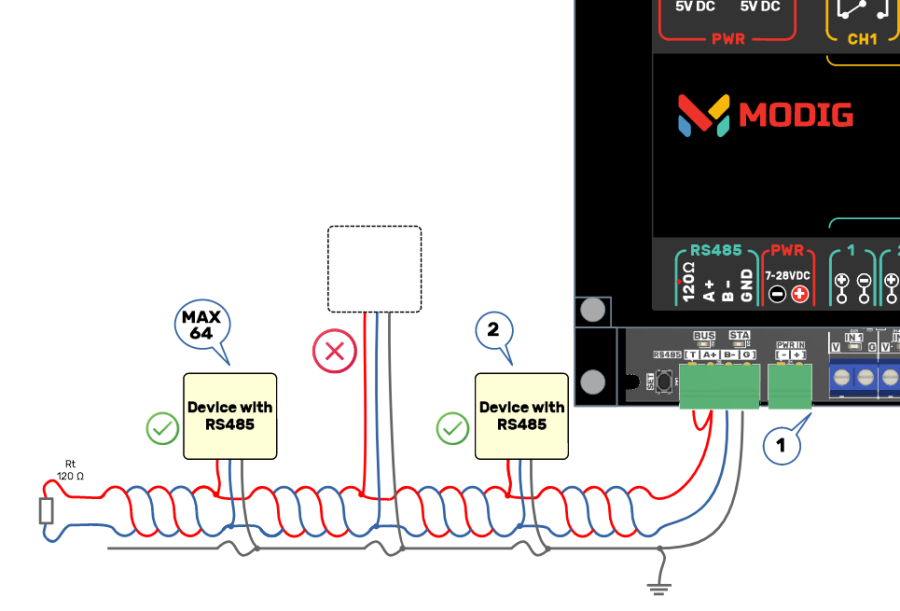

The RS485 interface is equipped with full galvanic isolation and surge protection, increasing resistance to interference commonly present in industrial environments. The device supports configurable transmission speeds from 1200 bps to 1 Mbps, parity settings and stop bit configuration, ensuring compatibility with various PLC controllers, HMI panels and SCADA systems.

The module is designed for DIN 35 mm rail mounting. It can be powered from a 5 V DC supply through a USB-C connector or a 2.1/5.5 mm DC jack, as well as from a 7-28 V DC industrial power supply through a Phoenix Contact MC 3.81 mm connector. Built-in supply voltage and internal temperature monitoring provide continuous diagnostics and operating condition supervision.

Features

  • 8 SPDT electromagnetic relays
  • 12 opto-isolated digital inputs
  • 8 independent output channels
  • 12 independent input channels
  • NO/NC changeover contacts
  • Contact rating: 10 A at 250 V AC
  • Contact rating: 10 A at 30 V DC
  • Input activation voltage range: 5.5-25 V DC
  • Input current consumption: approximately 2-12 mA
  • Control via RS485 and Modbus RTU
  • Full configuration through Modbus commands
  • RS485 interface with galvanic isolation
  • RS485 surge protection
  • Transmission speed from 1200 bps to 1 Mbps
  • Configurable parity: None, Even, Odd
  • Configurable stop bits: 1, 1.5, 2
  • Supply voltage measurement
  • Module temperature measurement
  • 5 V DC power supply via USB-C
  • 5 V DC power supply via 2.1/5.5 mm DC jack
  • 7-28 V DC power supply via Phoenix Contact MC 3.81 mm connector
  • DIN 35 mm rail mounting
  • Dimensions: 200 x 110 x 60 mm

Kit includes

  • MODIG Modbus RTU 8 OUT / 12 IN module
  • 5 V / 2 A power supply adapter
1202167

Data sheet

Output current
10A
Number of channels
20
Executive element
Przekaźnik elektromagnetyczny
Coil voltage
5 VDC
