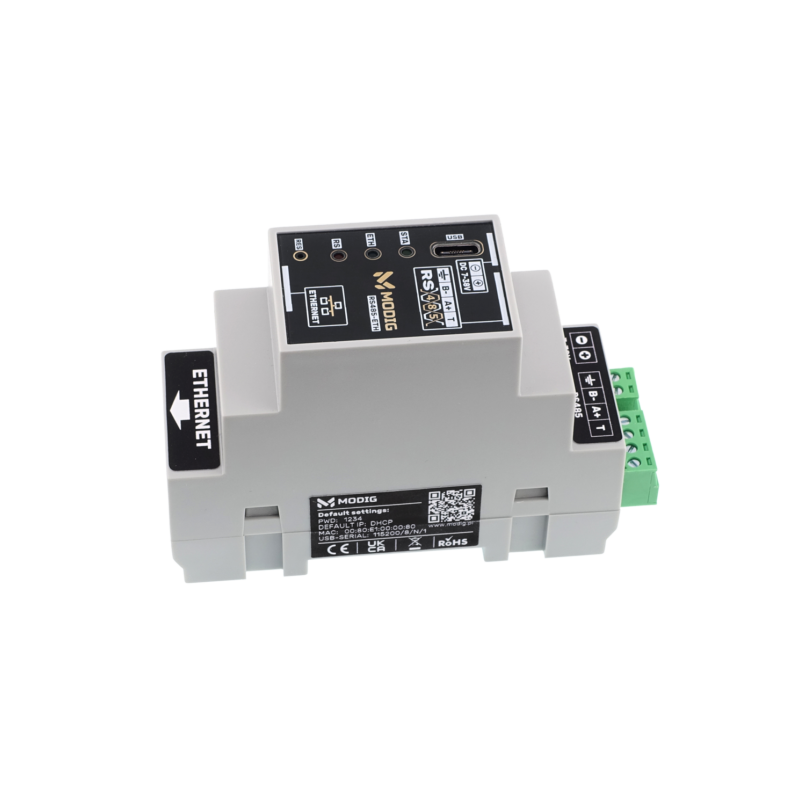

Industrial RS485 to Ethernet converter designed for installation on a 35 mm DIN rail. The device enables integration of RS485-based systems with Ethernet networks, offering data transmission up to 1 Mbps, TCP and UDP communication, 1 kV galvanic isolation, and configuration through a built-in web interface. The compact 35 mm wide enclosure allows convenient installation in control cabinets and electrical distribution panels. MODIG MD12002

24h
Available
Available quantity: 64

Description

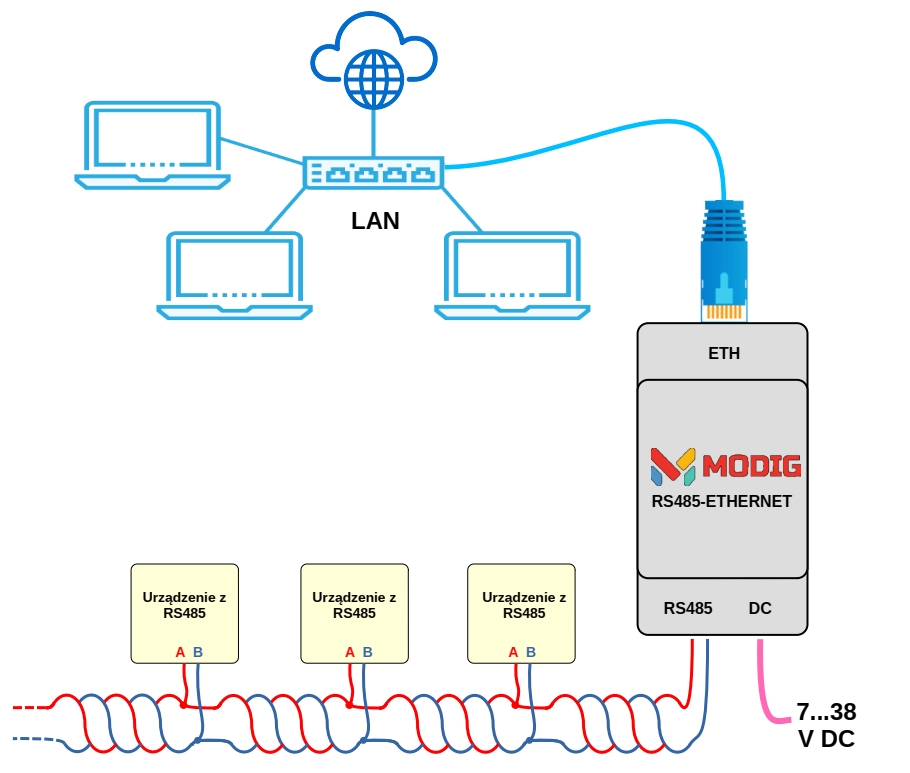

Industrial converter designed for bidirectional data transmission between an RS485 bus and an Ethernet network. The design enables integration of PLC controllers, telemetry devices, measurement systems, building automation equipment, and industrial devices using RS485 communication with Ethernet-based network infrastructure. Communication is provided through a 10/100 Mbps Full Duplex RJ45 interface with support for TCP and UDP protocols.


The RS485 interface features full 1 kV galvanic isolation, surge protection, and a configurable 120 Ω termination resistor. The device supports half-duplex communication at speeds ranging from 200 bps to 1 Mbps, allowing connection of up to 64 devices on a single RS485 bus. The built-in data conversion mechanism enables transparent transmission of RS485 frames over Ethernet, including fragmentation support for data packets up to 4096 bytes.

The converter is equipped with a Phoenix Contact MC 3.81 mm screw terminal with A+, B-, GND, and TERM connections, an RJ45 port, and a USB-C interface used for diagnostics, configuration, and firmware updates. Configuration is performed through a password-protected web interface that allows network parameter setup and real-time device monitoring. The enclosure is designed for DIN rail mounting and, together with the wide 7-38 V DC input voltage range, simplifies integration into industrial control systems.

Features

  • Industrial RS485 to Ethernet converter
  • DIN rail mounting (TH-35 / TS-35)
  • 10/100 Mbps Full Duplex Ethernet interface
  • RJ45 port
  • IPv4 protocol support
  • Static IP address or DHCP
  • Configurable MAC address
  • Operating modes: TCP Server, TCP Client, UDP, UDP Broadcast
  • RS485 interface on Phoenix Contact MC 3.81 mm connector
  • RS485 connections: A+, B-, GND, TERM
  • RS485 half-duplex communication
  • RS485 data rate from 200 bps to 1 Mbps
  • Supports up to 64 devices on the RS485 bus
  • 1 kV galvanic isolation
  • Surge protection for the RS485 interface
  • Configurable 120 Ω termination resistor
  • Maximum RS485 frame size: 4096 bytes
  • Configuration through built-in web interface
  • Real-time diagnostics via USB or web interface
  • Firmware updates via USB
  • USB-C port for diagnostics and configuration
  • Main power supply: 7-38 V DC
  • Optional power supply via USB-C
  • LED status and communication indicators
  • Operating temperature: -20°C to +50°C
  • Dimensions: 90 × 35 × 65 mm

Kit includes

  • MODIG RS485-ETHERNET DIN converter
  • USB-A to USB-C cable
