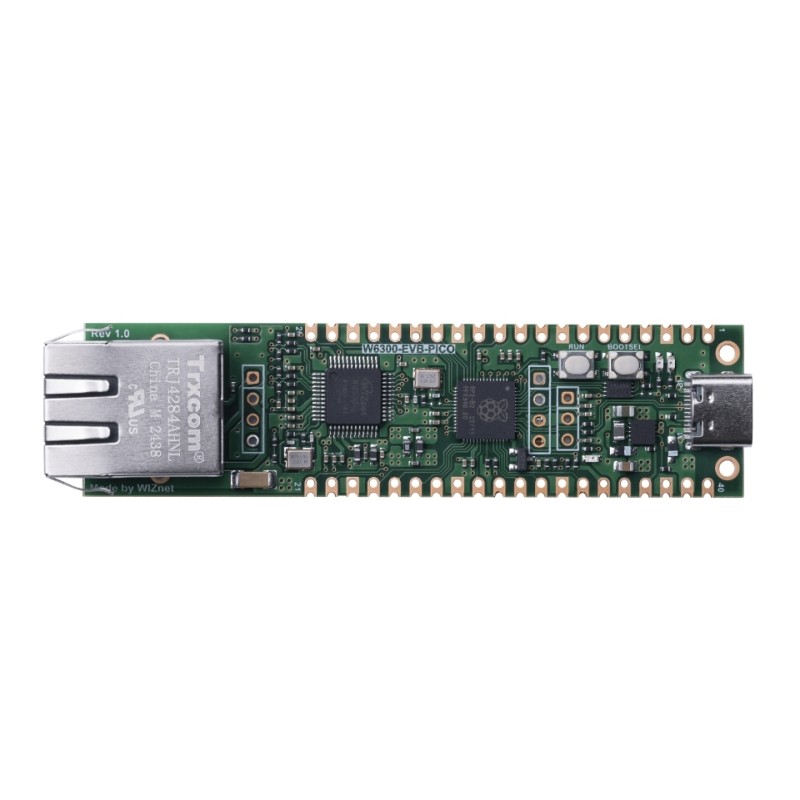

Development board based on the RP2040 microcontroller combines a dual-core Arm Cortex-M0+ processor with the W6300 Ethernet controller featuring a hardware TCP/IP stack and native IPv4/IPv6 support. The board maintains compatibility with Raspberry Pi Pico while adding a 10/100 Mb/s Ethernet interface with an RJ45 connector and optional Power over Ethernet support using the WIZPoE-P1 module. It is designed for IoT applications, industrial automation, network communication systems, and embedded devices requiring reliable wired Ethernet connectivity. WIZnet W6300-EVB-Pico

24h
Available
Available quantity: 20
Kamami is the official distributor of WIZnet network modules for Raspberry Pi Pico. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The WIZnet W6300-EVB-Pico development board is designed for projects requiring wired Ethernet communication and the capabilities of the RP2040 microcontroller. The hardware combines a dual-core Arm Cortex-M0+ processor running at up to 133 MHz with the W6300 Ethernet controller featuring a hardware TCP/IP stack. The board maintains mechanical compatibility and most of the Raspberry Pi Pico pinout, allowing the use of existing accessories and software libraries. It is equipped with a USB Type-C connector, an RJ45 Ethernet port with an integrated Ethernet PHY, and dual 20-pin GPIO headers.

W6300 Ethernet controller with hardware IPv4 and IPv6 support

The W6300 controller processes network protocols in hardware, reducing the workload of the microcontroller during Ethernet communication. It supports TCP, UDP, IPv4, IPv6, ICMPv4, ICMPv6, ARP, IGMP, MLDv1, and PPPoE protocols, provides eight simultaneous hardware sockets, and includes 64 kB of memory dedicated to TX/RX buffers. The integrated 10/100 Mb/s Ethernet interface supports Auto Negotiation, Auto-MDIX, and both Full and Half Duplex operating modes, ensuring efficient network communication for IoT applications and embedded systems.


The board can be expanded with the optional dedicated WIZPoE-P1 PoE module, enabling power delivery through the Ethernet cable in accordance with the IEEE 802.3af standard.


RP2040 microcontroller compatible with Raspberry Pi Pico

The RP2040 microcontroller features dual Arm Cortex-M0+ cores running at up to 133 MHz, 264 kB of SRAM, and 2 MB of Flash memory. The device provides two Programmable I/O (PIO) blocks, UART, I²C, SPI, PWM interfaces, and a 12-bit ADC. Compatibility with Raspberry Pi Pico simplifies migration of existing projects while allowing the use of compatible expansion boards, software libraries, and development tools.

The manufacturer provides comprehensive technical documentation, schematics, pinout diagrams, 3D models, and example projects for C/C++, Ethernet, FreeRTOS, AWS IoT Core, and Microsoft Azure, making it easier to start developing applications with the board.

Features

  • RP2040 microcontroller
  • Dual-core Arm Cortex-M0+ processor up to 133 MHz
  • 2 MB Flash memory
  • 264 kB SRAM
  • W6300 Ethernet controller
  • Hardware TCP/IP stack
  • IPv4 and IPv6 support
  • TCP, UDP, ICMPv4, ICMPv6, ARP, IGMP, MLDv1, and PPPoE protocol support
  • Support for 8 independent hardware sockets
  • 64 kB TX/RX buffer memory
  • 10/100 Mb/s Ethernet interface
  • RJ45 connector with integrated Ethernet PHY
  • Auto Negotiation support
  • Auto-MDIX support
  • Full and Half Duplex operation
  • 26 GPIO pins
  • Four 12-bit 500 kS/s ADC inputs
  • 2 × UART
  • 2 × I²C
  • 2 × SPI
  • 16 PWM channels
  • 2 PIO blocks with 8 state machines
  • USB Type-C interface for power and programming
  • SWD debugging interface
  • Raspberry Pi Pico compatible
  • C/C++ support
  • FreeRTOS support
  • Arduino IDE support
  • MicroPython support
  • CircuitPython support
  • Optional PoE support via the WIZPoE-P1 module
  • AWS IoT Core Qualified
1207152

Data sheet

Microcontroller
RP2040
Flash memory
2 MB
Number of I/O
26
Ethernet
100Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
51mm
Width
21 mm
USB connector type
USB type C

Manufacturer

  • BTC Korporacja sp. z o. o.
  • Ludwinowo Zegrzyńskie 52G
  • 05-140 Ludwinowo Zegrzyńskie
  • Poland
  • [email protected]
  • 22 767 36 20

Responsible person

  • BTC Korporacja sp. z o. o.
  • Ludwinowo Zegrzyńskie 52G
  • 05-140 Ludwinowo Zegrzyńskie
  • Poland
  • [email protected]
  • 22 767 36 20
