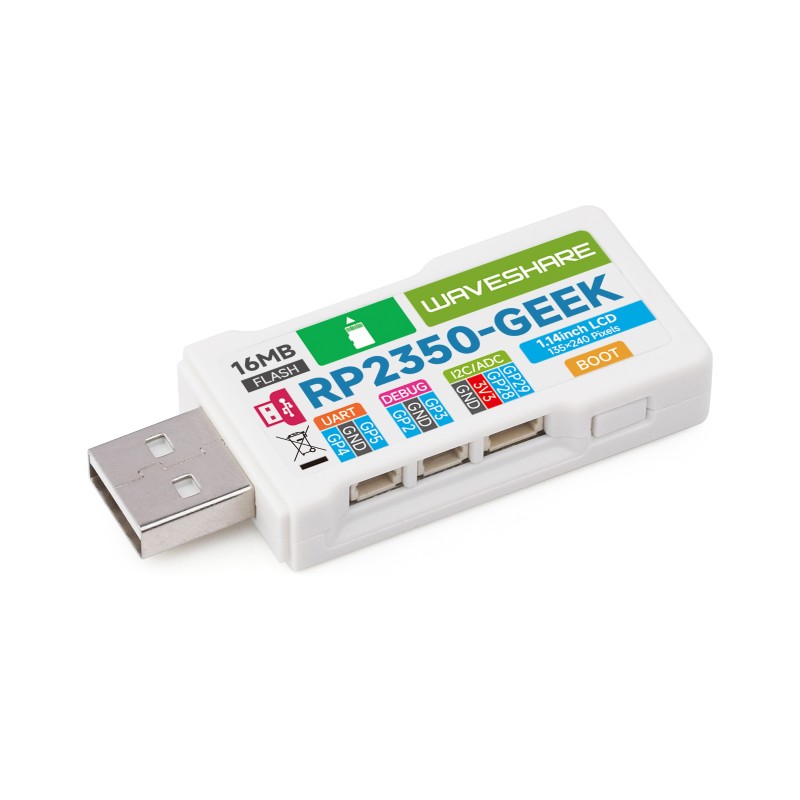

RP2350-GEEK development board with 240×135 display in enclosure - Waveshare 29330
ID: 1197488
5902186307414
zł48.45
Tax included
zł39.39 tax excl.
RP2350-GEEK is an advanced diagnostic and development platform for electronics designers. It enables convenient debugging of ARM microcontrollers, testing of I2C and UART peripherals, and data visualization on a color display. Thanks to its compact enclosure and set of interfaces, it is an excellent tool for learning, prototyping, and embedded project development.
Description
The RP2350-GEEK is a development board designed for electronics enthusiasts, featuring the RP2350 microcontroller and numerous peripheral interfaces. It includes a 1.14" color IPS display, microSD card slot, SWD, UART, and I2C ports, as well as a USB Type-A interface. The board comes in a white plastic enclosure and enables debugging and testing of external devices according to the Raspberry Pi Debug Connector Specification.
Features
- Microcontroller: RP2350 (dual-core ARM Cortex-M33 + RISC-V)
- Display: 1.14" IPS LCD, 240×135 pixels, 65K colors
- Interfaces:
- SWD (3PIN) – CMSIS-DAP compatible
- UART (3PIN) – USB-UART bridge
- I2C (4PIN) – for external devices
- TF slot – microSD card support via SDIO/SPI
- Flash: 16MB NOR-Flash (W25Q128JVSIQ)
- Power and communication: USB Type-A
- BOOT button for entering programming mode
- Plastic enclosure and cables included
- Open-source software, compatible with OpenOCD
- Intended for ARM microcontroller debugging and peripheral device testing
Included
- RP2350-GEEK with enclosure x1
- Cable set x1
1197488
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- None
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 61 mm
- Width
- Other
- USB connector type
- USB type A
