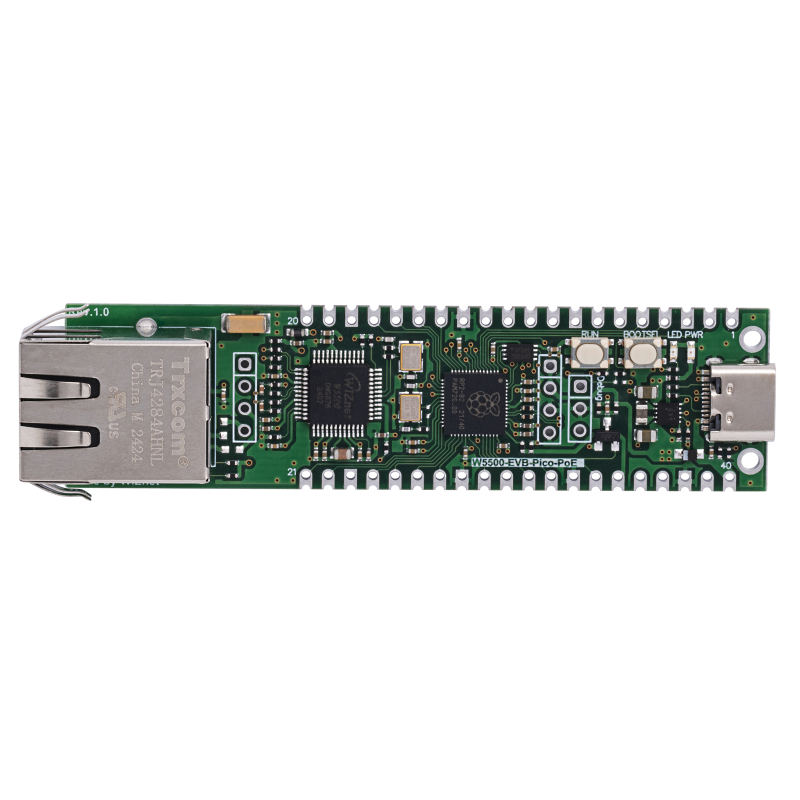

This RP2040-based evaluation board features an embedded W5500 Ethernet controller, providing hardware-based TCP/IP support without burdening the microcontroller. Its compact design, PoE support, and Raspberry Pi Pico-compatible interfaces make it ideal for IoT, automation, and networking projects. WIZnet W5500-EVB-Pico-POE

24h
Available
Available quantity: 23
Kamami is the official distributor of WIZnet network modules for Raspberry Pi Pico. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The W5500-EVB-Pico-PoE is a compact and efficient evaluation board combining the computing power of the RP2040 microcontroller with the functionality of the hardware network controller W5500. The device is based on the well-known architecture of the Raspberry Pi Pico, but additionally offers support for 10/100 Mbps Ethernet via an integrated RJ45 connector and full hardware TCP/IP stack implementation. This enables the creation of advanced network and IoT applications without burdening the main processor. The board is equipped with a dual-core ARM Cortex-M0+ processor running at up to 133 MHz, 2 MB Flash memory, and 264 kB SRAM, providing great flexibility for application design. The built-in USB Type-C connector allows powering and programming the device. The W5500 chip supports up to 8 independent hardware sockets, making it ideal for communication and server applications.


The device supports a range of communication interfaces, including UART, I2C, SPI, PWM, and ADC. The connector follows the standard 40-pin format, facilitating integration with existing Raspberry Pi Pico-based projects. Thanks to features such as PIO, interface emulation, and real-time clocks, the W5500-EVB-Pico-PoE is an excellent solution for creating distributed embedded systems, home automation, and low-power network applications.

Features

  • Microcontroller: RP2040 with dual ARM Cortex-M0+ cores (up to 133 MHz)
  • Memory: 2 MB Flash (XIP), 264 kB SRAM
  • Built-in Ethernet controller: W5500 supporting TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Support for 8 independent hardware sockets (SOCKET)
  • Buffer memory: 32 KB TX/RX
  • Interfaces: 2× UART, 2× I2C, 2× SPI, 16× PWM, 12-bit ADC 500 ksps
  • 2× PIO blocks (8 state machines)
  • USB-C port – power and programming
  • Built-in RJ45 connector with PHY 10/100 Mbps, Auto Negotiation
  • Full / Half Duplex output
  • Standard 40-pin GPIO layout (DIP 21x51 mm) with castellated holes
  • I/O voltage: 1.8 – 3.3V (default 3.3V)
  • Debug connector: 3-pin SWD (ARM Serial Wire Debug)
  • Built-in LDO regulator
  • Dimensions: 81 × 21 mm
1197284

Data sheet

Microcontroller
RP2040
Flash memory
2 MB
Number of I/O
30
Ethernet
100Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
81 mm
Width
21 mm
USB connector type
USB type C

Manufacturer
