Crowtail – 3-Axis Digital Accelerometer (±16g) is a digital MEMS accelerometer with a wide measurement range and high sensitivity, based on the ADXL345 chip. Intended for projects requiring motion, orientation, and acceleration detection in robotics, safety systems, and interactive devices.

Delivery date unknown
Out-of-Stock

Description

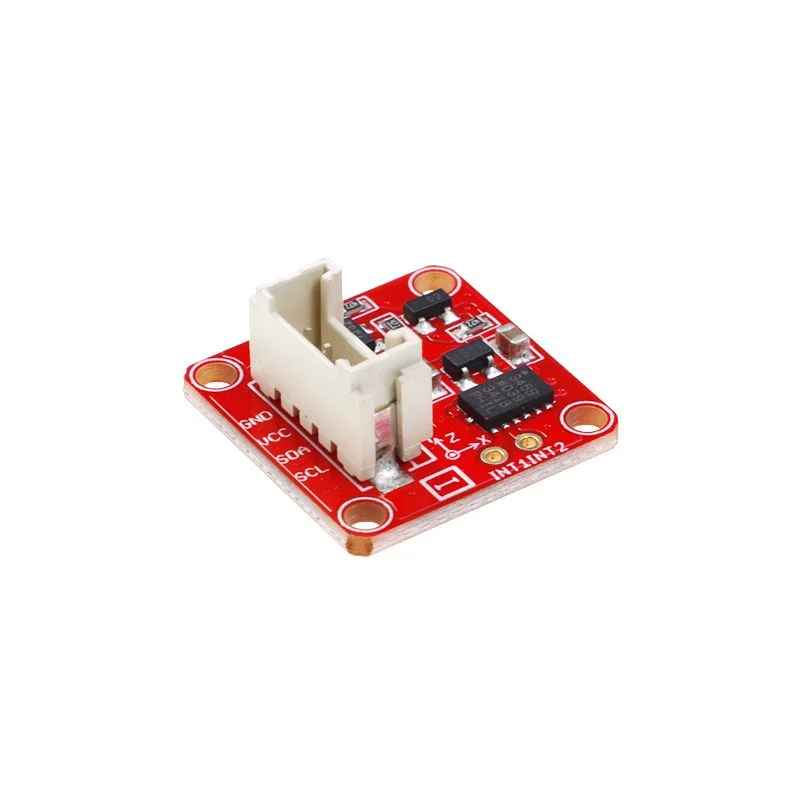

The Crowtail – 3-Axis Digital Accelerometer (±16g) module, based on the ADXL345 chip, is a precise digital MEMS accelerometer designed to measure acceleration on three axes. It supports a measurement range of up to ±16 g, offering high resolution of 3.9 mg/LSB at ±2 g and overload tolerance up to 10,000 g. With support for single and double tap detection, as well as orientation and motion detection features, the module is used in robotics, vehicles, game controllers, and safety systems. The Crowtail interface enables easy connection to microcontrollers via I2C or SPI.

Properties

  • Module supply voltage range: 3–5 V
  • ADXL345 operating voltage: 2–3.6 V
  • Communication interface: I2C or SPI
  • Measurement range: ±2/±4/±8/±16 g
  • Resolution: 3.9 mg/LSB at ±2 g
  • Overload tolerance: up to 10,000 g
  • Standby current consumption: 0.1 µA (typ. at 2.5 V)
  • Support for motion, orientation, and tap/double-tap detection
  • EMI resistance
  • Package: 14-pin LGA
  • Dimensions: 20.0 × 20.0 × 9.8 mm
