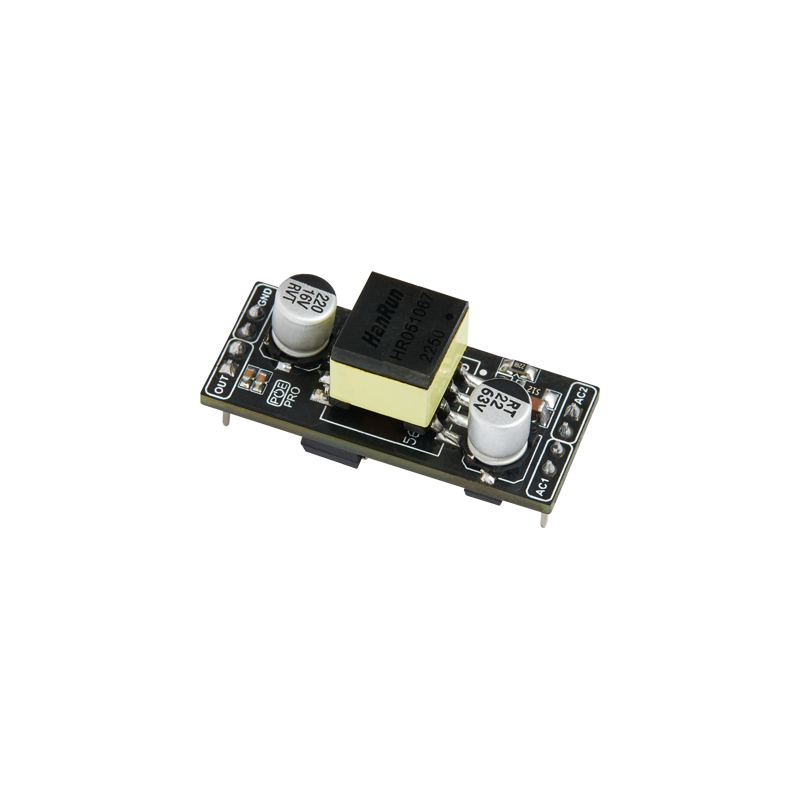

WIZPoE-P1 - PoE power module 5V
ID: 1197285
5902186306714
zł51.71
Tax included
zł42.04 tax excl.
This miniature IEEE802.3af-compliant PoE module provides 5V power to devices at up to 8W without the need for a separate power cable. It supports both end-span and mid-span modes, offering high efficiency, electrical isolation, and easy integration into IoT and embedded systems. WIZnet WIZPoE-P1
Description
WIZPoE-P1 is a compact and versatile Power over Ethernet (PoE) module designed to power external devices via an Ethernet cable. It supports both Mode A (Endspan) and Mode B (Midspan) configurations, providing flexibility for various networking applications. The module complies with the IEEE802.3af standard, allowing 5 V power to be delivered along with data, eliminating the need for separate power lines. Its small size makes it perfect for integration into compact IoT systems, industrial devices, and open-source projects.
The device offers high DC/DC conversion efficiency, minimizing power loss, and features electrical isolation to enhance safety and protect connected devices. Built-in 2-channel rectifiers simplify circuit design and reduce the number of required external components.
Features
- Compliance: IEEE802.3af (PoE)
- Operating modes: Mode A (Endspan) and Mode B (Midspan)
- Input voltage range: 40 V to 60 V DC
- Output voltage: 5V DC (range: 4.75V to 5.25V)
- Output power: up to 8 W
- High efficiency: effective DC/DC conversion
- Switching frequency: 280 – 320 kHz (typically 300 kHz)
- Galvanic isolation between input and output
- Dimensions: 38 x 16 mm
