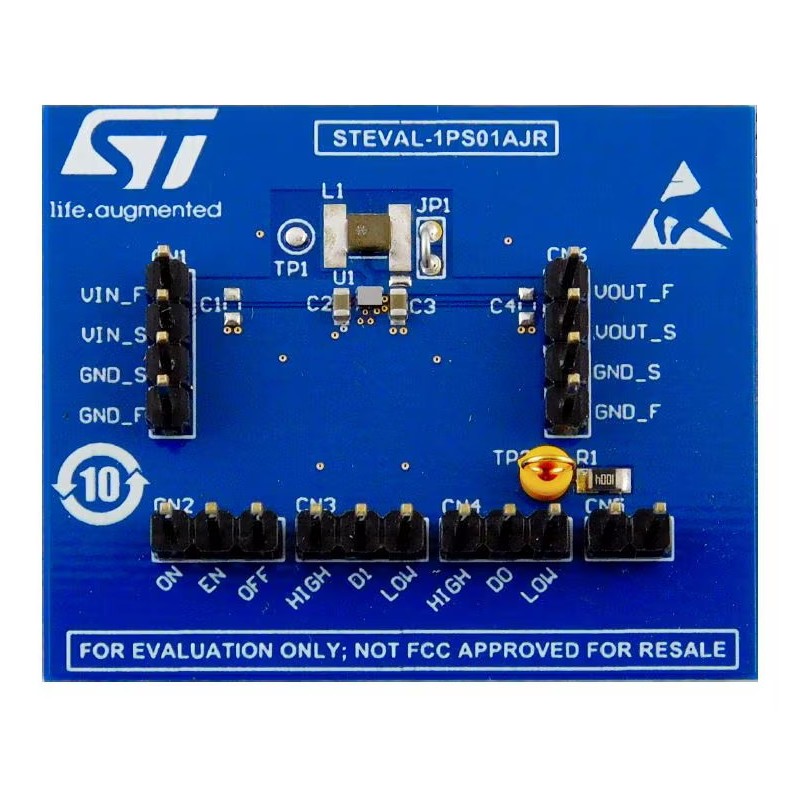

STEVAL-1PS01AJR – Evaluation board for the ST1PS01 step-down converter module
ID: 587973
5902186302808
zł92.90
Tax included
zł75.53 tax excl.
ST1PS01AJR evaluation module for testing the 1.9–2.8 V low-power step-down converter. STMicroelectronics STEVAL-1PS01AJR
Description
The STEVAL-1PS01AJR is a compact and efficient evaluation module based on the STMicroelectronics ST1PS01 step-down converter. The converter supplies up to 400 mA and provides a configurable output voltage in the 1.9 – 2.8 V range, selectable via two digital inputs (D0, D1).
The integrated converter operates over a wide input voltage range (1.8 – 5.5 V) and delivers a stable output with very low quiescent current (approx. 500 nA) and high efficiency (up to 94%). It includes advanced power management features such as PFM mode for light loads and integrates passive components on the board for simplified final design.
Features
- Input voltage range: 1.8 – 5.5 V
- Configurable output voltage: 1.9 – 2.8 V
- High efficiency up to 94%
- Output current: up to 400 mA
- Minimal external components: typically 2.2 µH inductor
- PFM and PWM operating modes
- Compact size and easy integration
- Ideal for portable, IoT, and wearable applications
