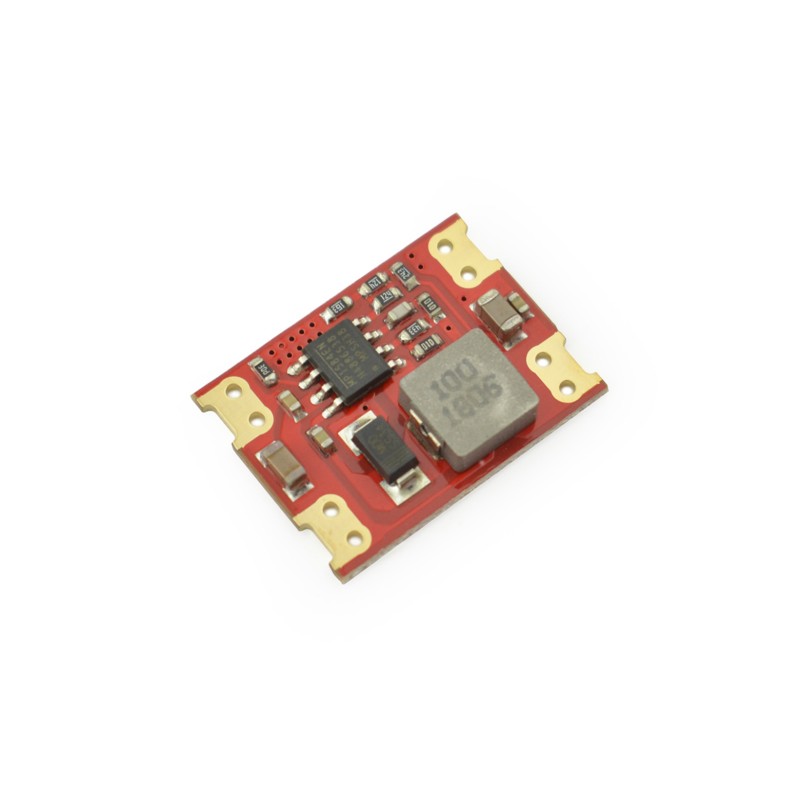

DC-DC Buck-Mode Power - DC-DC Step-Down Converter Module 5V/1.6A
ID: 1194357
5902186300552
zł16.78
Tax included
zł13.64 tax excl.
Buck-mode DC-DC power module that converts voltage from 8 V to 28 V to a stable 5 V at a maximum current of 1.6 A, providing high conversion efficiency. Thanks to its small size, stability and reliability, the module is perfect for DIY projects, mobile power supply construction and applications requiring precise, stable voltage. DFRobot DFR0571
Description
The DC-DC buck converter module is a compact, high-efficiency device designed to convert voltage from the range of 8 V to 28 V to a stable 5 V output with a maximum current of 1.6 A. With a switching frequency of up to 0.5 MHz, the module provides high conversion efficiency and is characterized by small dimensions, making it easy to integrate into various DIY projects. Its stable operation ensures a constant output voltage, making it ideal for applications where precision power supply is critical.
This module can be powered by high-capacity batteries, making it an excellent solution for building portable power supplies. It can also be integrated into various projects, offering multiple power supply options. Thanks to its stability, reliability, and long-term usability, it is an excellent choice for applications requiring stable power with minimal interference.
Features
- Input voltage: 8V to 28V DC
- Output voltage: 5V
- Output voltage accuracy: ±0.1V
- Maximum output current: 3A (peak)
- Output ripple at full load: Vpp<50mV
- No-load current: 0.5mA
- No shutdown function
- Operating temperature range: -20℃ to +85℃
- Working humidity: 20% to 90% (non-condensing)
- Storage temperature: -10℃ to +50℃
- Mounting method: chip or 2.54mm header
- Lifetime: 50,000 hours
- Dimensions: 16.5 × 22 mm
1194357
Data sheet
- Output voltage
- 5th
- Output current
- 1,6 A
- Converter type
- Step-down
- Supply voltage min
- 8 V
- Supply voltages max
- 28 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
