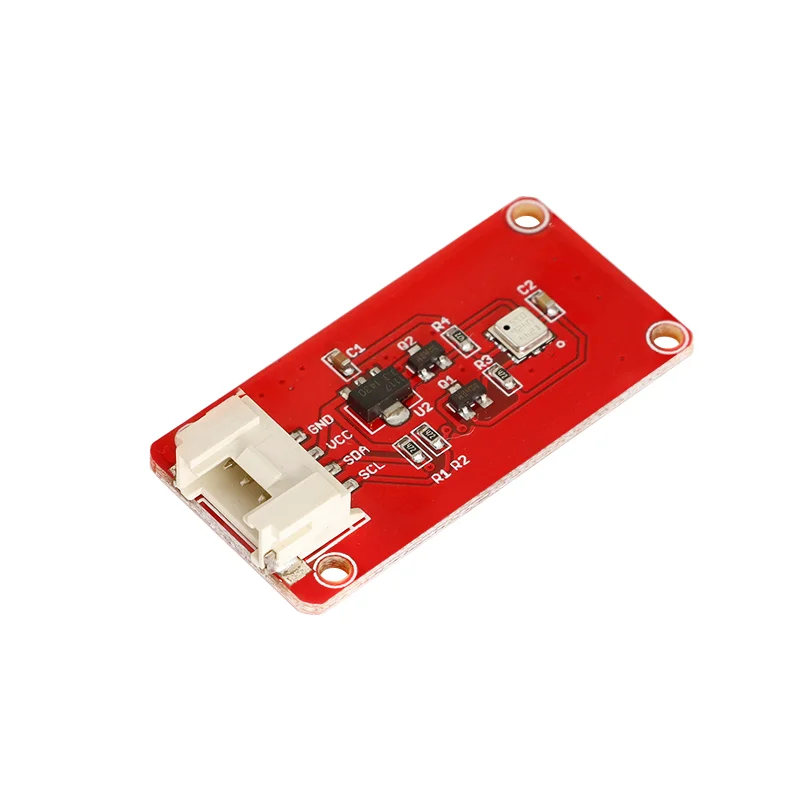

Crowtail – BMP180 Barometer – digital pressure and temperature sensor, 300–1100 hPa, I2C, 1.8–3.6 V
search
  • Crowtail – BMP180 Barometer – digital pressure and temperature sensor, 300–1100 hPa, I2C, 1.8–3.6 V
  • Crowtail – BMP180 Barometer – digital pressure and temperature sensor, 300–1100 hPa, I2C, 1.8–3.6 V
  • Crowtail – BMP180 Barometer – digital pressure and temperature sensor, 300–1100 hPa, I2C, 1.8–3.6 V
ID: 1201694
zł11.43
Tax included

zł9.29 tax excl.

Crowtail – BMP180 Barometer is a digital pressure and temperature sensor with an I2C interface, intended for precise measurements in mobile and environmental systems. It offers high accuracy, low power consumption, and readiness to operate without additional calibration.

Delivery date unknown
Out-of-Stock

Description

The Crowtail – BMP180 Barometer module is a digital atmospheric pressure and temperature sensor based on the BMP180 chip, which uses piezoresistive technology. It enables pressure measurement in the range of 300–1100 hPa with an accuracy of up to 0.02 hPa in advanced mode. The sensor is factory-calibrated, with calibration coefficients stored in ROM. Low power consumption, an I2C interface, and a compact design make it suitable for mobile environmental systems, weather stations, and consumer electronics. The built-in temperature sensor allows simultaneous monitoring of thermal conditions.

Properties

  • Supply voltage range: 1.8–3.6 V
  • Pressure measurement range: 300–1100 hPa
  • Pressure accuracy: up to 0.02 hPa (in advanced mode)
  • Integrated temperature sensor
  • Communication interface: I2C
  • Low power consumption and low measurement noise
  • Factory calibration with stored coefficients
  • Compact, low-profile housing

Included

  • Crowtail – BMP180 Barometer module x1
  • Crowtail 4-pin cable x1
1201694

Data sheet

Interface
I2C
Type of sensor
BMP180
Power supply voltage
1.8..3.6V
Sensor type
Pressures and temperatures
