ID: 581478
5902186314498
zł132.62
Tax included

zł107.82 tax excl.

Module with sensors of environmental parameters. It allows you to measure temperature, humidity and pressure as well as CO2 and VOC concentration. DFRobot SEN0335

24h
Available
Available quantity: 1
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

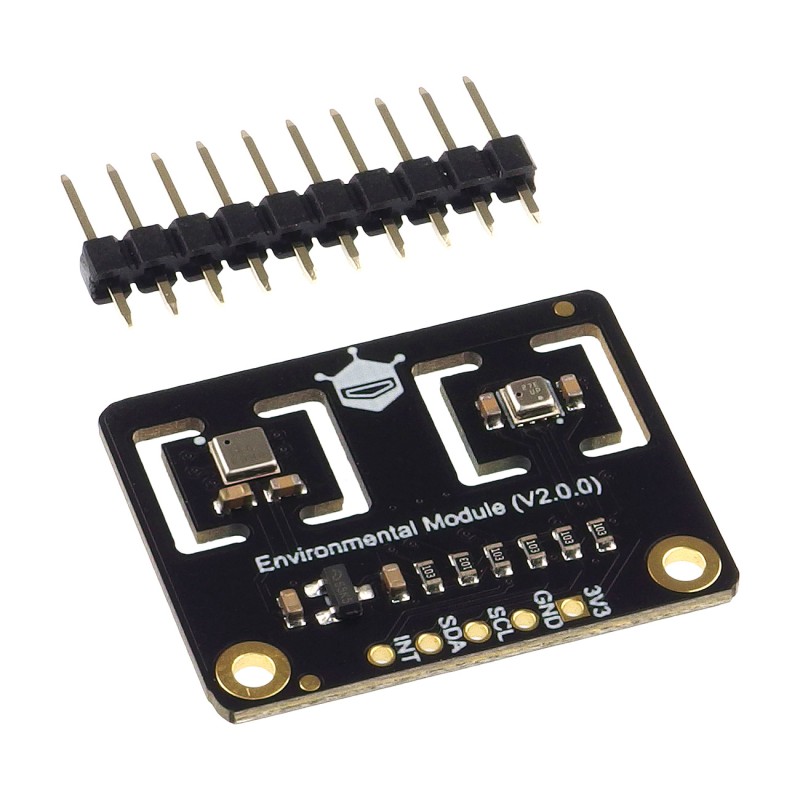

Module with sensors of environmental parameters and air quality CCS811 and BME280. It measures temperature, humidity and pressure (BME280) and the concentration of carbon dioxide (CO2) and volatile organic compounds (VOC) in the air (CCS811). The module communicates via the I2C interface. It can be widely used in many areas such as air quality detection, air purifiers and ventilation systems.

The user manual and sample programs can be found on the product Wiki page.

Features

  • CCS811
    • Time to first measurement: <15 s
    • Communication: I2C
    • I2C address: 0x5A (default) / 0x5B
    • ECO2 measuring range: 400ppm to 8000ppm
    • TVOC measurement range: 0ppb to 1100ppb
    • Voltage: 3.3 V to 5.5 V
    • Operating temperature range: -40 ℃ to 85 ℃
    • Operating humidity range: 10% RH to 95% RH
  • BME280
    • Communication: I2C
    • I2C address: 0x76 (default) / 0x77
    • Temperature measurement range: -40 ℃ to 85 ℃ (resolution 0.1 ℃, deviation ± 0.5 ℃)
    • Humidity measuring range: 0 to 100% RH (resolution 0.1% RH, deviation ± 2% RH)
    • Pressure measurement range: 300 to 1100 hPa
  • Voltage: 3.3 V to 5.5 V
  • Current consumption: <20mA
  • Dimensions: 20 x 28 mm

Kit contains

  • Module with CCS811 and BME280 environmental sensors
  • Straight 7-pin goldpin connector
581478

Data sheet

Interface
I2C
Type of sensor
CCS811
Power supply voltage
3,3 - 5 V
Concentration measurement
VOC/CO2
Sensor type
Ciśnienia atmosferycznego
