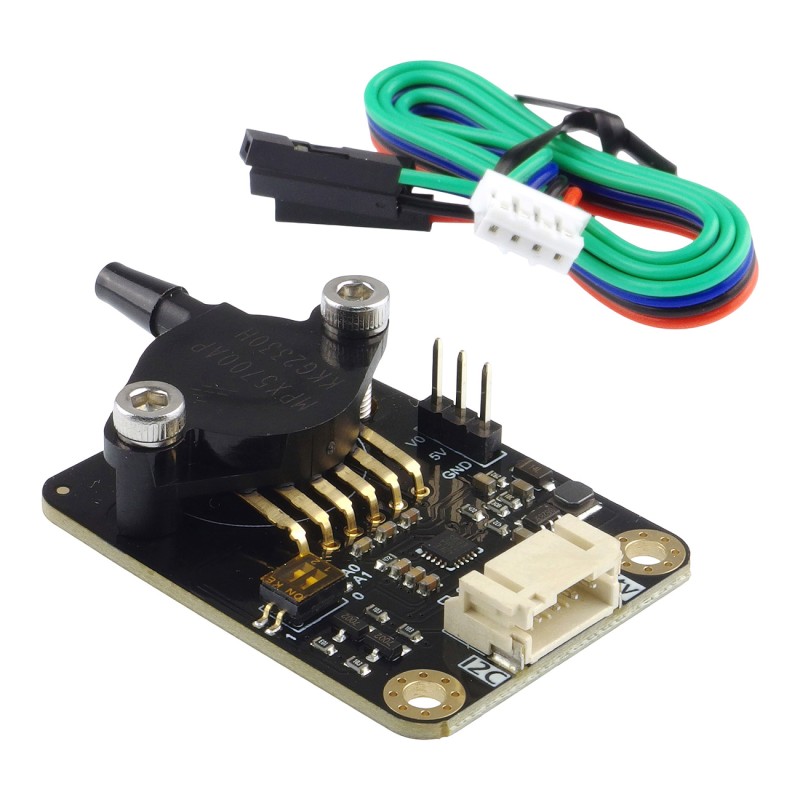

Gravity: Air Pressure Sensor - MPX5700AP air pressure sensor
ID: 1178453
5902186309968
zł331.66
Tax included
zł269.64 tax excl.
The MPX5700AP air pressure sensor with a measuring range from 15 to 700 kPa. It communicates via the I2C interface. DFRobot SEN0456
Description
The MPX5700AP air pressure sensor with a measuring range from 15 to 700 kPa. It allows for quick and accurate measurement of the pressure in the tube, e.g. during experiments. It has a built-in calibration function based on a known pressure value. It is supplied with the voltage from 3.3 to 5.5V and communicates via the I2C interface (Gravity connector). Full documentation is available on the product page.
Features
- Air pressure sensor
- Output signal: I2C interface
- Measuring range: 15 to 700 kPa
- Variation: ＜ 2.5%
- Resolution: ≤1kPa
- Voltage: 3.3 to 5.5 V DC
- Working temperature: 0 to 85 ℃
- Dimensions: 32 x 43 mm
Kit contains
- Gravity: Pressure sensor
- 4-pin Gravity cable
1178453
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Ciśnienia powietrza
